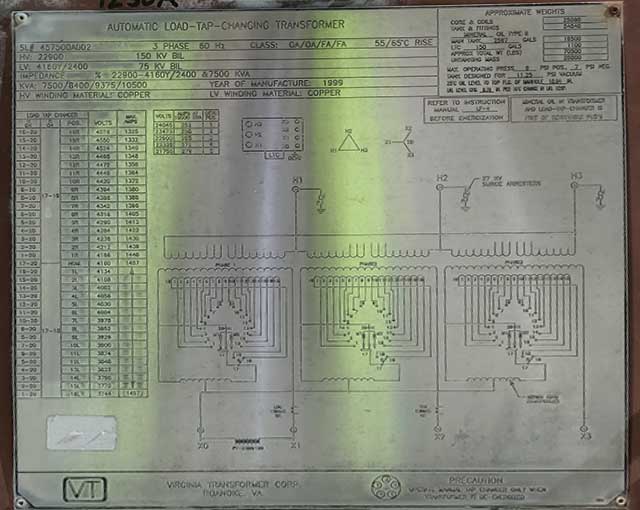

7.5/10.5 MVA, 22900D-4160Y/2400, LOAD TAP CHANGING TRANSFORMER BY VIRGINIA

T-6127

ONE (1) 7.5/10.5 MVA VIRGINIA LOAD TAP CHANGING SUBSTATION TRANSFORMER
3 PH, 60 HZ, 7.39% IMPEDANCE, OA/OA/FA/FA, 55/65
DEG C RISE, COPPER WINDINGS, WINDING TEMP GAUGE, LIQUID
LEVEL GAUGE, LIQUID TEMP GAUGE, DRAIN & SAMPLE VALVE, PRESSURE
RELEASE VALVE, PRESSURE GAUGE, LV TAP CHANGER

HV: 22900 DELTA BIL: 150 KV
LV: 4160Y/2400 BIL: 75 KV

HV TAPS: 24045-23473-22900-22328-21755
LV TAPS: 16 UP, 16 DOWN

CORE & COILS: 25060 LBS
TANK & FITT.: 24040 LBS
OIL: 20600 LBS (2647 GAL)
TOTAL WEIGHT: 70500 LBS

DIMS: 114"H x 124"W x 51"D

FAN PACKAGE AVAILABLE AT AN ADDITIONAL COST
