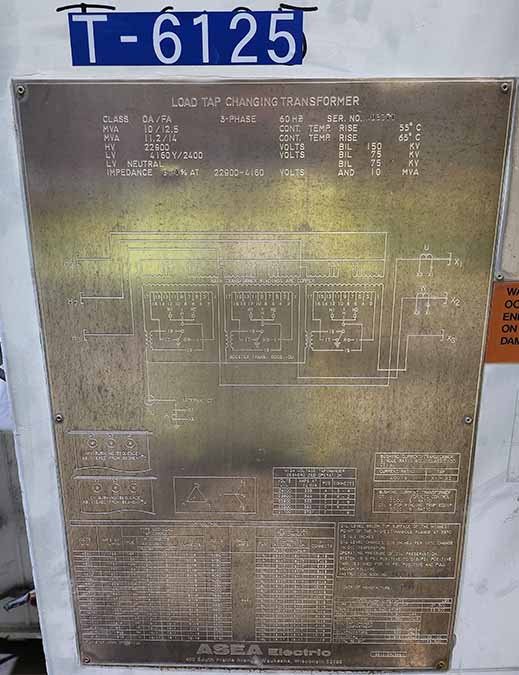

10/14 MVA, 22900-4160Y/2400 LOAD TAP CHANGING TRANSFORMER BY ASEA ELECTRIC

T-6125

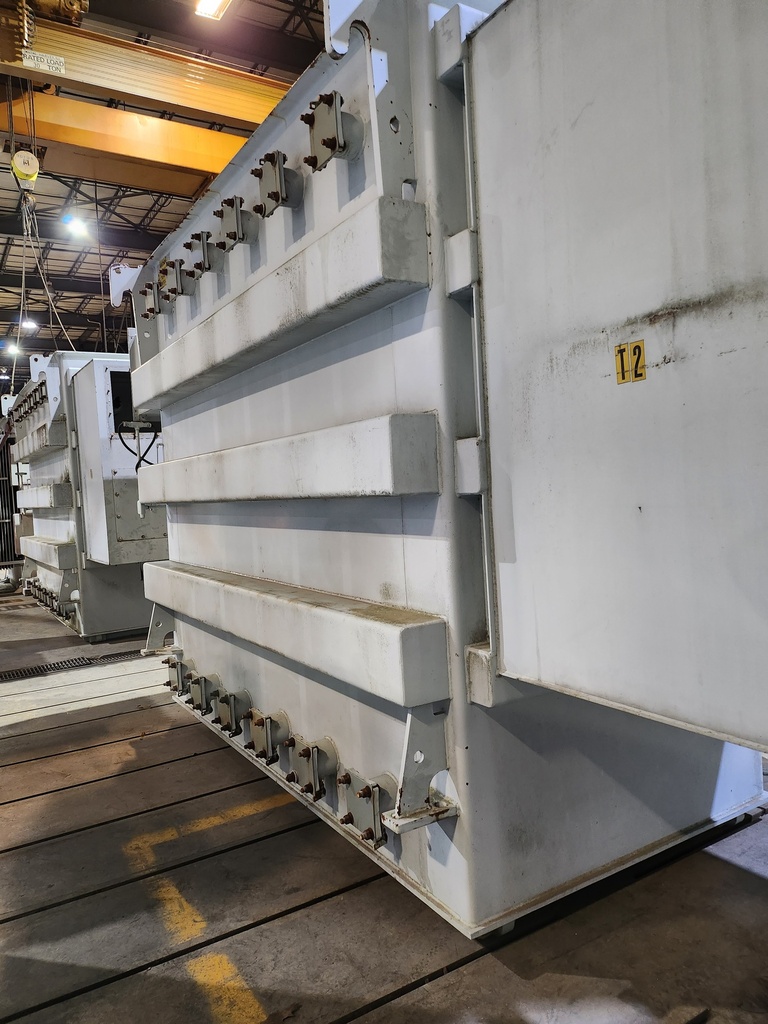

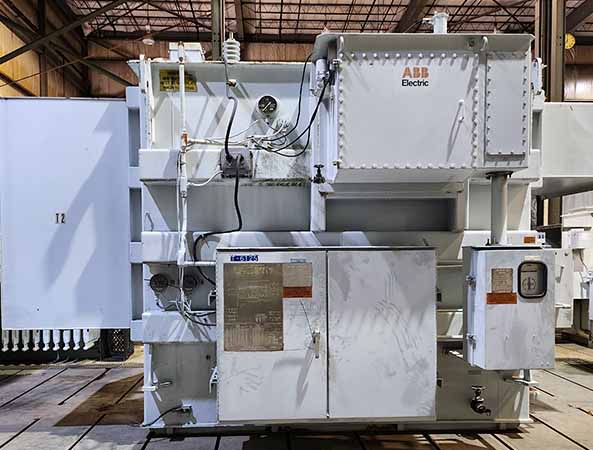

ONE (1) 10/14 MVA ASEA ELECTRIC LOAD TAP CHANGING SUBSTATION TRANSFORMER
3 PH, 60 HZ, 8.18% IMPEDANCE, OA/FA, 55 DEG C RISE,
COPPER WINDINGS, WINDING TEMP GAUGE, LIQUID TEMP GAUGE,
LIQUID LEVEL GAUGE, DRAIN & SAMPLE VALVE, PRESSURE RELEASE
VALVE, NITROGEN LEVEL GAUGE, LV TAP CHANGER, FULL LENGTH
HV ATC'S, HALF LENGTH LV ATC'S,

HV: 22900 DELTA BIL: 150 KV
LV: 4160Y/2400 BIL: 75 KV (LV NUETRAL BIL: 75 KV)

HV TAPS: 24100-23600-22900-22300-21700
LV TAPS: 16 UP, 16 DOWN

CORE & COILS: 27600 LBS
TANK & FITT.: 23900 LBS
OIL: 22100 LBS (2945 GAL)
TOTAL WEIGHT: 73600 LBS

DIMS: COMING SHORTLY

FAN PACKAGE AVAILABLE AT ADDITIONAL COST
