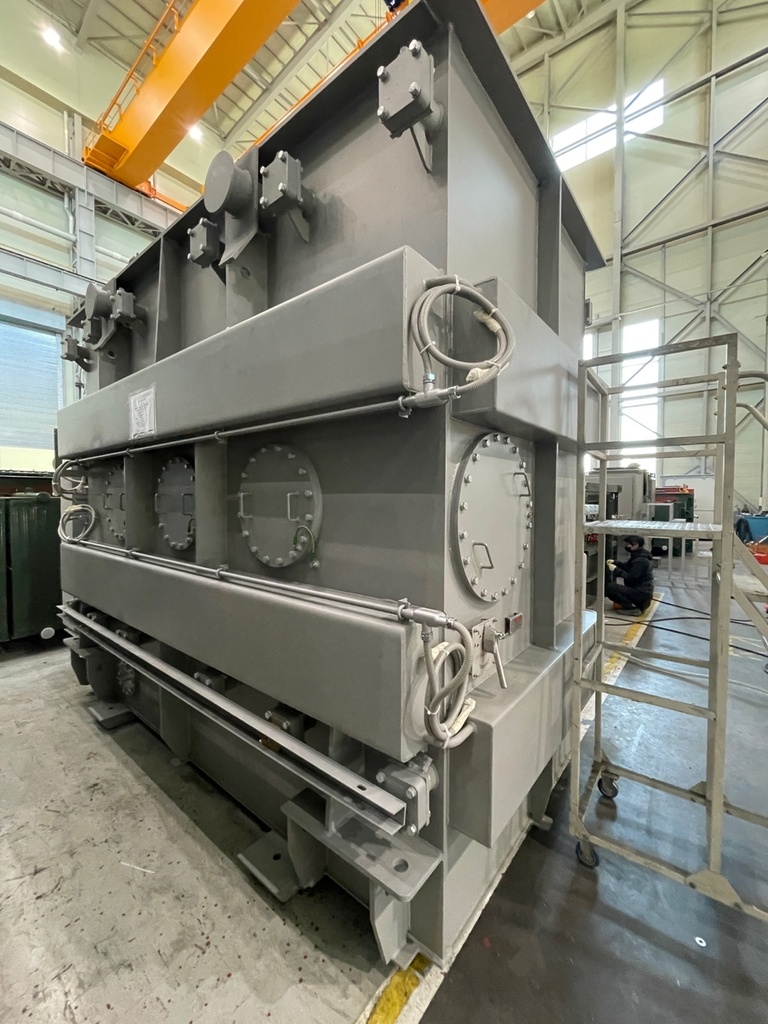

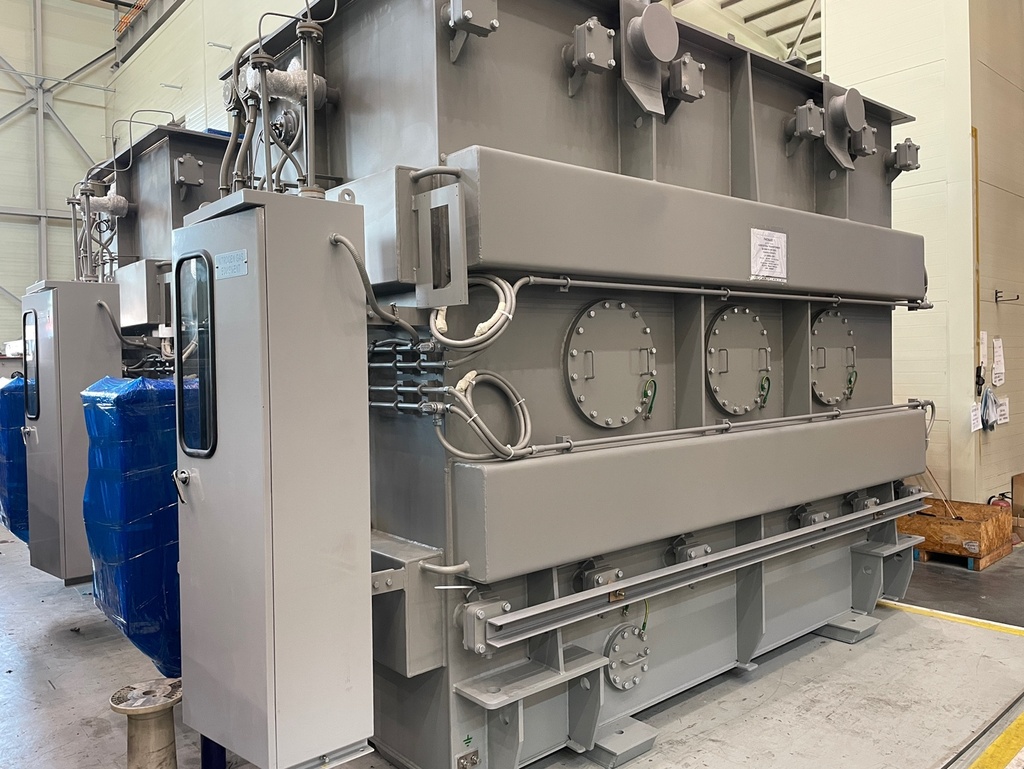

30/56 MVA, 69000 DELTA-13800Y, HANCHANG SUBSTATION TRANSFORMER

TWO (2) 30/33.6/39.9/44.7/50/56 MVA SUBSTATION TRANSFORMERS, 60 HZ,
3 PH, ONAN/ONAF/ONAF, OIL LEVEL GAUGE, OIL TEMP GAUGE, 7.87% IMP,
WINDING TEMP INDICATOR, PRESSURE RELEASE DEVICE, SUDDEN
PRESSURE RELAY, VACUUM PRESSURE GAUGE WITH BLEEDER, DRAIN
& SAMPLE VALVE, COPPER WINDINGS,

HV: 69000 DELTA BIL: 350 KV
LV: 13800Y/7970 BIL: 110 KV

TAPS: 72450-70725-69000-67275-65550

CORE & COILS: 59550 LBS
TANK & FITT: 25520 LBS
OIL: 27390 LBS (3775 GAL)
TOTAL WEIGHT: 112460 LBS
SHIPP WEIGHT: 75000 LBS

OVERALL DIMS: 182"L x 187"W x 165"H
SHIPPING DIMS: 167"L x 79"W x 138"H
