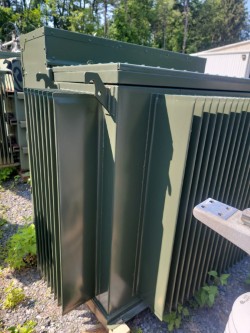

3750 KVA, Pri 13200D, Sec 480Y/277, DF/RF, CUTLER-HAMMER PADMOUNT TRANSFORMER

T-6135

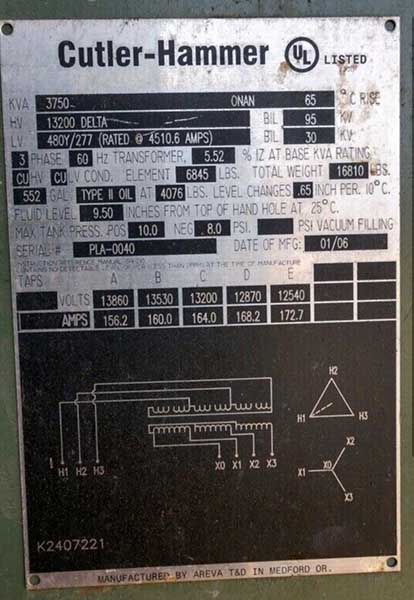

ONE (1) 3750 KVA CUTLER-HAMMER PADMOUNT TRANSFORMER, 3 PH, 60 HZ,
5.52% IMPEDANCE, ONAN, 65 DEG C RISE, COPPER WINDINGS,

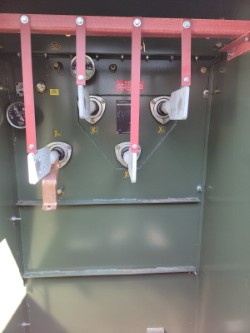

DEAD FRONT, RADIAL FEED, LIQUID LEVEL GAUGE, LIQUID
TEMP GAUGE, PRESSURE RELEASE DEVICE, PRESSURE GAUGE,
DRAIN & SAMPLE GAUGE, , UL LISTED

HV: 13200 DELTA BIL: 95 KV
LV: 480Y/277 BIL: 30 KV

TAPS: 13860-13530-13200-12870-12540

CORE & COIL: 6845 LBS
OIL: 4076 LBS (552 GAL)
TOTAL WEIGHT: 16810 LBS

DIMS: 102"H x 73"L x 100"D
