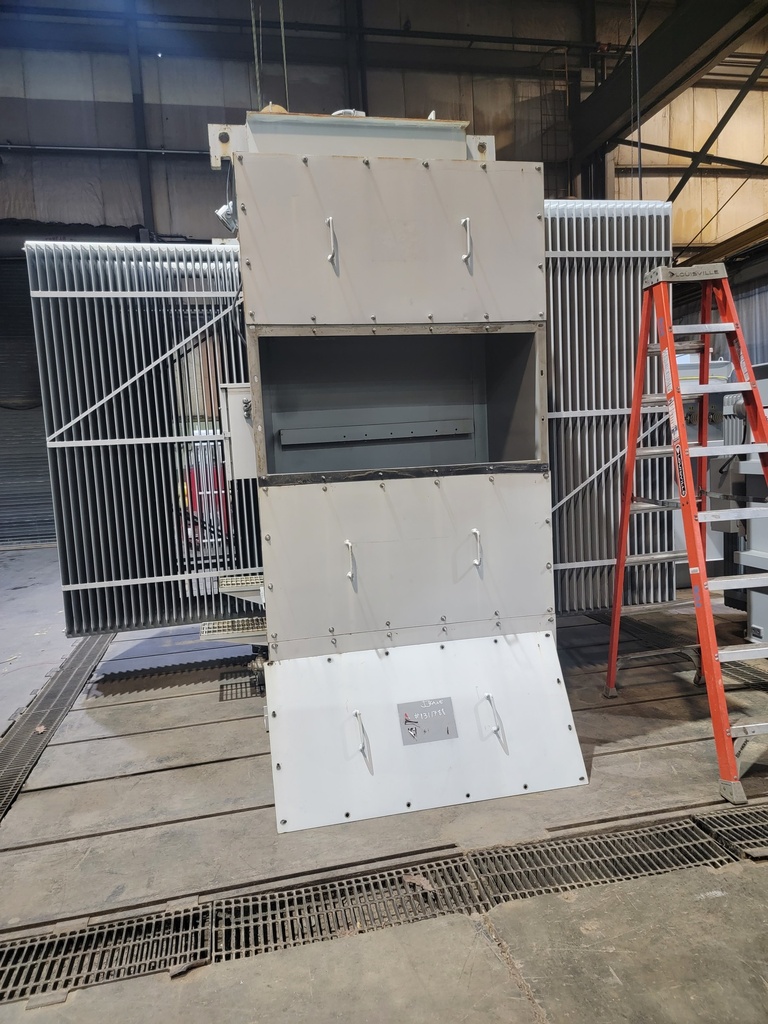

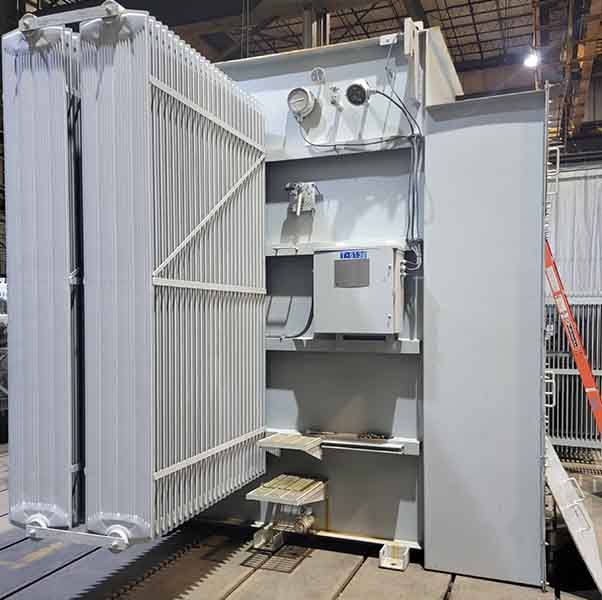

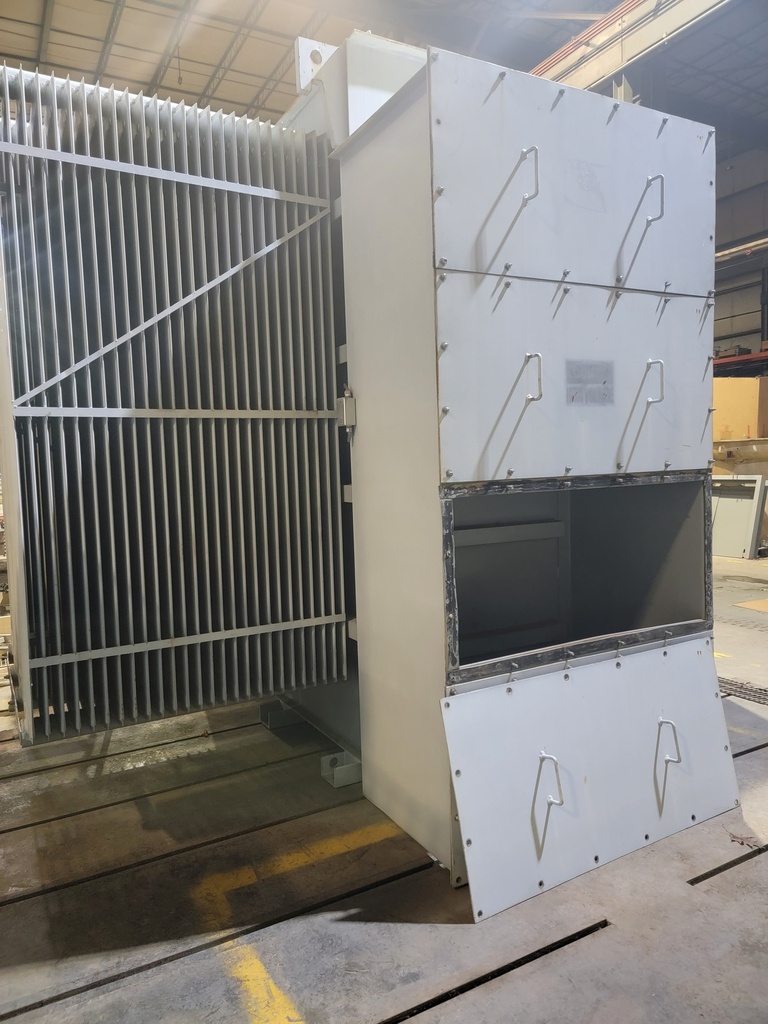

10000 KVA, Pri 13800D, Sec 4160Y, PENNSYLVANIA SUBSTATION TRANSFORMER

T-6130

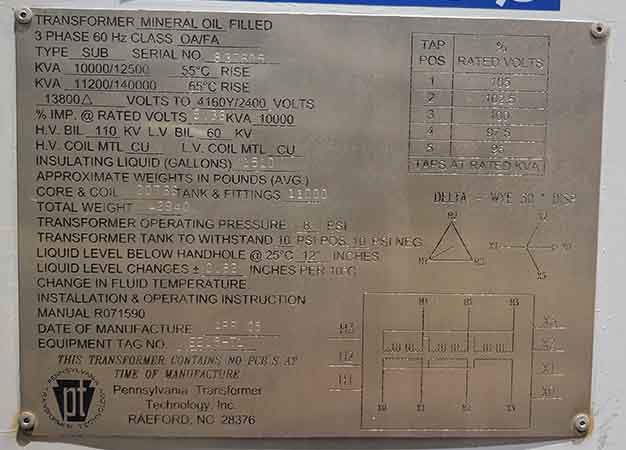

ONE (1) 10/12.5/11.2/14 MVA PENNSYLVANIA SUBSTATION TRANSFORMER
3 PHASE, 60 HZ, 5.36% IMP, CLASS OA/FA, 55/65 DEG C RISE,
COPPER WINDINGS, DIAL TYPE THERMOMETER WITH 2 ALARM CONTACTS,
FILTER PRESS VALVE, VACUUM PRESSURE GAUGE, LIQUID LEVEL GAUGE
WITH ALARM, NITROGEN VALVE, PRESSURE RELEASE VALVE, DRAIN &
SAMPLE VALVE, FULL LENGTH ATC'S

HV: 13800 DELTA BIL: 110 KV
LV: 4160/2400 WYE BIL: 60 KV

TAPS: 14490-14145-13800-13455-13110

CORE & COIL: 20766 LBS
TANK & FITT: 11000 LBS
OIL: 11174 LBS (1510 GAL)
TOTAL WGHT: 42940 LBS

DIMS: 133" H x 141.75" L x 154.75" D
