3000 Amp, SIEMENS, No. SPS2-145-63-3 145KV, SF6 CIRCUIT BREAKER
SF6 CIRCUIT BREAKER
Product Number:
044914
Full Product Description
CB-19648
ONE (1) 3000A Siemens SF-6 Circuit Breaker
145 kV Rated Max Volts
Rated Voltage Range Factor 1.0 (K)
63 KA Rated Short Circuit Current
Rated Out of Phase Current 15.8 KA
60 Hertz, 3 Cycle Interrupt
650 kV BIL
Weight of breaker with Gas 8000 lbs.
Weight of SF6 Gas 128 lbs.
87 psig Rated Operating Pressure at 68F / 20C
Instruction Book: PB-3658-05

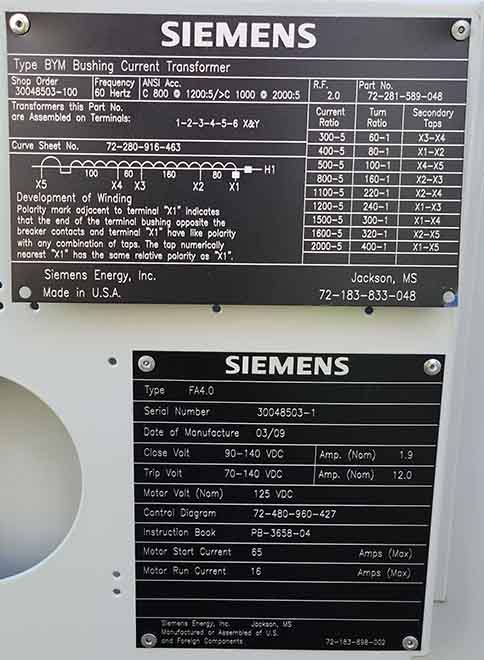

FA4.0 Spring Charge Operating Mechanism
125 VDC Close & Trip
120 VAC / 125 VDC Motor
Control Diagram: 72-481-050-493
ONE (1) 3000A Siemens SF-6 Circuit Breaker
145 kV Rated Max Volts
Rated Voltage Range Factor 1.0 (K)
63 KA Rated Short Circuit Current
Rated Out of Phase Current 15.8 KA
60 Hertz, 3 Cycle Interrupt
650 kV BIL
Weight of breaker with Gas 8000 lbs.
Weight of SF6 Gas 128 lbs.
87 psig Rated Operating Pressure at 68F / 20C
Instruction Book: PB-3658-05
FA4.0 Spring Charge Operating Mechanism
125 VDC Close & Trip
120 VAC / 125 VDC Motor
Control Diagram: 72-481-050-493
