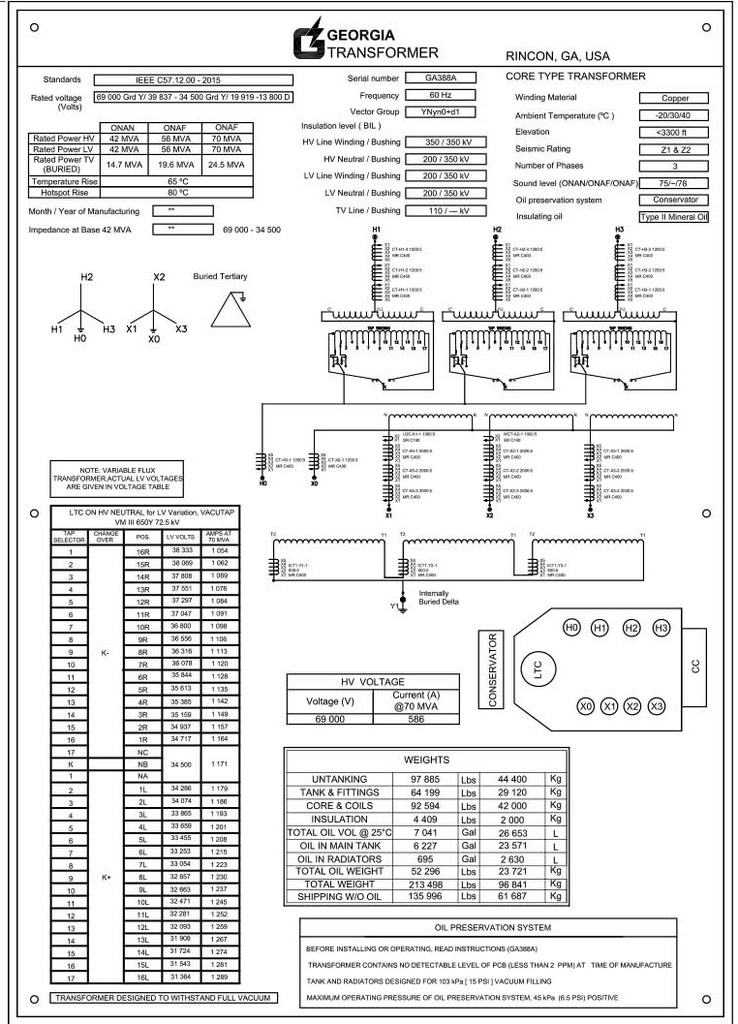

42 MVA, 69000GRDY/39837-34500GRDY/19919-13800D, GEORGIA SUBSTATION TRANSFORMER

JVT-3898

ONE (1) 42/58/70 MVA CORE TYPE GEORGIA TRANSFORMER, ONAN/ONAF/ONAF,
65 DEG C RISE, . % IMPEDANCE, OIL CONSERVATOR, OIL PRESERVATION
SYSTEM, LTC, LIQUID LEVEL GAUGE, LIQUID TEMP GAUGE, VACUUM
PRESSURE GAUGES, PRESSURE RELEASE DEVICE, DRAIN & SAMPLE
DEVICE

HV: 69000 GRDY/39837 BIL: 350 KV
LV: 34500 GRDY/19919 BIL: 200 KV
TAPS: 16 UP, 16 DOWN, STARTING AT NOMINAL

UNTANKING: 97885 LBS
TANK & FITT: 64199 LBS
CORE & COILS: 92594 LBS
INSULATION: 4409 LBS
TOTAL WEIGHT: 213498 LBS
SHIPPING WEIGHT: 135996 LBS

TOTAL OIL VOLUME: 7041 GAL
OIL IN MAIN TANK: 6227 GAL
OIL IN RADIATORS: 695 GAL
TOTAL OIL WEIGHT: 52298 LBS
