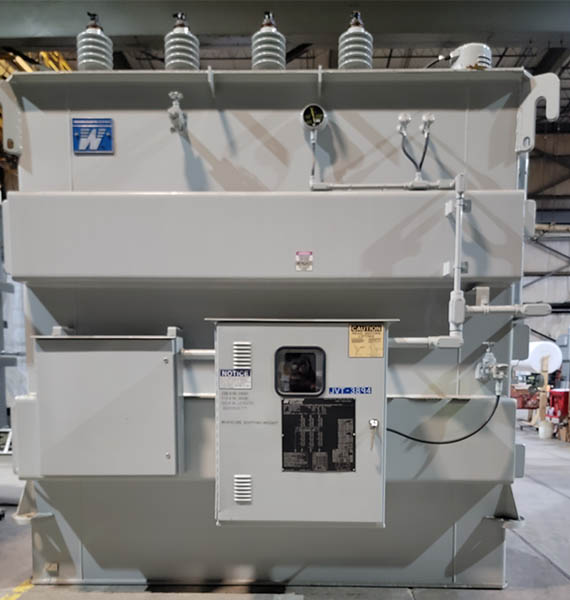

12/16/20 MVA, 138000D-13200Y/7620 UNUSED WAUKESHA SUBSTATION TRANSFORMER

JVT-3894 (T817)

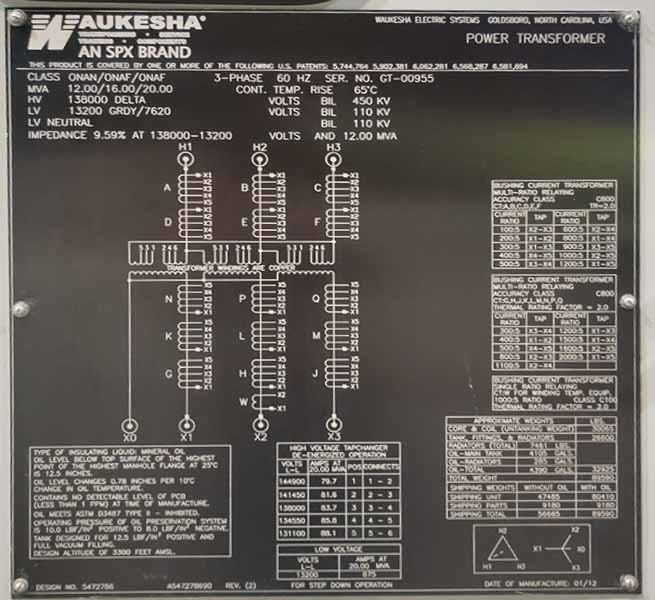

ONE (1) UNUSED WAUKESHA 12/16/20 MVA 3 PHASE SUBSTATION TRANSFORMER, 60 HZ,
CLASS ONAN/ONAF/ONAF, 9.59% IMPEDANCE, 65 DEG C RISE, COPPER
WINDINGS, LIQUID LEVEL GAUGE, ELECTRONIC TEMP MONITOR, PRESSURE
RELEASE DEVICE, PRESSURE VACUUM BLEEDER, PRESSURE GAUGE, SUDDEN
PRESSURE RELAY,

HV: 138000 DELTA BIL: 450 KV
LV: 13200 GRDY/7620 BIL: 110 KV

TAPS: 144900-141450-138000-134550-131100

CORE & COILS: 30065 LBS
TANK & FITT.: 26600 LBS
OIL: 32925 LBS (4390 GAL)
TOTAL WEIGHT: 89590 LBS (56665 LBS SHIPPING)

211.4" OVERALL HEIGHT (158.4" SHIPPING)
166.9" OVERALL WIDTH (153.6" SHIPPING)
168.7" OVERALL DEPTH (113.4" SHIPPING)
