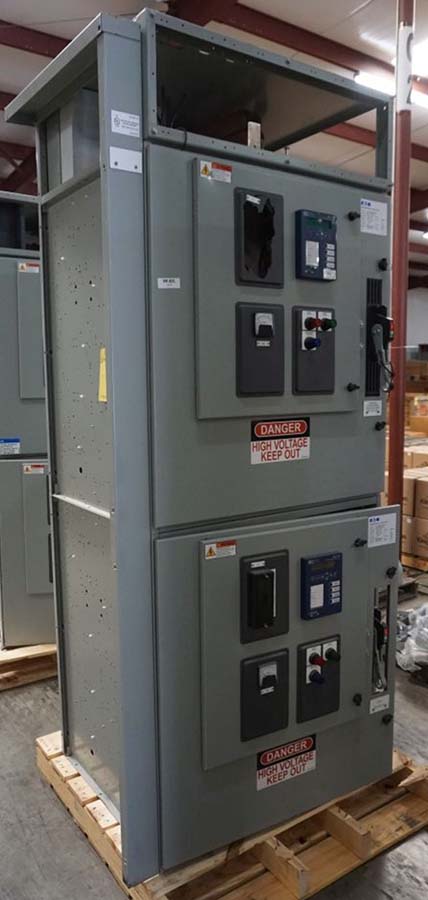

400 HP EATON AMPGARD SL72 7200V INDOOR STARTER- FULL VOLTAGE/INDUCTION

B-13665&A

One (1) 400 Amp Eaton AMPGARD Indoor Medium Voltage Starter- 2 High- Unused
Full Voltage/Induction
50 KA Interrupting
60 Hz
7200 V Rated Voltage
4160 V Rated Supply
400 HP/51 A Rated Load
120 VAC Control Volts
3 Phase
60 KV BIL
Controller Class: E2
Copper Conductors Only
Unit 16 FB

Drawing: ASMV1GC8S01

AC Contactor
Type SL72S4SH3LANL7MNR25
400 Amp Max
8500 Amp Max Interrupting
60 KV BIL
Eaton 5BCLS-4R Fuses
SEL 710 Relay's
