  2. 15000 KVA, Pri 67000 D, Sec 12470Y/7200 GE SUBSTATION TRANSFORMER

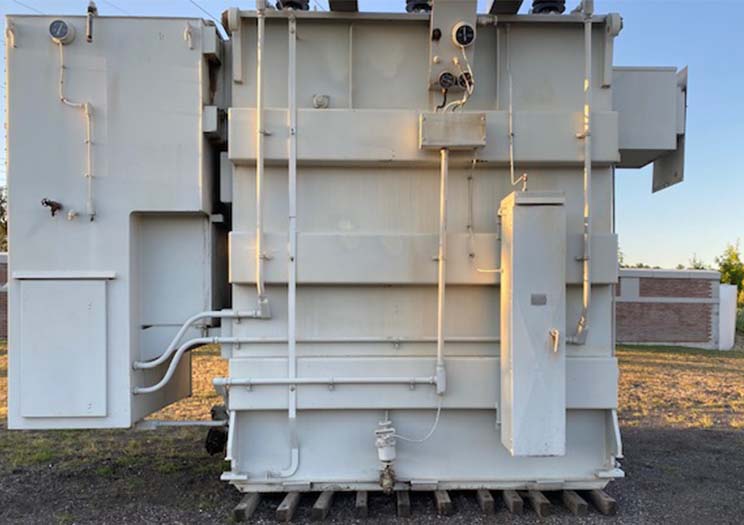

15000 KVA, Pri 67000 D, Sec 12470Y/7200 GE SUBSTATION TRANSFORMER

https://belyeapower.redstormlabs.com/web/image/product.template/34455/image_1920?unique=632d99c

SUBSTATION TRANSFORMER

$ 0.00 0.0 USD $ 0.00

$ 0.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Product Number: 044850
    Request Quote

    Full Product Description

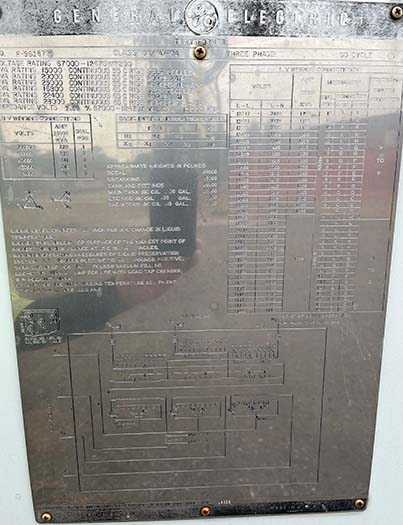

    ONE (1) 15 MVA GENERAL ELECTRIC SUBSTATION TRANSFORMER, 3 PHASE, 60 CYCLE,
    CLASS OA/FA/FOA, 7.86% IMPEDANCE, 55 DEG C RISE, 16 LV TAPS,
    LIQUID LEVEL GAUGE, LIQUID TEMP GAUGE, PRESSURE GAUGE, PRESSURE
    RELEASE VALVE, DRAIN & SAMPLE VALVE,

    HV: 67000D BIL: 350 KV
    LV: 12470Y/7200 BIL: 110 KV

    TOTAL WEIGHT: 104000 LBS
    UNTANKING: 43200 LBS
    TANK & FITT.: 29400 LBS
    MAIN TANK: 25100 LBS (3370 GAL)
    LTC HSG: 3200 LBS (430 GAL)
    RADIATORS: 3100 LBS (415 GAL)

    TAPS: 70600-68800-67000-65200-63400
    16 LV TAPS UP & DOWN
