1200 Amp, EATON, 50VCP-W40, 4760 V., CIRCUIT BREAKER DRAWER, NEW
CIRCUIT BREAKER DRAWER
Product Number:
044842
Full Product Description
CB-19587

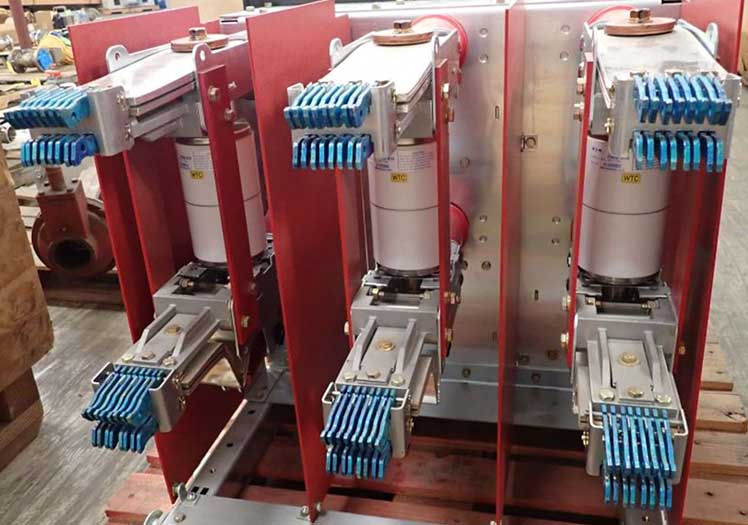

One (1) 1200 Amp Eaton Vacuum Circuit Breaker- UNUSED

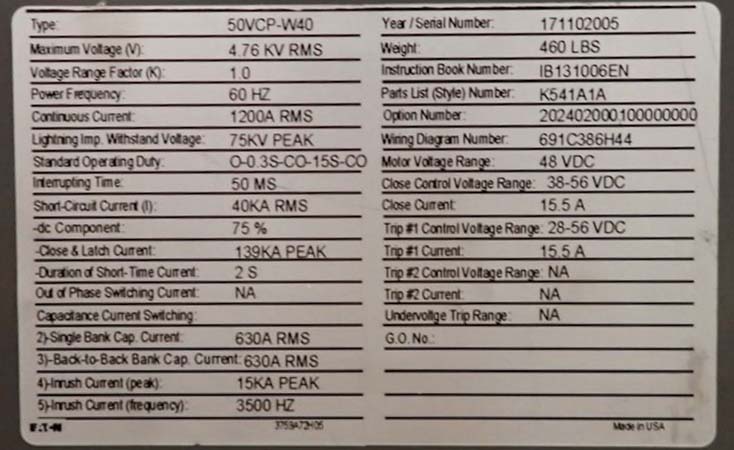

50VCP-W40
4.76 KV Max
1200A Continuous
75 KV BIL
1.0 K-Factor
48 VDC Motor Voltage Range
48 VDC Close & Trip
40 KA RMS Short Circuit
139 KA Peak Close & Latch
Draw Out
S.O.D.: O-0.3S-CO-15S-CO
IB 131006EN
Wiring Diagram 691C386H44
460 LBS
