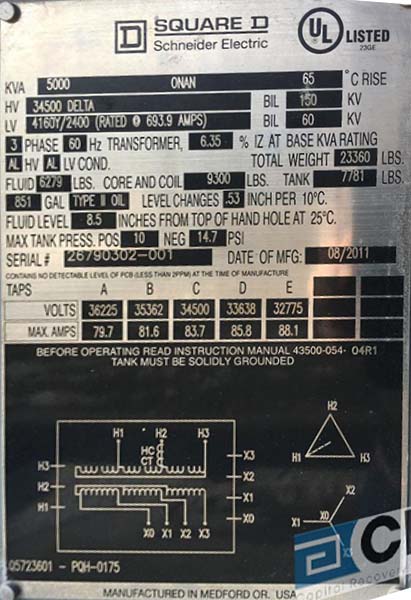

5000 KVA, Pri 34500 D, Sec 4160Y/2400, SQUARE D SUBSTATION TRANSFORMER

T-6115

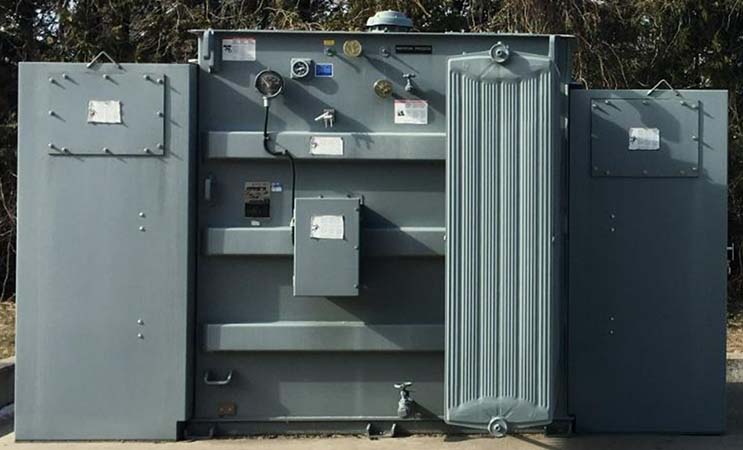

ONE (1) 5000 KVA SQUARE D SUBSTATION TRANSFORMER, 3 PHASE, 60 HZ,
6.35 % IMPEDANCE, 65 DEG C RISE, CLASS ONAN, AL WINDINGS,
LIQUID LEVEL GAUGE, LIQUID TEMP GAUGE, VACUUM PRESSURE GAUGE,
LIQUID PRESSURE GAUGE, PRESSURE RELEASE VALVE, DRAIN & SAMPLE VALVE,
HV & LV FULL LENGTH ATC'S, SIDE-SIDE (ANTE 2&4), TYPE II OIL,


HV: 34500 DELTA BIL: 150KV
LV: 4160Y/2400 BIL: 60KV
TAPS: 36225-35362-34500-33638-32775

CORE & COILS: 9300 LBS
TANK & FITT.: 7781 LBS
OIL: 6279 LBS (851 GAL)
TOTAL WEIGHT: 23360 LBS
