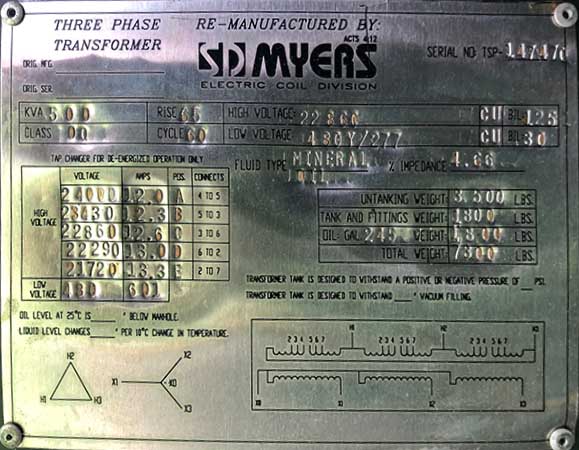

500 KVA, Pri 22860 D, Sec 480Y/277, DF/LF, SD MYERS PADMOUNT TRANSFORMER

T-6111

ONE (1) SD MYERS 500 KVA, 3 PHASE PADMOUNT TRANSFORMER, 60 HZ
4.66% IMPEDANCE, 65 DEG C RISE, CLASS 00, DEAD FRONT, LOOP
FEED, BAYONET FUSES,
COPPER WINDINGS, DRAIN & SAMPLE VALVE, TAP CHANGER,
OIL FILLED,

HV: 22860 DELTA BIL: 125KV
LV: 480Y/277 BIL: 30KV
TAPS: 24000-23430-22860-22290-21720


CORE & COILS: 3500 LBS
TANK & FITT.: 1800 LBS
OIL: 1800 LBS (245 GAL)
TOTAL WEIGHT: 7300 LBS

62.25" H x 63" W x 65" L
