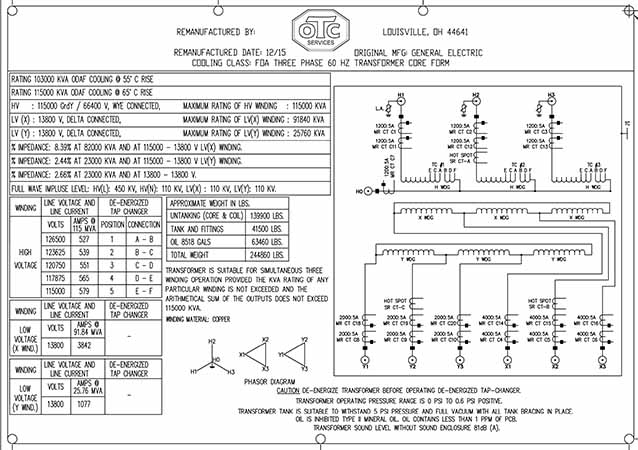

103000 KVA, Pri 115000 GRDY, Sec 13800 D, GE SUBSTATION TRANSFORMER

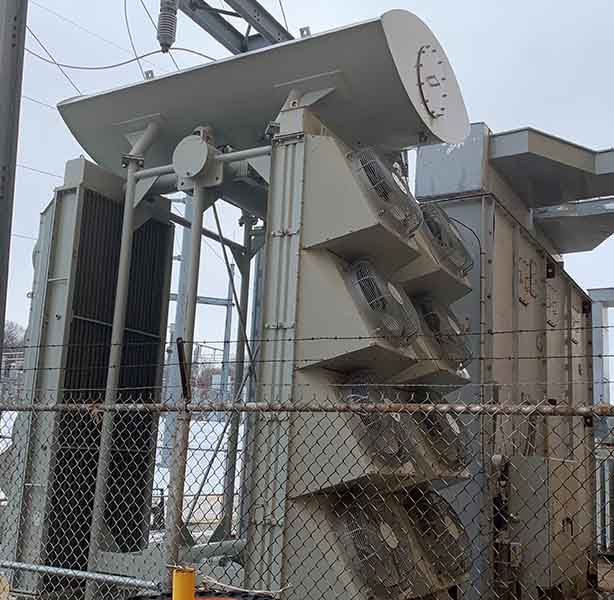

ONE (1) 103/115 MVA GE SUBSTATION TRANSFORMER, 115000GRDY/66400-13800D,
COPPER WINDINGS, CLASS FOA, 3 PHASE, 60 HZ, 55/65 DEG C RISE,
2.66%/2.44%/8.39% IMPEDANCE,

HV: 115000GRDY/66400 MAX RATING: 115000KVA BIL: 450KV
LV(X): 13800D MAX RATING: 91840KVA BIL: 110KV
LV(Y): 13800D MAX RATING: 25760KVA BIL: 110KV

TAPS: 126500-123625-120750-117875-115000

CORE & COILS: 139900 LBS
TANK & FITT.: 41500 LBS
OIL: 63460 LBS (8518 GAL)
TOTAL WEIGHT: 244860 LBS
