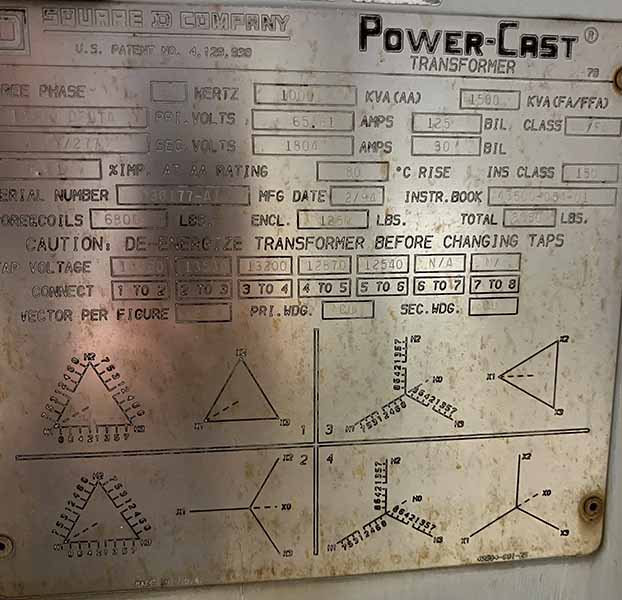

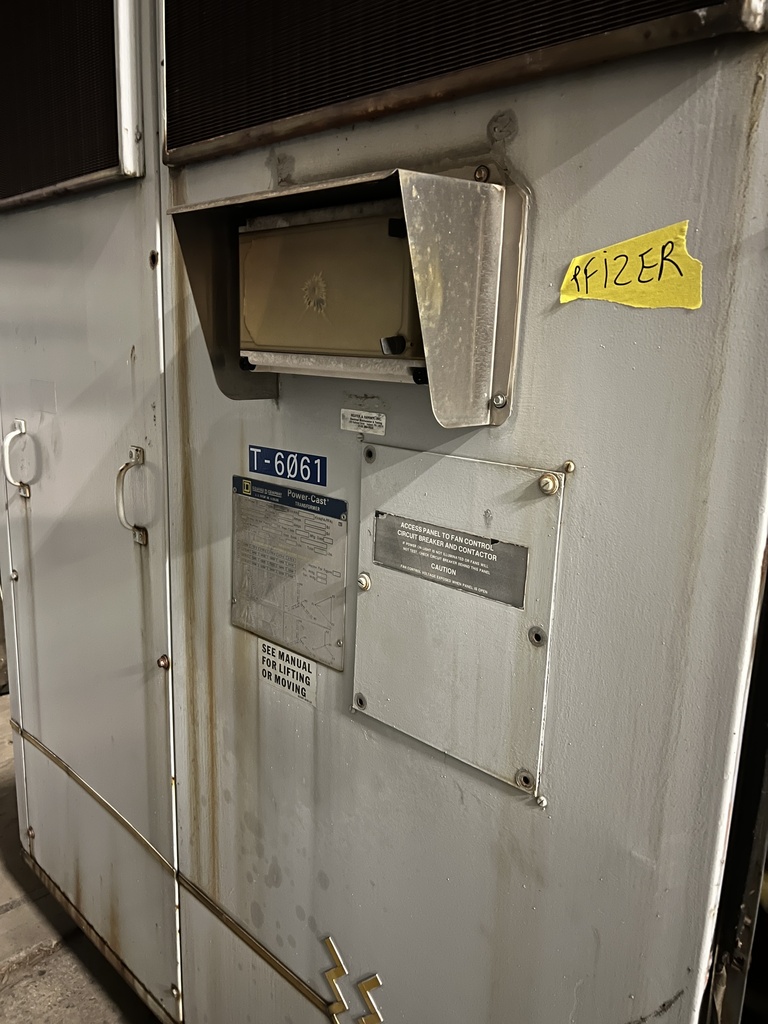

1000/1500 KVA, Pri 13200 D, Sec 480Y/277, SQUARE D POWER-CAST

T-6061

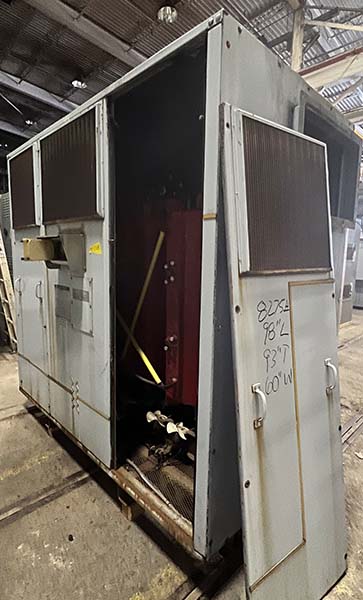

ONE (1) 1000/1500 KVA SQUARE D DRY TYPE TRANSFORMER
NEMA 3R, 3 PHASE, 60 HZ, COPPER WINDINGS
CLASS AA/FA, 80 DEG. C RISE, 5.9% IMPEDANCE, MFG. 1988,


HIGH VOLTAGE: 13200 DELTA, BIL 95 KV
LOW VOLTAGE: 480Y/277, BIL 30 KV
TAPS: 13860-13530-13200-12870-12540

TOTAL WEIGHT: 8,275 LBS
CORE & COILS: 6,600 LBS
ENCL.: 1,675 LBS

DIMENSIONS: 93"H x 98"W x 60"D
CORE DIMENSIONS: 81"H X 75"L X 39"D
