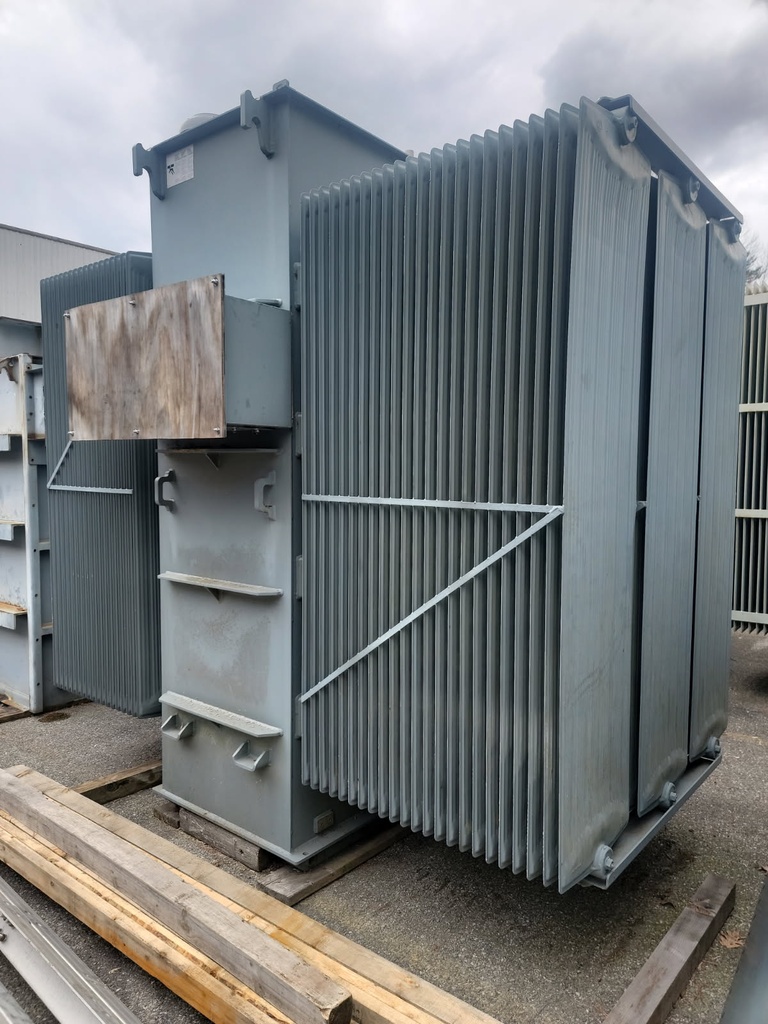

3750/4200/4687/5250 KVA, Pri 13200 D, Sec 480Y/277, SQUARE D, SUBSTATION
SUBSTATION TRANSFORMER
Product Number:
044620
Full Product Description
T-6058

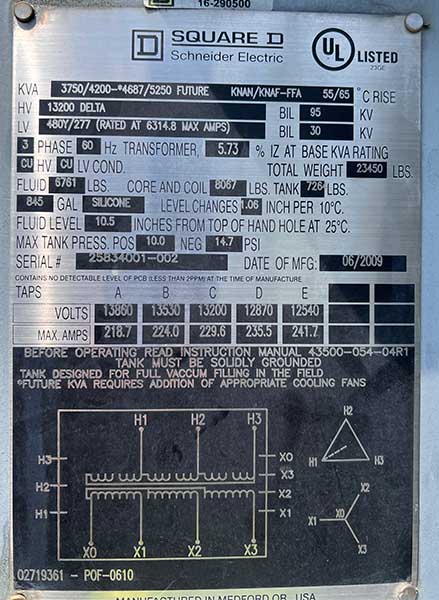

ONE (1) 3750/4200-4687/5250 FUTURE, SUBSTATION TRANSFORMER,
3 PHASE, 60HZ, MFG. 2009, SQ. D, CLASS KNAN/KNAF-FFA,

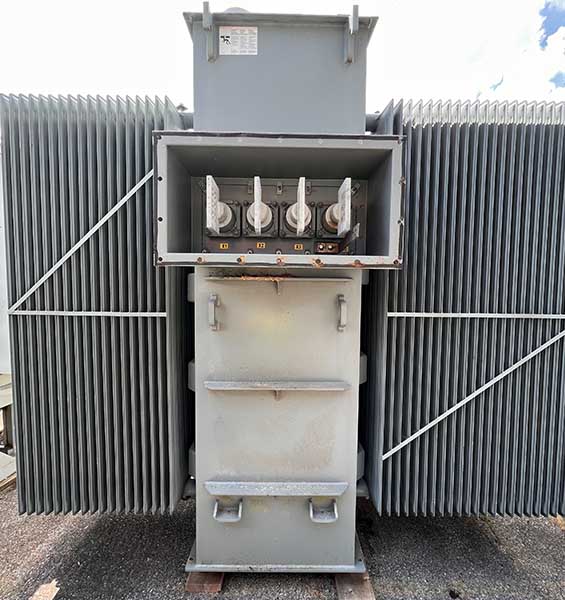

55/65 DEG. C RISE, 5.73% IMPEDANCE, SIDE SIDE BUSHINGS

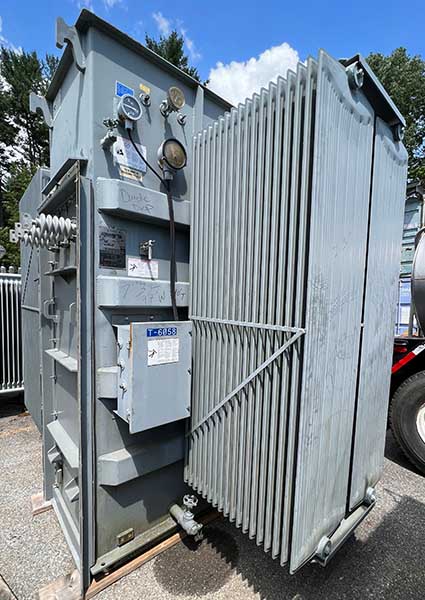

COPPER WINDINGS, LIQUID TEMP. GAUGE, VACUUM PRESSURE
GUAGE, LIQUID LEVEL GUAGE, PRESSURE RELIEF VALVE,
DRAIN & SAMPLE VALVE
HIGH VOLTAGE: 13200 DELTA BIL 95 KV
LOW VOLTAGE: 480Y/277 BIL 30 KV
TAPS: 13860-13530-13200-12870-12540
TOTAL WEIGHT: 23,450 LBS
CORE & COILS: 8,067 LBS
TANK & FIT.: 7,264 LBS
LIQUID OIL: 6,761 LBS (845 GAL)
DIMENSIONS: 112"H x 100.5"D x 66"W
