30/33.6/40/44.8/50/56 MVA, ABB, Pri 230000 D, Sec 13800Y/7967 Copper

JVT-3880

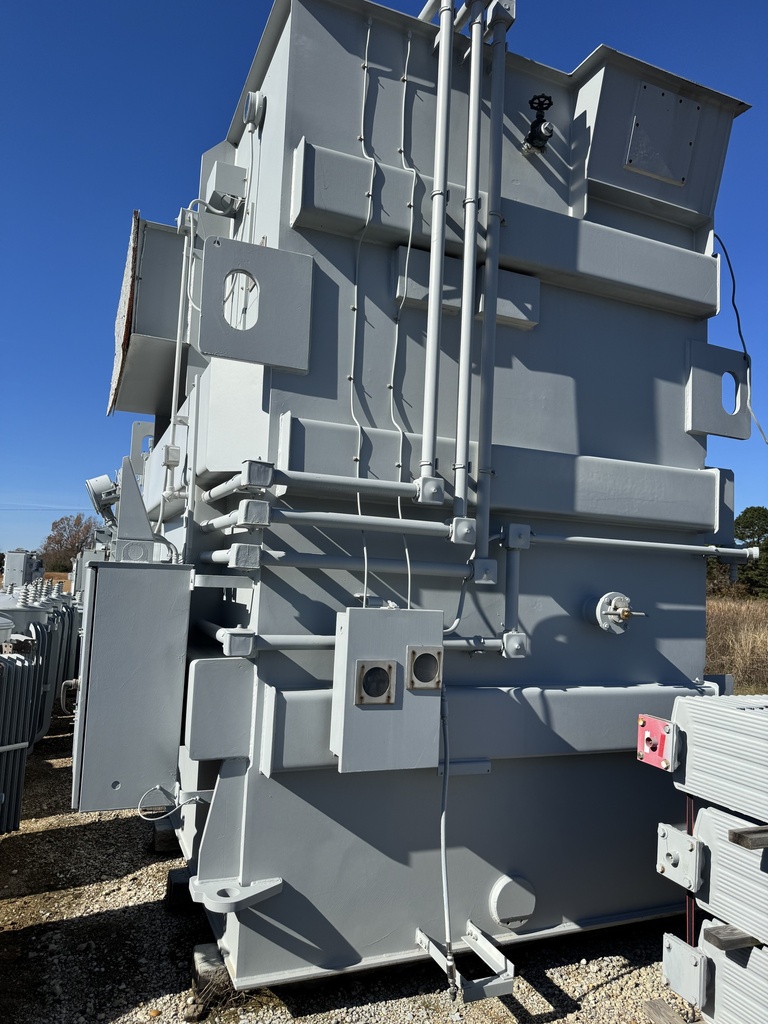

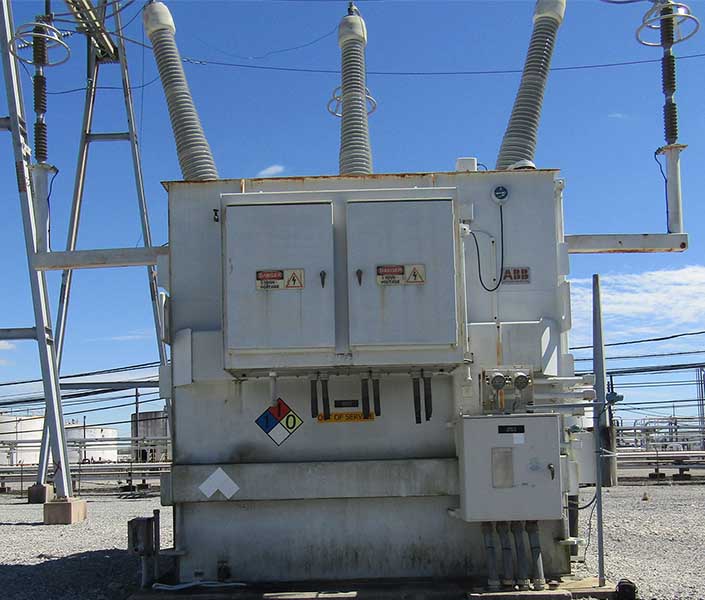

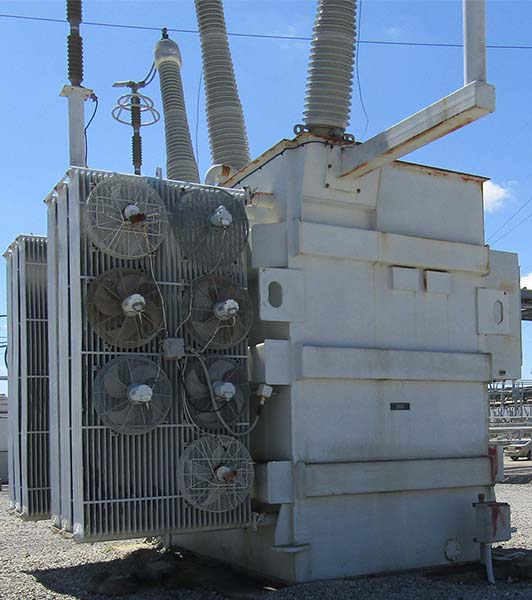

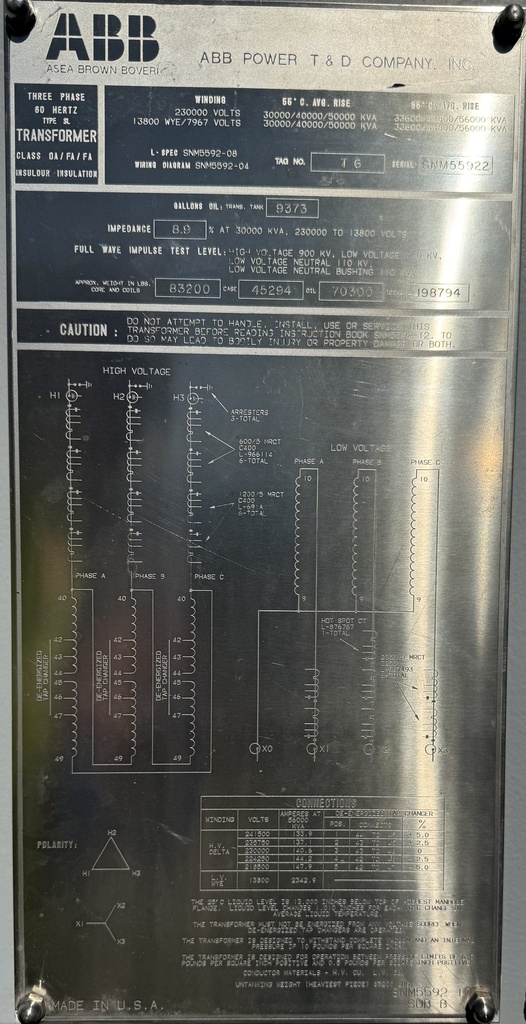

ONE (1) 30/33.6/40/44.8/50/56 MVA ABB SUBSTATION TRANSFORMER
THREE PHASE, 60 HERTZ, CLASS OA/FA/FA, IMP. 8.9%
COPPER WINDINGS, TOP-TOP BUSHINGS, HV SURGE ARRESTERS
BOTTOM CONNECT BUSHINGS, SAMPLE/DRAIN VALVE, SUDDEN
PRESSURE RELAY, LIQUID LEVEL GAUGE, TEMPERATURE INDICATOR
NITROGEN CYLINDER, RELIEF DEVICE WITH ALARM,
HV MRCT's: (6ea) 600:5 & (6ea) 1200:5, LV MRCT's: (6ea) 2000:5

HV: 230000 DELTA BIL: 900KV
LV: 13800Y/7967 BIL: 110KV
LV NEUTRAL: BIL: 110KV
HV TAPS: 241500-235750-230000-224250-218500

TANK & FITTING: 45294 LBS.
CORE & COIL: 83200 LBS.
FLUID - OIL: 70300 LBS. (9373 GALS.)
TOTAL WEIGHT: 198794 LBS.
SHIP WEIGHT: 111250 LBS.

SHIPPING DIMENSIONS: 179.375"H x 140.375"W x 191.875"L
DRESSED DIMENSIONS: 372"L x 312.125"H x 233.5"wJVT-3880
