Full Product Description
JVT-3879

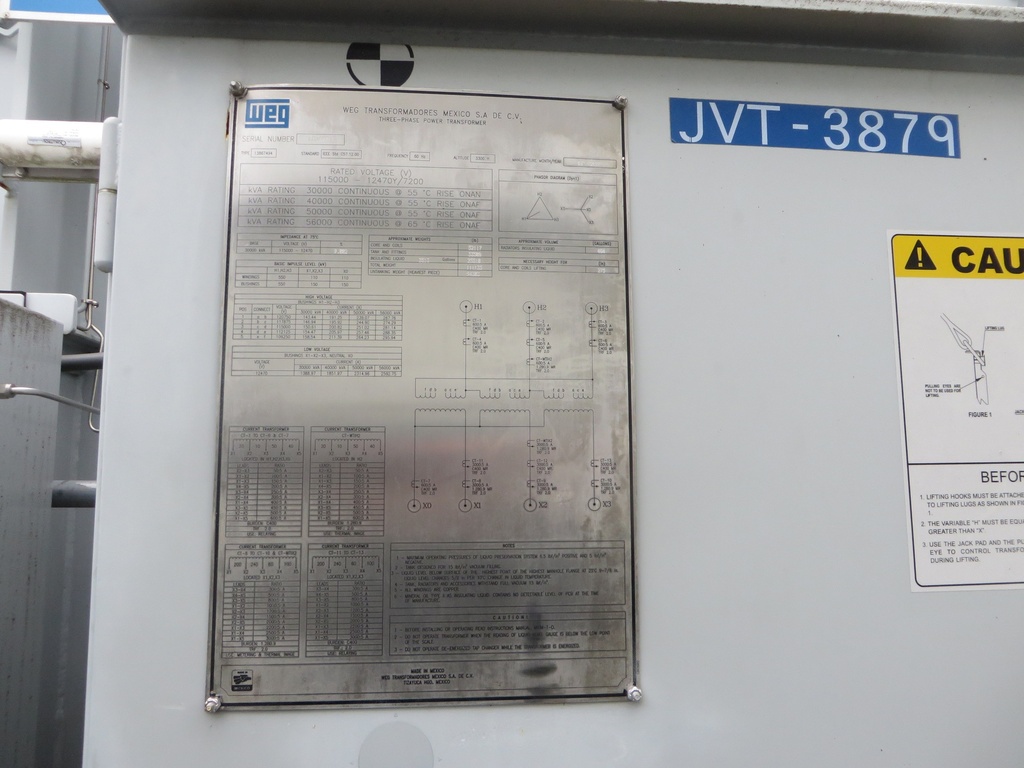

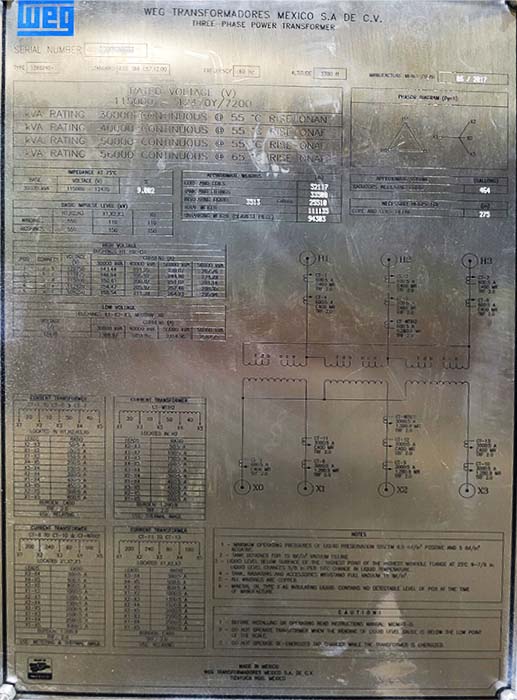

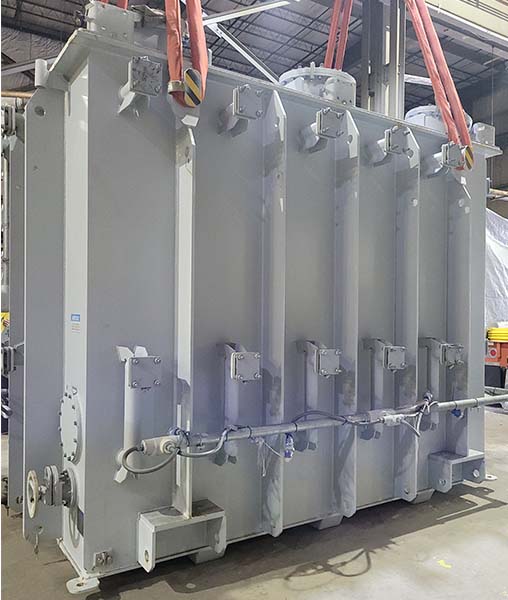

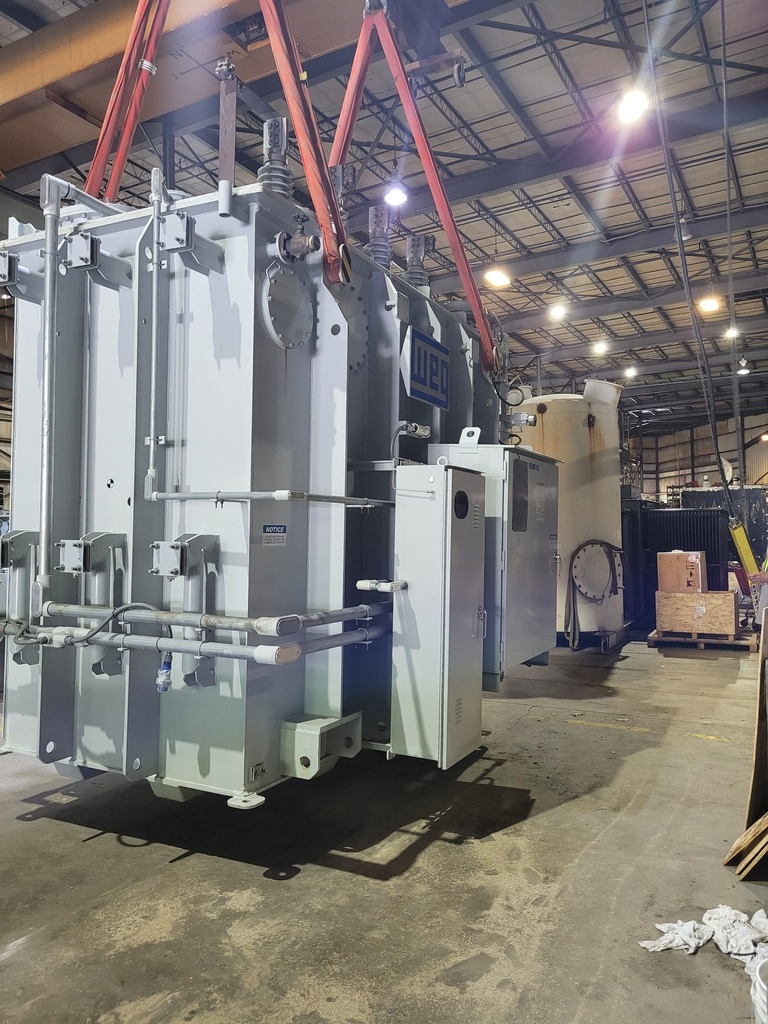

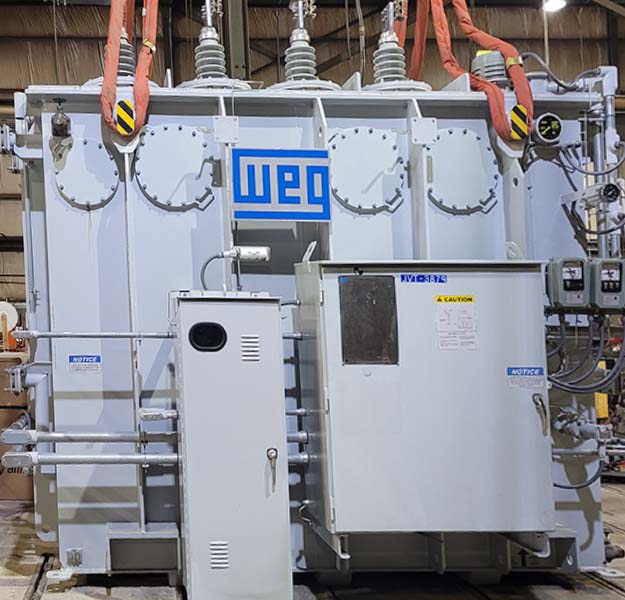

ONE (1) 30/40/50/56 MVA WEG SUBSTATION TRANSFORMER
CLASS ONAN/ONAF/ONAF/ONAF, THREE PHASE
60 HERTZ, TYPE 13867494, PRESSURE RELIEF VALVE,
RAPID PRESSURE RISE RELAY, WINDING TEMP. GAUGE,
ENVIROMENT TEMP. GAUGE, LIQUID LEVEL GAUGE,
VACUUM PRESSURE GAUGE, MRCT'S 55/65 DEG. C RISE,
MFG. 2017, IMP. 9%, COPPER WINDINGS,
HV: 115000 DELTA BIL: 550 KV
LV: 12470/7200 WYE BIL: 110 KV
TAPS: 120750-117875-115000-112125-109250
TANK AND FITTINGS: 32,473 LBS.
CORE AND COIL: 52,117 LBS.
FLUID - OIL: 24,927 LBS. (3,434 GALS.)
TOTAL WEIGHT: 109,807 LBS.
SHIPPING WEIGHT: 97,807 LBS.
DIMENSIONS: 111"W x 140"H x 159"L
