3000/3360 KVA, Pri 13200 D, Sec 480 Y, Siemens, Biotemp, 15kv LA, LF/RF:

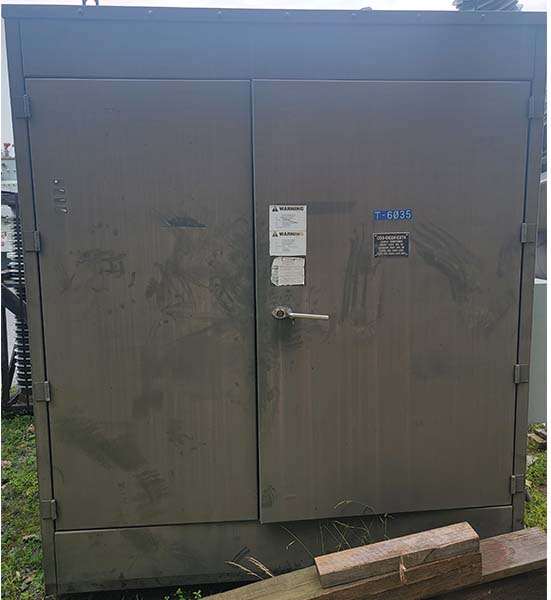

T-6035

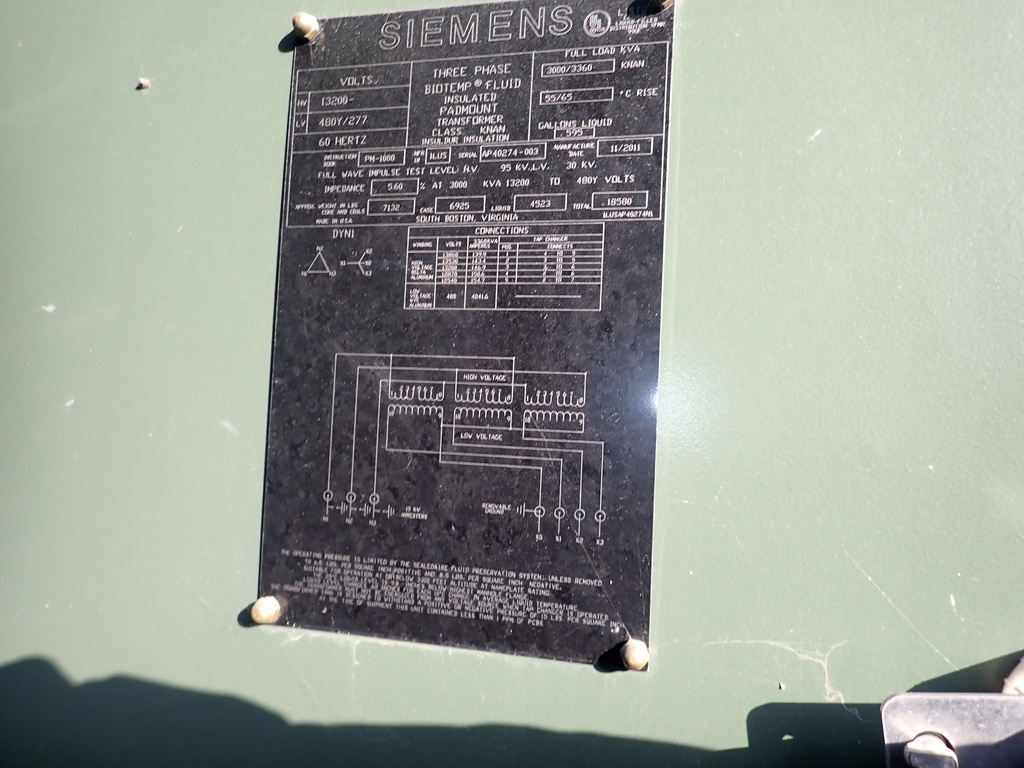

ONE (1) 3000/3360KVA SIEMENS PADMOUNT TRANSFORMER
55/65 DEG. C RISE, CLASS KNAN, 60 HERTZ
BIOTEMP FLUID, UL LISTED, 5.60% IMPENDANCE
15KV ARRESTERS, REMOVABLE GROUND,
LIVE FRONT, RADIAL FEED, ALUMINUM WINDINGS,
VACUUM PRESSURE GAUGE, RAPID PRESSURE RISE RELAY,
LIQUID LEVEL GAUGE, LIQUID TEMPERATURE GUAGE,
INSTR. BOOK PM-1000

HV: 13200 DELTA BIL: 95KV
LV: 480/277 WYE BIL: 30KV
TAPS: 13860-13530-13200-12870-12540

TANK & FITTINGS: 6925 LBS.
CORE & COIL: 7132 LBS.
FLUID-BIOTEMP: 4523 LBS. (595 GALS.)
TOTAL WEIGHT: 18580 LBS.

DIMENSIONS: 94.5"H x 84.25"W x 115"D
