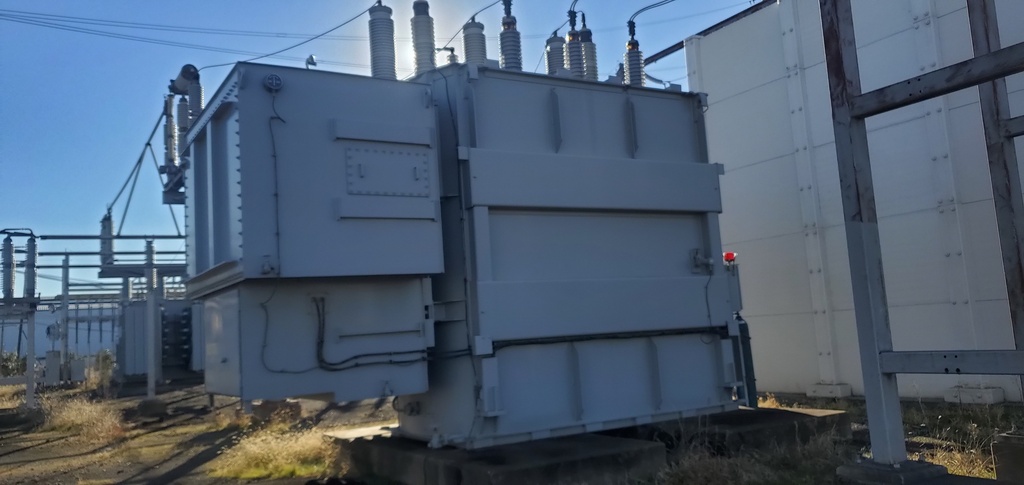

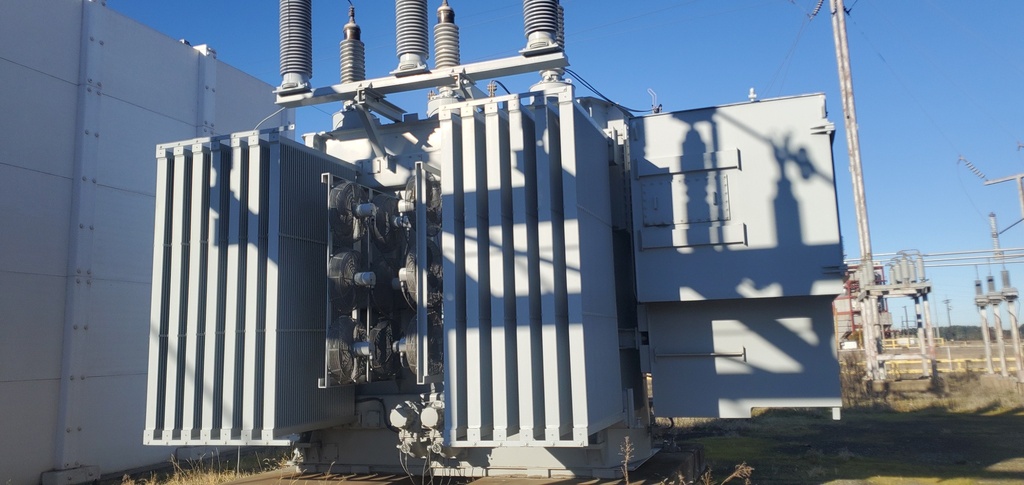

40/74.6 MVA Pri 138000 Y, Sec 69000 Y, Auto Transformer with LTC

ONE (1) 40000/53333/66667/74667 GE OIL FILLED AUTO TRANSFORMER WITH LTC,
CLASS OA/FA/FOA, 4.89% IMPEDANCE, 3 PAHSE, 60 HERTZ

HV: 138KV WYE 550KV BIL
LV: 69KV WYE 350KV BIL
HOXO: 110KV BIL
TAPS: 144900-141450-138000-134550-131100<
LTC: 32 STEPS +/-10% 78860-65340
2 SETS OF CURRENT TRANSFORMERS ON HV SIDE

TOTAL WEIGHT 228,000 LBS
CORE & COILS 73,000 LBS
TANK & FITTINGS 61,600 LBS
TAP CHANGER (1170 gal) 8700 LBS
S/N 100588
