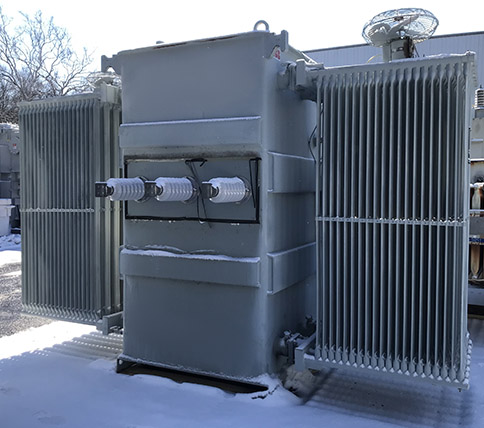

5000/7000 KVA, Pri 26400 D, Sec 4360Y/2515, ABB, COPPER

T-5997:

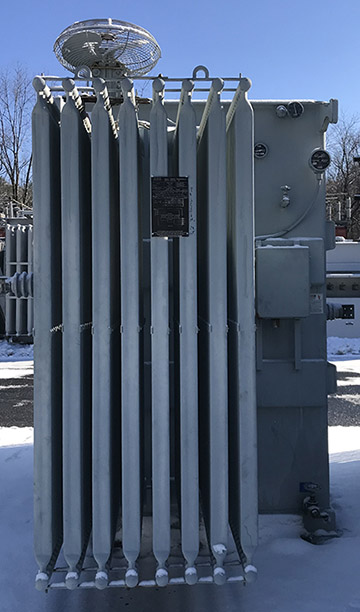

ONE (1) 5000/5600/6250/7000 KVA ABB SUBSTATION TRANSFORMER, TYPE RSL, 3 PHASE,
60 HERTZ, 55/65 DEG. C RISE, CLASS OA/FA, 6.31% IMPEDENCE, COPPER
WINDINGS, CONTROL CABINET, DE-ENERGIZED TAP CHANGER, MAGNETIC LIQUID
LEVEL GAUGE, LIQUID TEMPERATURE GAUGE WITH ALARM CONTACTS, VACUUM
PRESSURE GAUGE, DRAIN & SAMPLE VALVE, HV BUSHING ANSI 4 THROAT, LV

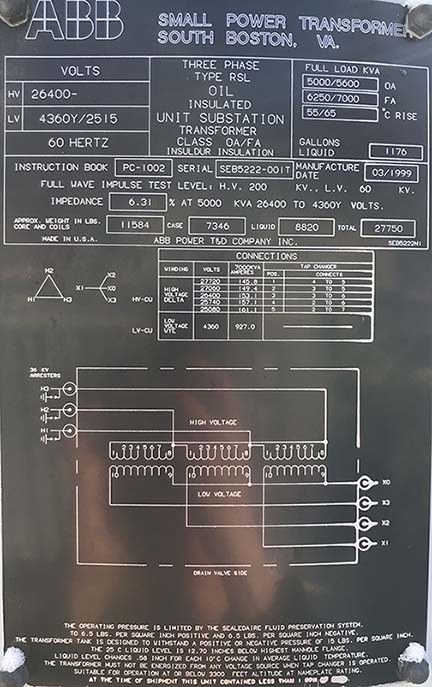

BUSHING ANSI 2 THROAT, S/N SEB5222-00IT, INST. PC-1002, MFG. 1999

HIGH VOLTAGE: 26400 DELTA BIL: 200 KV
LOW VOLTAGE: 4360Y/2515 BIL: 60 KV
TAPS: 27720-27060-26400-25740-25080

TOTAL WEIGHT: 27,750 LBS.
CORE & COILS: 11,584 LBS.
TANK & FIT: 7,346 LBS.
OIL: 8,820 LBS. (1,176 GALS.)

DIMENSIONS: 113.8"H X 120"L X 163.2"W
