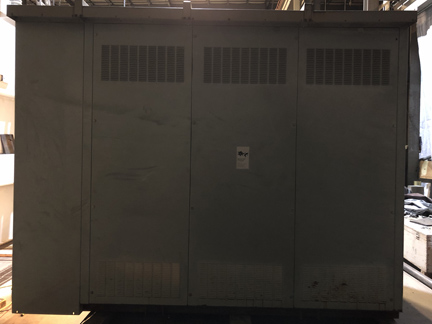

2000 KVA, Pri 12470Y/7200, Sec 480Y/277, 1992, ABB, OUTDOOR, COPPER:1

T-5875:

ONE (1) 2000 KVA ABB OUTDOOR DRY TYPE TRANSFORMER, 3 PHASE, 60 HERTZ, CLASS
AA, 80 DEGREE C RISE, 5.61% IMPEDANCE, COPPER WINDINGS, WINDING
TEMPERATURE INDICATOR, HV RIGHT TO LV LEFT, MFG. 1992, INST. BOOK

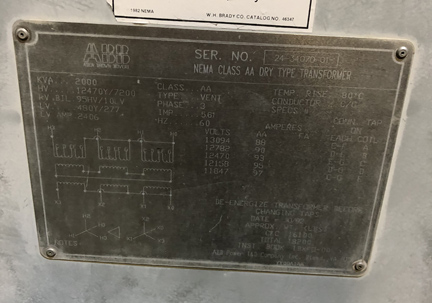

IBXFO-00, S/N 24-34070-01

HIGH VOLTAGE: 12470Y/7200 BIL: 95 KV
LOW VOLTAGE: 480Y/277 BIL: 10 KV
TERTIARY: DELTA
TAPS: 13094-12782-12470-12185-11847

TOTAL WEIGHT: 18,200 LBS.

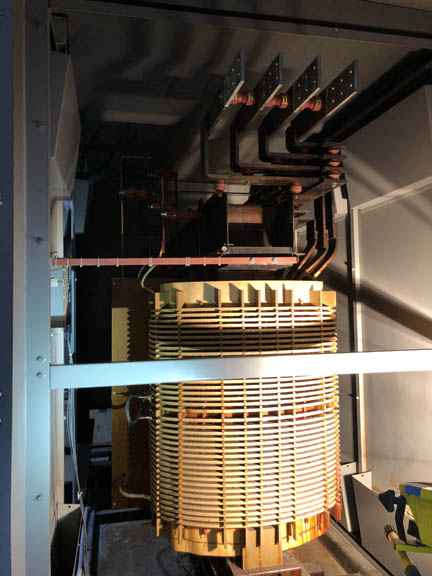

CORE & COILS: 16,100 LBS.
DIMENSIONS: 109.5"H X 136.25"D X 68.25"W
