3000 KVA, Pri 13800 D, Sec. 415Y/239, GE, ALUMINUM, DEAD FRONT, LOOP FEED:1

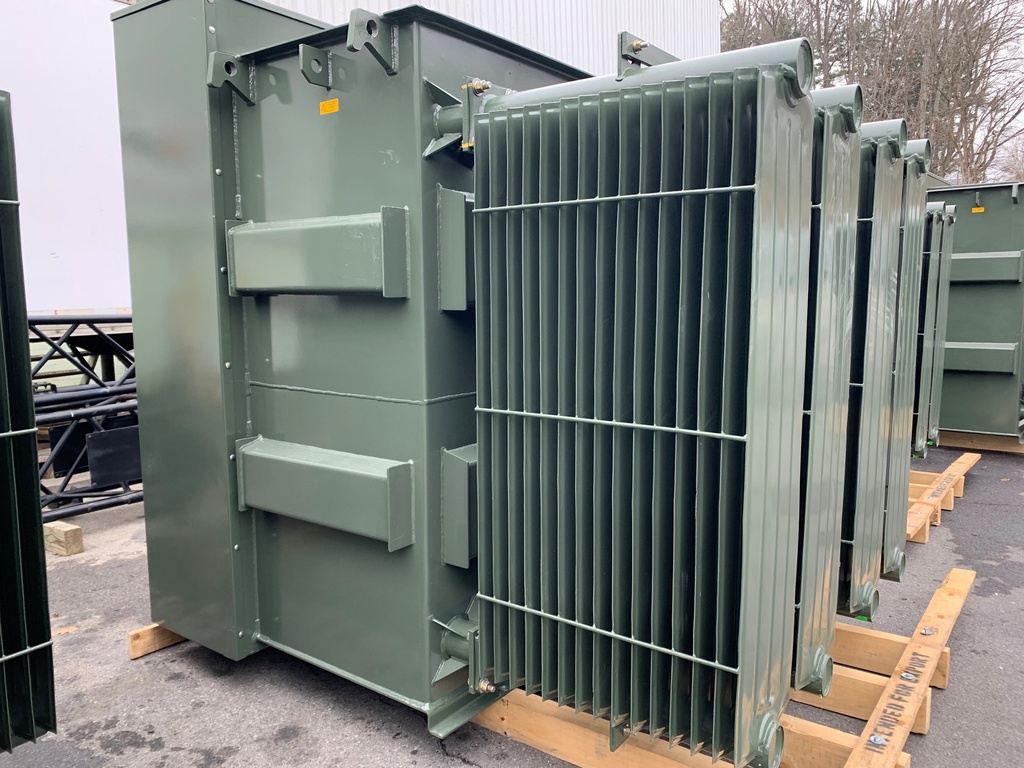

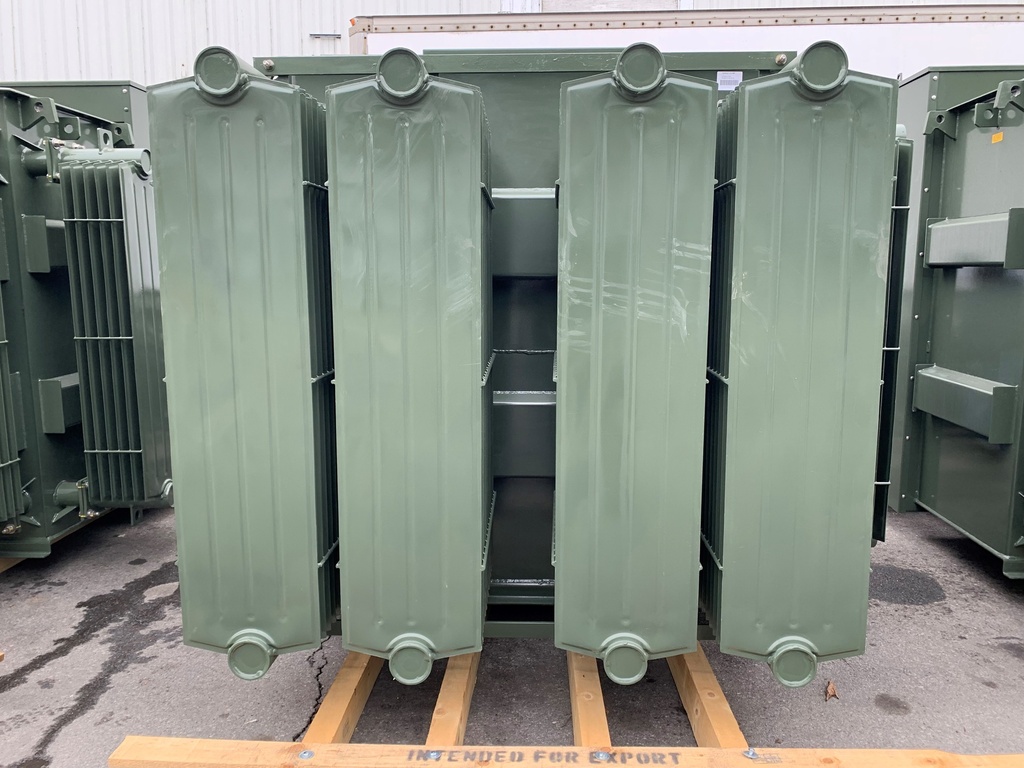

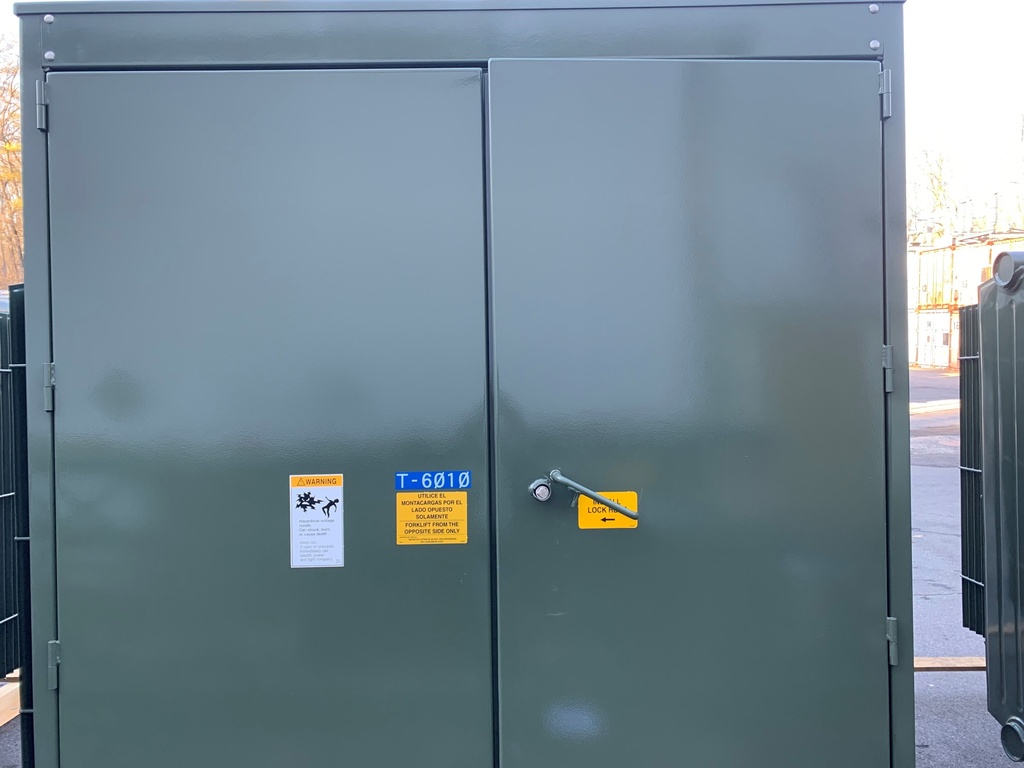

ONE (1) NEW 3000 KVA JCL COMPARTMENTALIZED PADMOUNT TRANSFORMER, 3 PHASE, 60

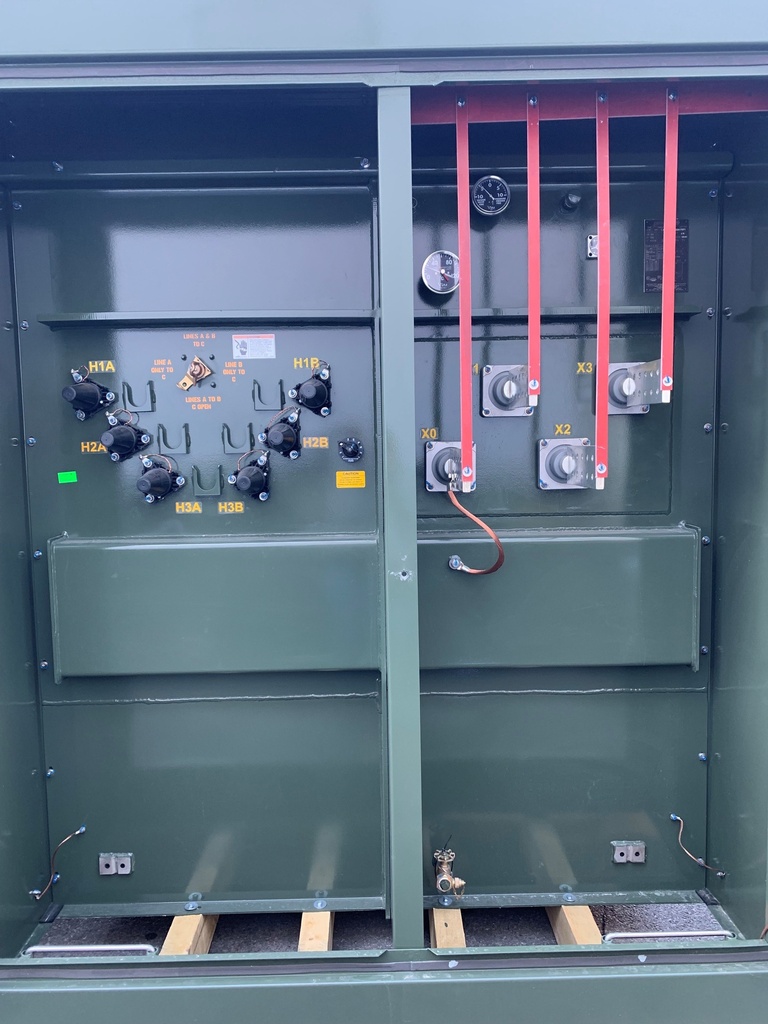

HERTZ, CLASS ONAN, 65 DEG. C RISE, DEAD FRONT, LOOP FEED, LIQUID LEVEL

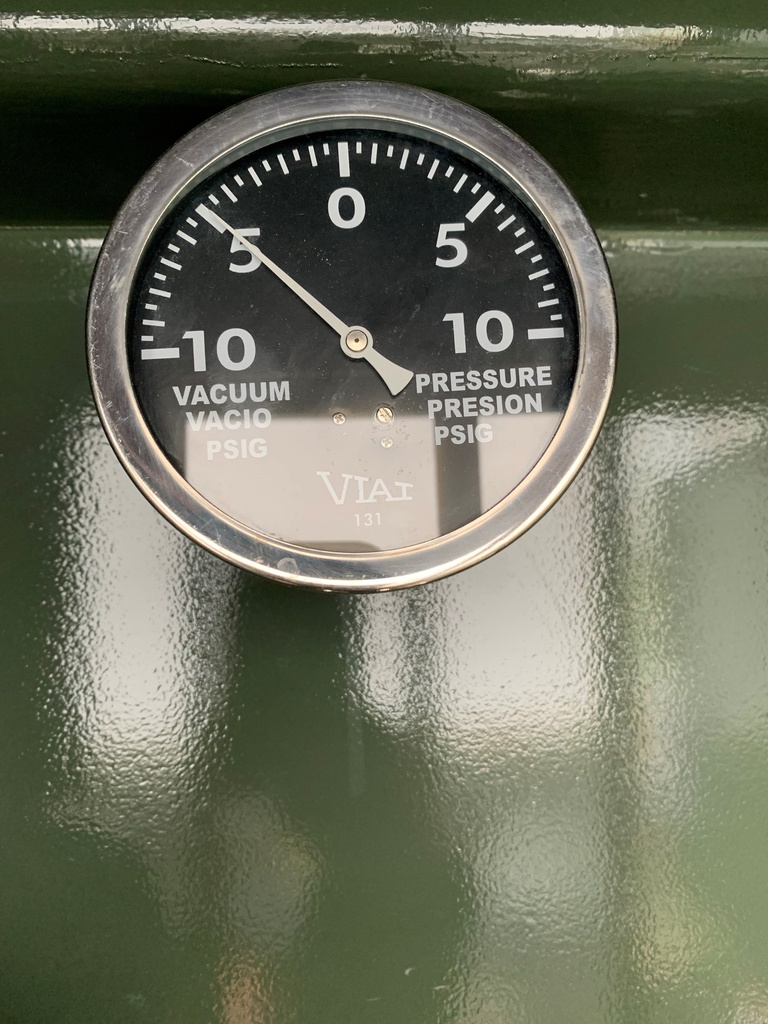

GUAGE, PRESSURE RELEIF VALVE, PRESSURE VACUUM GUAGE, DRAIN & SAMPLE
VALVE, J TAP CHANGER

HIGH VOLTAGE: 13800 DELTA BIL: 95 KV
LOW VOLTAGE: 415Y/239 BIL: 30 KV
TAPS: 14400-13800-13200-12470-12000

TOTAL WEIGHT: 15,611 LBS.
CORE & COILS: 6,706 LBS.
TANK & FIT.: 4,718 LBS.
OIL: 4,187 LBS. (558 GAL.)

DIMS: 88.9"H X 92.5"W X 90.9"D
