1200 Amp, GE, VB1-13.8-500-1, 15 KV, E/O, D/O, 240 AC CLOSE, 325 DC TRIP, ML-18
VACUUM CIRCUIT BREAKER
Product Number:
044436
Full Product Description
CB-19377

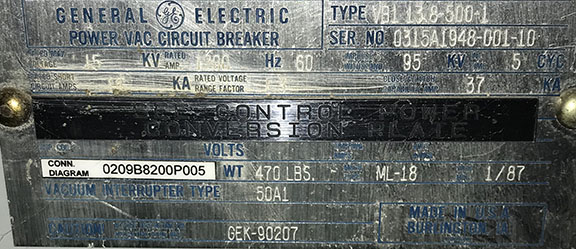

ONE (1) 1200 AMP GENERAL ELECTRIC VACUUM CIRCUIT BREAKER
TYPE VB1-13.8-500-1
13.8 KV
15 KV MAX
60 HZ
95 KV BIL
5 CYCLE INTERRUPT
18 KA SHORT CIRCUIT
1.3 VOLTAGE RANGE FACTOR
240 VAC CLOSE
325 VDC TRIP
37 KA CLOSE & LATCH
CONNECTION DIAGRAM: 0209B8200P005
50A1 VACUUM INTERRUPTER TYPE
WEIGHT: 470 LBS
ML-18 MECHANISM
ELECTRICALLY OPERATED
DRAW OUT
INST. BOOK: GEK-90207
ONE (1) 1200 AMP GENERAL ELECTRIC VACUUM CIRCUIT BREAKER
TYPE VB1-13.8-500-1
13.8 KV
15 KV MAX
60 HZ
95 KV BIL
5 CYCLE INTERRUPT
18 KA SHORT CIRCUIT
1.3 VOLTAGE RANGE FACTOR
240 VAC CLOSE
325 VDC TRIP
37 KA CLOSE & LATCH
CONNECTION DIAGRAM: 0209B8200P005
50A1 VACUUM INTERRUPTER TYPE
WEIGHT: 470 LBS
ML-18 MECHANISM
ELECTRICALLY OPERATED
DRAW OUT
INST. BOOK: GEK-90207
