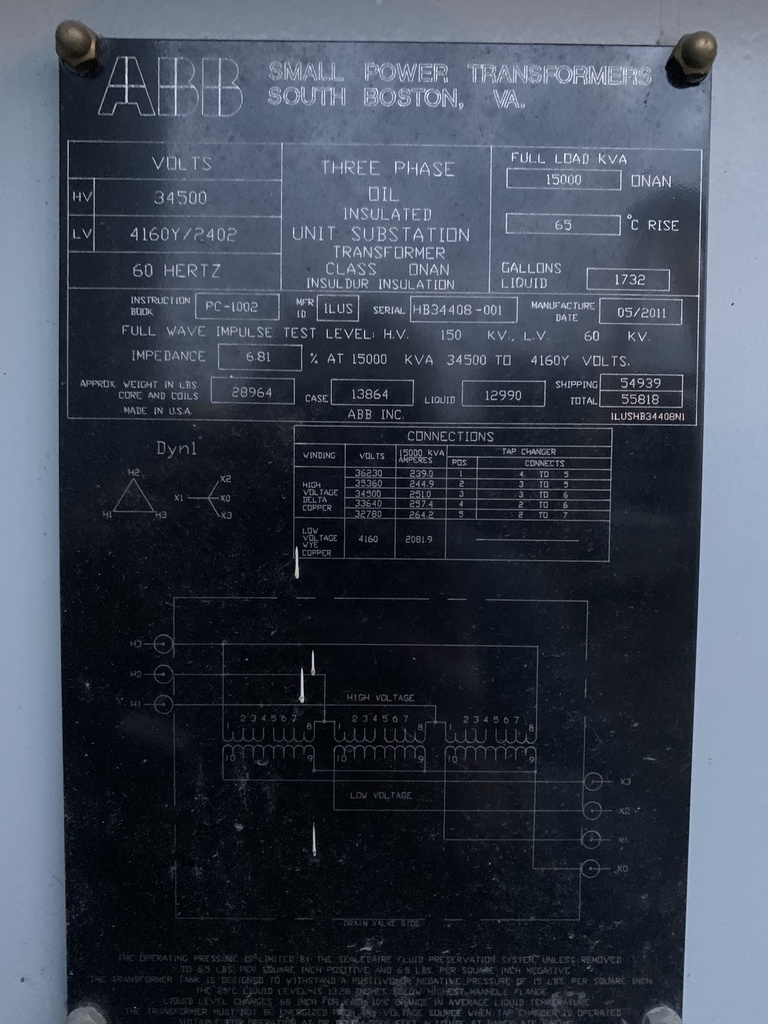

15000 KVA, Pri 34500 D, Sec 4160Y/2402, 2011, ABB;

ONE (1) 15000 KVA ABB SUBSTATION TRANSFORMER
THREE PHASE, 65 DEG. C RISE, 6.81% IMP.
CLASS ONAN, 60 HERTZ, DRAIN VALVE,
LIQUID TEMPERATURE GAUGE, MAGNETIC LIQUID
LEVEL GAUGE, COPPER WINDINGS, SIDE-SIDE BUSHINGS

HV: 34500 DELTA 150 KV BIL
LV: 4160Y/2402 60 KV BIL
TAPS: 36230-35360-34500-33640-32780

TANK AND FITTINGS: 13864 LBS.
CORE AND COIL: 28964 LBS.
FLUID-OIL: 12990 LBS. (1732 GALS)
TOTAL WEIGHT: 55818 LBS.
SHIPPING WEIGHT: 54939 LBS.

DIMENSIONS: 160.1"L x 159.5"W x 115.3"H
SHIPPPING: 123.3"L x 159.5"W x 115.3"H
