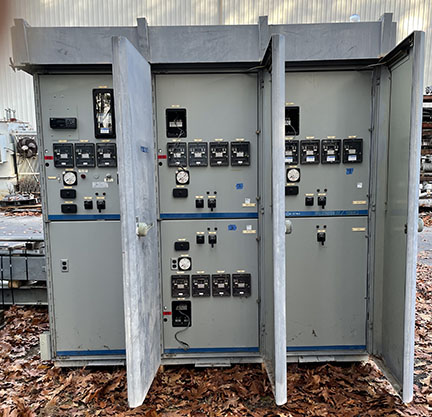

15 KV, 1200 AMP, NEMA 3R GENERAL ELECTRIC POWER VAC SWITCHGEAR LINE-UP

ONE (1) 15 KV, 1200 AMP, NEMA 3R GE POWER VAC LINE-UP CONSISTING OF-
(3 EA) 2-HIGH COLUMNS CONTAINING:

1 X MAIN
1 X POWER CONTROL SECTION
3 X FEEDERS
1 X FUTURE

COLUMN ONE COMPRISED OF:

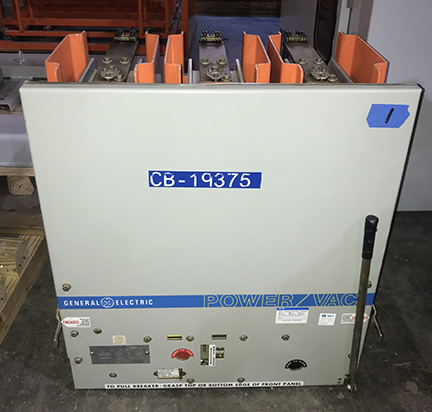

CB-19375:

ONE (1) 1200 AMP GENERAL ELECTRIC POWER VAC CIRCUIT BREAKER, VB1-13.8-500-1,DC
15 KV, 240 AC CLOSE, 340 DC TRIP, ML-18 MECHANISM<<

CB-19375A:

ONE (1) BREAKER CUBICLE WITH SWING DOOR CONTAINING:
1 X POWER LOGIC CIRCUIT MONITOR
1 X GE STATIC FREQUENCY RELAY SFF
4 X OVERCURRENT RELAYS
1 X AMMETER
1 X VOLTMETER
1 X CURRENT TEST DEVICE
1 X VOLTAGE TEST DEVICE
1 X AMMETER SWITCH
1 X BREAKER CONTROL SWITCH
1 X VOLTMETER SWTICH
INDICATING LIGHTS

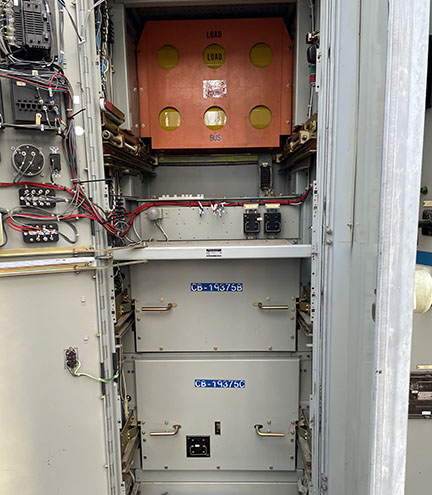

CB-19375B&C:

ONE (1) POWER CONTROL SECTION WITH SWING DOOR CONTAINING:
1 X CPT DRAWER
1 X PT DRAWER

COLUMN TWO COMPRISED OF:

CB-19376:

ONE (1) 1200 AMP GENERAL ELECTRIC POWER VAC CIRCUIT BREAKER, VB1-13.8-500-1,
15 KV, 240 AC CLOSE, 340 DC TRIP, ML-18 MECHANISM<

ONE (1)
CB-19376A:

ONE (1) BREAKER CUBICLE WITH SWING DOOR WHICH CONTAINS:
5 X OVERCURRENT RELAYS
1 X AMMETER
1 X CURRENT TEST DEVICE
1 X VOLTAGE TEST DEVICE
1 X AMMETER SWITCH
1 X BREAKER CONTROL SWITCH
INDICATING LIGHTS

CB-19377:

ONE (1) 1200 AMP GENERAL ELECTRIC POWER VAC CIRCUIT BREAKER, VB1-13.8-500-1,
15 KV, 240 AC CLOSE, 325 DC TRIP, ML-18 MECHANISM<

CB-19377A:

ONE (1) BREAKER CUBICLE WITH SWING DOOR WHICH CONTAINS:<
5 X OVERCURRENT RELAYS<
1 X AMMETER<
1 X CURRENT TEST DEVICE<
1 X VOLTAGE TEST DEVICE<
1 X AMMETER SWITCH<
-------------------------------------------------------
1 X BREAKER CONTROL SWITCH<
INDICATING LIGHTS

COLUMN THREE COMPRISED OF:

CB-19378:

ONE (1) 1200 AMP GENERAL ELECTRIC POWER VAC CIRCUIT BREAKER, VB1-13.8-750-2,
15 KV, 125 AC CLOSE, 125 DC TRIP, ML-18 MECHANISM

ONE (1) FUTURE

OVERALL DIMENSIONS: 108"H x 108"W x 98"D
