2000 Amp, SOUTHERN STATES, No. EC-1V, 123000 V, VERTICAL MOUNT, CENTER BREAK
GANG OPERATED AIR BREAK SWITCH
Product Number:
044421
Full Product Description
CB-19390
ONE (1) 2000 AMP SOUTHERN STATES GANG OPERATED SWITCH
TYPE EC-1V
STYLE 20423226
123 KV
164 KV PEAK
60 HERTZ
550 BIL
63 KA INTERRUPT
3 SEC. DURATION
ELECTRONICALLY OPERATED
VERTICAL MOUNT
CENTER BREAK
DEAD-END H-FRAME STRUCTURE (12238SM)

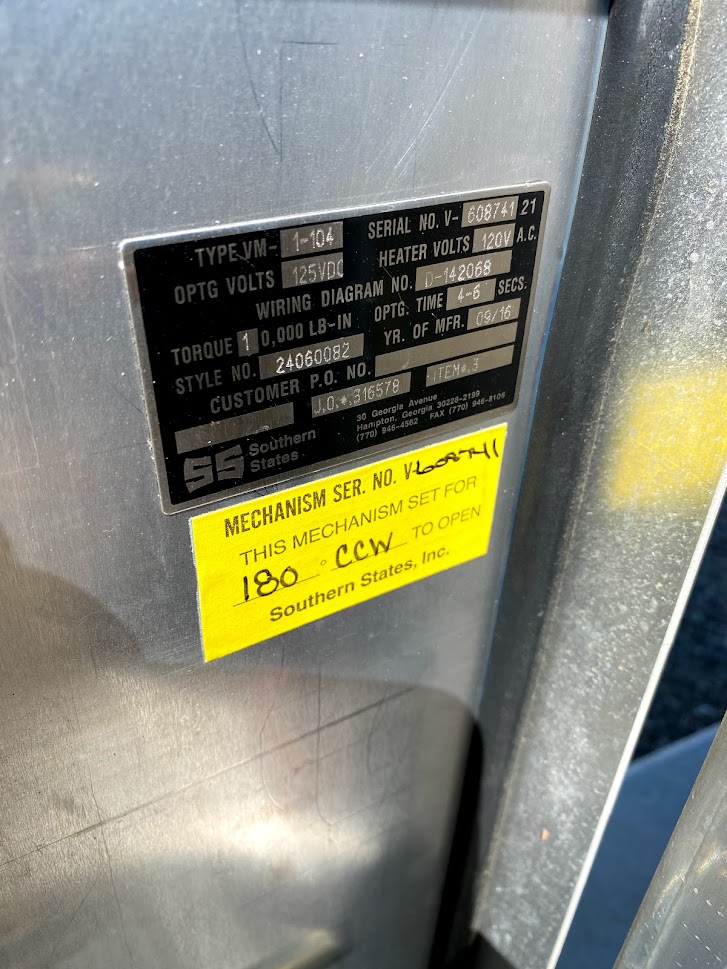

CONTROL BOX:
TYPE VM-1-104
125 VDC OPTG
120 VAC HEATER
10,0000 LB TORQUE
4-6 SEC OPTG
STYLE NO. 24060082
WIRING DIAGRAM D-142068
MFG 9/16
S/N V-608741 21
ONE (1) 2000 AMP SOUTHERN STATES GANG OPERATED SWITCH
TYPE EC-1V
STYLE 20423226
123 KV
164 KV PEAK
60 HERTZ
550 BIL
63 KA INTERRUPT
3 SEC. DURATION
ELECTRONICALLY OPERATED
VERTICAL MOUNT
CENTER BREAK
DEAD-END H-FRAME STRUCTURE (12238SM)
CONTROL BOX:
TYPE VM-1-104
125 VDC OPTG
120 VAC HEATER
10,0000 LB TORQUE
4-6 SEC OPTG
STYLE NO. 24060082
WIRING DIAGRAM D-142068
MFG 9/16
S/N V-608741 21
