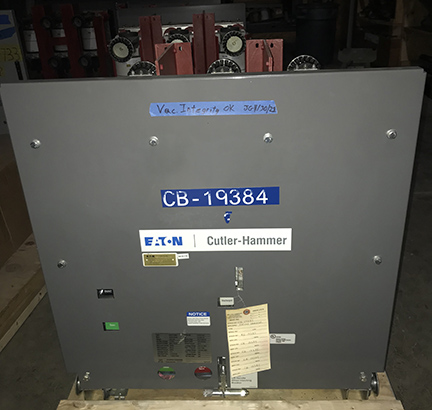

3000 Amp, EATON, 50VCP-W63, 4760 V., 120 VAC CLSE & CAP TRP, 125 VDC/AC MOTOR
VACUUM CIRCUIT BREAKER
Product Number:
044404
Full Product Description
CB-19384
ONE (1) 3000 AMP EATON/CUTLER-HAMMER VACUUM BREAKER AS A MAIN
TYPE 50VCP-W63
STYLE 4A35142G47
4760 VOLT
4.76 KV MAX
60 HERTZ
60 KV BIL
5 CYCLE INTERRUPT
63 KA SHORT CIRCUIT
1.0 VOLTAGE RANGE FACTOR "K"
170 KA CLOSE & LATCH CURRENT
125 VDC/AC MOTOR
120 VAC CLOSE & TRIP
WIRING DIAGRAM 691C386H54
WEIGHT: 525 LBS.
INSTRUCTION BOOKLET 32-255-1G
ONE (1) 3000 AMP EATON/CUTLER-HAMMER VACUUM BREAKER AS A MAIN
TYPE 50VCP-W63
STYLE 4A35142G47
4760 VOLT
4.76 KV MAX
60 HERTZ
60 KV BIL
5 CYCLE INTERRUPT
63 KA SHORT CIRCUIT
1.0 VOLTAGE RANGE FACTOR "K"
170 KA CLOSE & LATCH CURRENT
125 VDC/AC MOTOR
120 VAC CLOSE & TRIP
WIRING DIAGRAM 691C386H54
WEIGHT: 525 LBS.
INSTRUCTION BOOKLET 32-255-1G
