18000/30000 KVA, Pri 115000 D, Sec 34500Y/19920, GENERAL ELECTRIC, COPPER:1
SUBSTATION TRANSFORMER
Product Number:
044385
Full Product Description

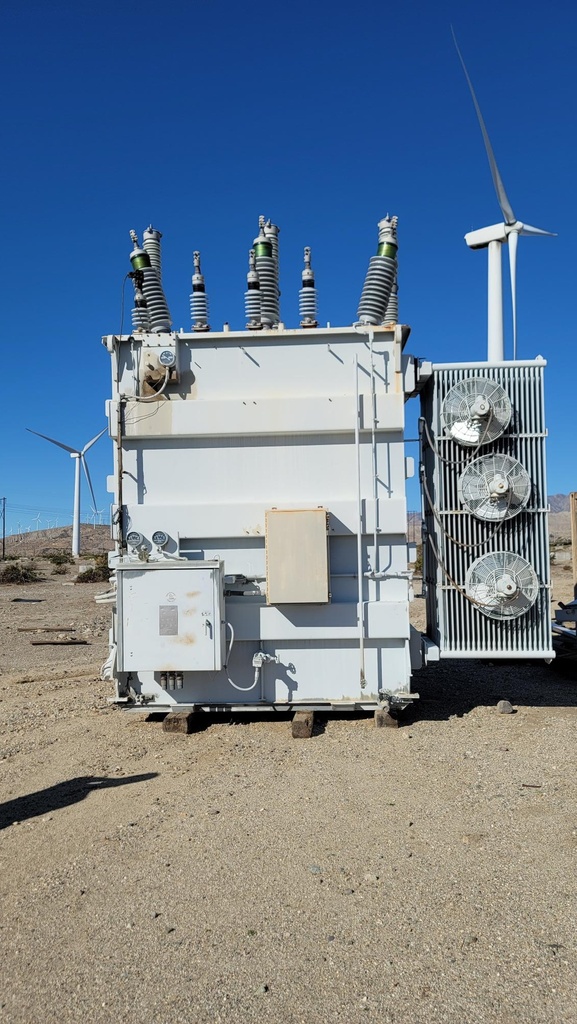

ONE (1) 18000/24000/30000 KVA GENERAL ELECTRIC SUBSTATION TRANSFORMER,
3 PHASE, 60 HERTZ, CLASS OA/FA/FOA, 65 DEG. C RISE, 9.10% IMPEDANCE,
COPPER WINDINGS, 3 X 600:5 HV MRCT'S, 3 X 600:5 LV MRCT'S, 1 X 1200:5
LV NEUTRAL MRCT, TOP X TOP BUSHINGS
HIGH VOLTAGE: 115000 DELTA BIL: 550 KV
LOW VOLTAGE: 34500Y/19920 BIL: 200 KV
TAPS: 120750-117875-115000-112125-109250
TOTAL WEIGHT: 85,600 LBS.
CORE & COILS: 39,200 LBS.
TANK & FIT.: 20,100 LBS.
OIL: 26,300 LBS. (3,580 GALS.)
3 PHASE, 60 HERTZ, CLASS OA/FA/FOA, 65 DEG. C RISE, 9.10% IMPEDANCE,
COPPER WINDINGS, 3 X 600:5 HV MRCT'S, 3 X 600:5 LV MRCT'S, 1 X 1200:5
LV NEUTRAL MRCT, TOP X TOP BUSHINGS
HIGH VOLTAGE: 115000 DELTA BIL: 550 KV
LOW VOLTAGE: 34500Y/19920 BIL: 200 KV
TAPS: 120750-117875-115000-112125-109250
TOTAL WEIGHT: 85,600 LBS.
CORE & COILS: 39,200 LBS.
TANK & FIT.: 20,100 LBS.
OIL: 26,300 LBS. (3,580 GALS.)
