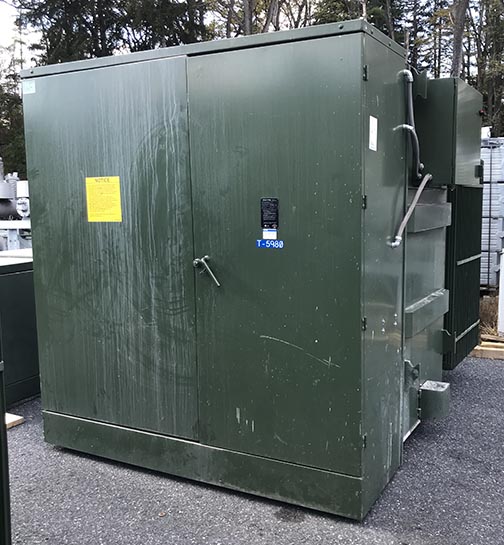

7500 KVA, Pri 26400 D, Sec 4160Y/2400, 2016, COOPER, DEAD FRONT, RADIAL FEED:1

T-5980

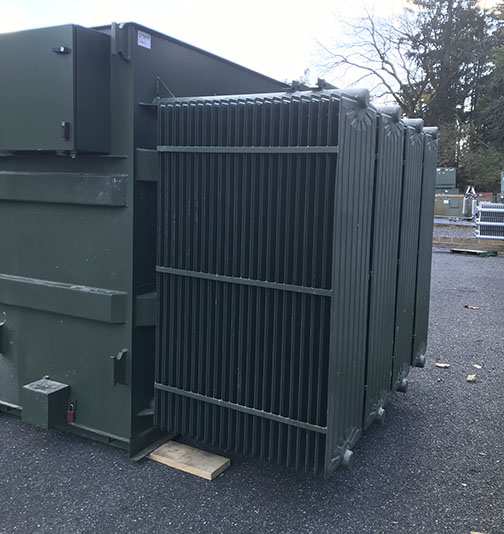

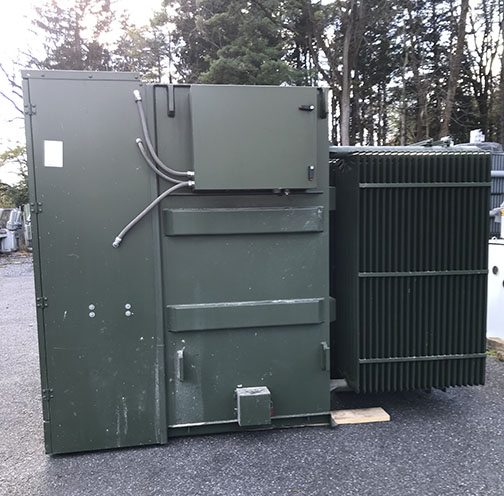

ONE (1) 7500 KVA COOPER PADMOUNT TRANSFORMER, 3 PHASE, 60 HERTZ, CLASS KNAN,

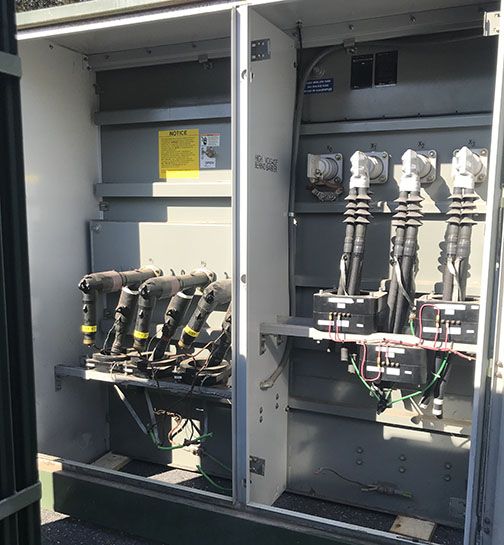

65 DEG. RISE, 7.1% IMPEDENCE, DEAD FRONT, RADIAL FEED, COPPER

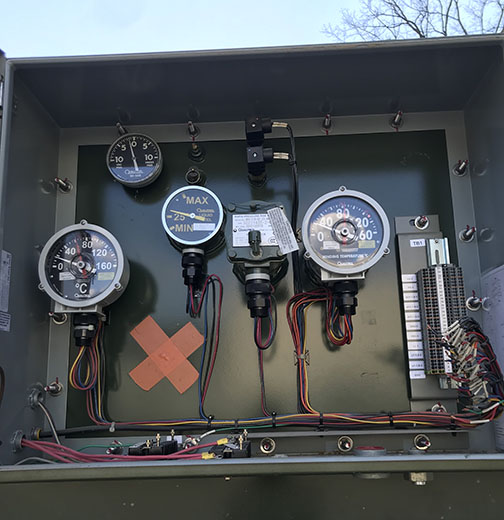

WINDINGS, TEMPERATURE GUAGE, PRESSURE GAUGE, LIQUID LEVEL GAUGE,
WINDING TEMPERATURE GAUGE, PRESSURE RELIEF DEVICE, DRAIN & SAMPLE
VALVE, MFG. 2016, S/N 1659000205

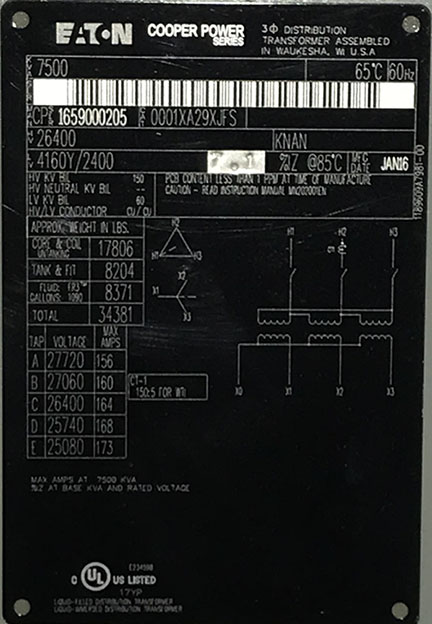

HIGH VOLTAGE: 26400 DELTA HV BIL: 150 KV
LOW VOLTAGE: 4160Y/2400 LV BIL: 60 KV
TAPS: 27720-27060-26400-25740-25080

TOTAL WEIGHT: 34381 LBS.
CORE & COIL: 17806 LBS.
TANK & FIT: 8204 LBS.
FLUID: 8371 LBS. (GAL. 1090)

DIMENSIONS: 100"H X 101"L X 120"D
