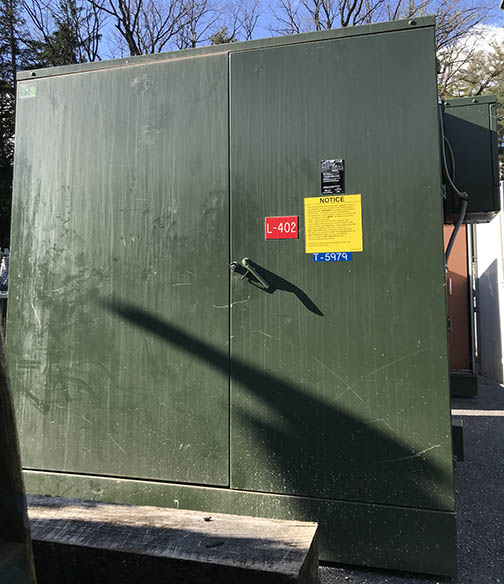

7500 KVA, Pri 26400 D, Sec 4160Y/2400, COOPER, DEAD FRONT, RADIAL FEED

T-5979

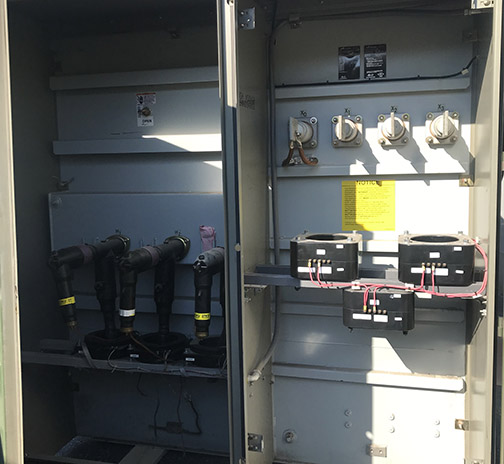

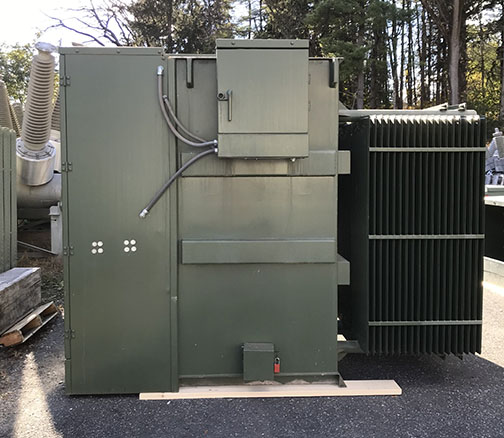

ONE (1) 7500 KVA COOPER PADMOUNT TRANSFORMER, 3 PHASE, 60 HERTZ, CLASS KNAN,
65 DEG. RISE, 6.5% IMPEDENCE, DEAD FRONT, RADIAL FEED, COPPER

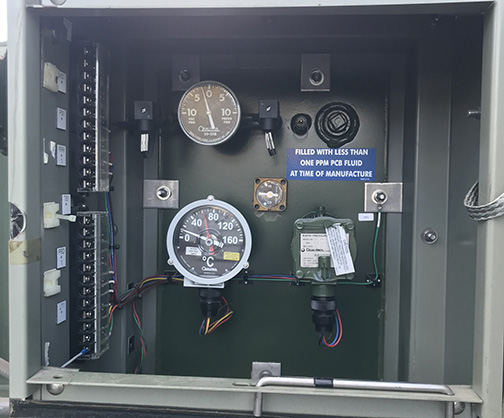

WINDINGS, TEMPERATURE GUAGE, PRESSURE GUAGE, LIQUID LEVEL GUAGE,
PRESSURE RELIEF DEVICE, DRAIN & SAMPLE VALVE, MFG. 2014, S/N
1459000278

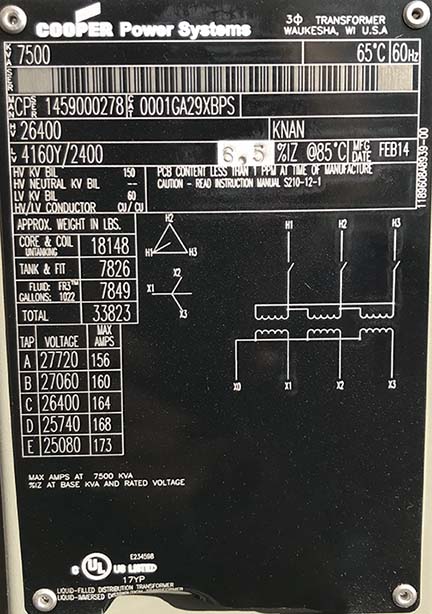

HIGH VOLTAGE: 26400 DELTA HV BIL: 150 KV
LOW VOLTAGE: 4160Y/2400 LV BIL: 60 KV
TAPS: 27720-27060-26400-25740-25080
TOTAL WEIGHT: 33823 LBS.
CORE & COIL: 18148 LBS.
TANK & FIT: 7826 LBS.
FLUID: 7849 LBS. (GAL. 1022)
DIMENSIONS: 100"H X 101"L X 114"D
