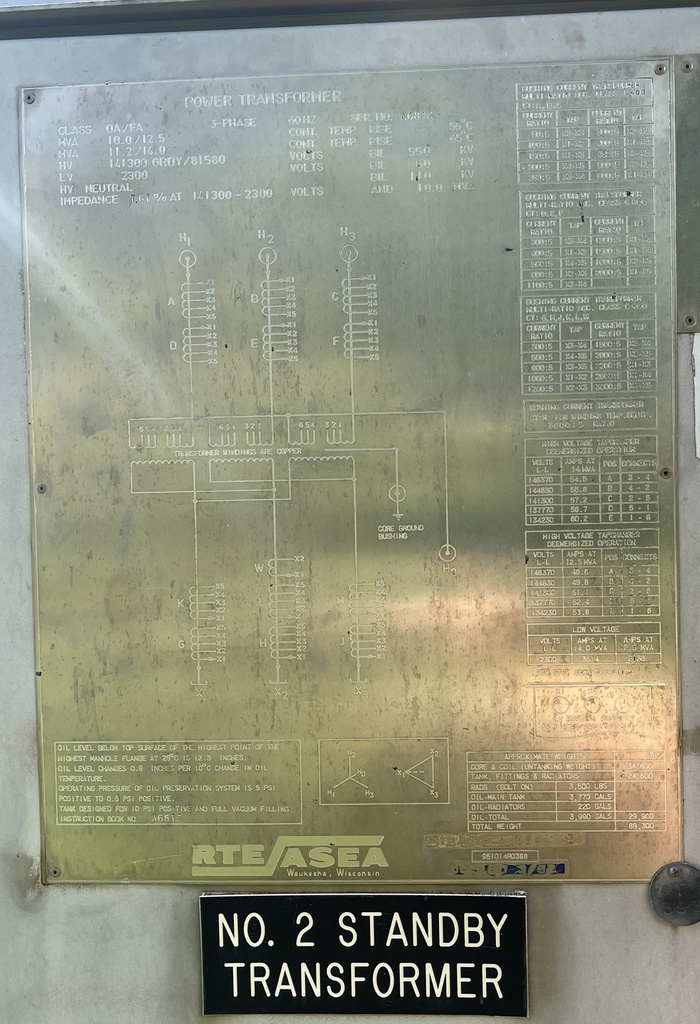

10000/14000 KVA, Pri 141300GRDY/81580, Sec 2300 D, RTE ASEA, COPPER:1
SUBSTATION TRANSFORMER
Product Number:
044359
Full Product Description
ONE (1) 10000/11200/12500/14000 KVA RTE ASEA SUBSTATION TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS OA/FA, 55/65 DEG. C RISE, 7.67% IMPEDANCE, COPPER
WINDINGS, 3 X 600:5 HV MRCT'S, 3 X 2000:5 HV MRCT'S, 6 X 3000:5 LV
MRCT'S
HIGH VOLTAGE: 141300GRDY/81580 BIL: 550 KV
LOW VOLTAGE: 2300 DELTA BIL: 60 KV
TAPS: 148370-144830-141300-137770-134230
TOTAL WEIGHT: 89,300 LBS.
CORE & COILS: 34,800 LBS.
TANK & FIT.: 24,600 LBS.
OIL: 29,900 LBS. (3,990 GALS.)
