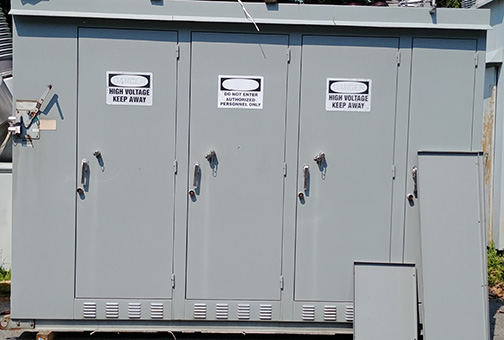

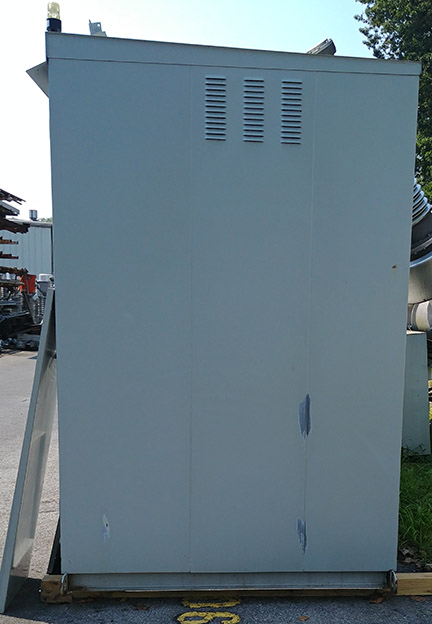

1800 KVAR NORTHEAST POWER SYSTEMS, NEPSI, 5 KV CAPACITOR BANK, FUSED, OUTDOOR

B-13602A-E:

ONE (1) OUTDOOR HOUSED NORTHEAST POWER SYSTEMS CAPACITOR BANK 3 STEP, 2 STAGE,
5 COLUMNS: 1 X INCOMING, 3 X FOR STAGES, 1 X CONTROL PANEL

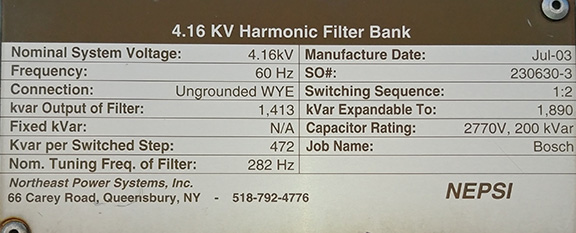

ONE (1) 1800 KVAR NEPSI CAPACITOR BANK
4160 VOLT
60 HERTZ
3 PHASE
95 KV BIL
UNGROUNDED WYE CONNECTED
KVAR PER SWITCHED STEP - 472
NOMINAL TUNING FREQUENCY OF FILTER - 282 HZ
SWITCHING SEQUENCE - 1:2
KVAR EXPANDABLE TO - 1890
CAPACITOR RATING - 2770 V, 200 KVAR
RELAY/METER CLASS CT'S - 1200:5 RATIO
6 KV HEAVY DUTY SURGE ARRESTERS
CONTROL PANEL - OVERVOLTAGE RELAY & TEMPERATURE RELAY

STAGE 1 - 471 KVAR, 65.4 HZ AMPS
400 AMP 6.9 KV CONTACTOR, 3 X 100 AMP 4.3 KV MAX., 50 KA INT. MAX. FUSES CAT.
#43F100-IVBT

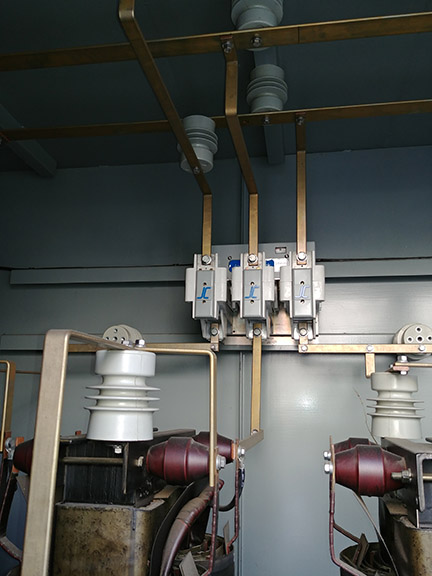

3 X 200 KVAR, 2 BUSHING GENERAL ELECTRIC 2770 V CAPACITORS, 95 KV BIL

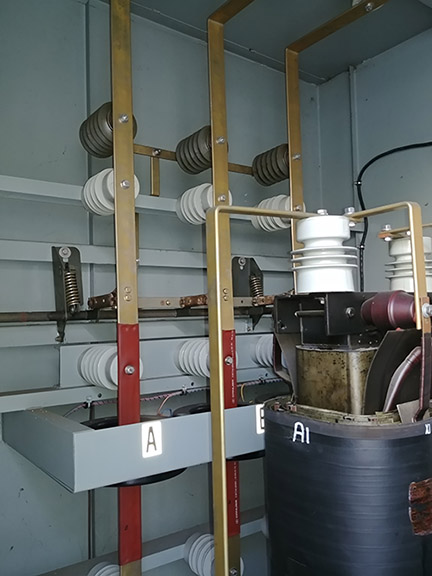

3 X HARMONIC FILTER REACTOR - 1 X FULL AND 2 X TAP

STAGE 2 - 942 KVAR, 130.7 AMPS
400 AMP 6.9 KV CONTACTOR, 6 X 100 AMP 4.3 KV MAX., 50 KA INT. MAX. FUSES CAT.
#43F100-IVBT
6 X 200 KVAR, 2 BUSHING GENERAL ELECTRIC 2770 V CAPACITORS, 95 KV BIL

MFG. 2003
