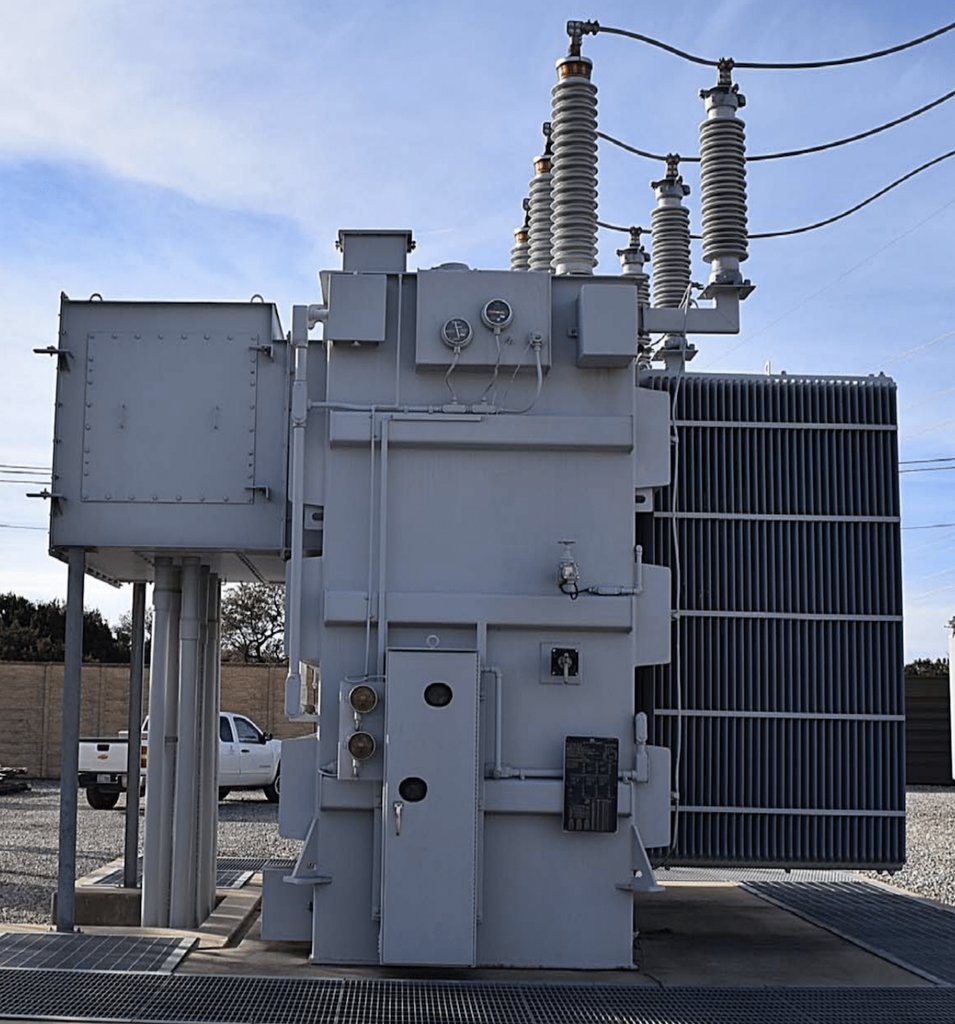

12/13.4/16/17.9/20/22.4 MVA, Pri 138000 D, Sec 26180 Y, KUHLMAN, LTC

<
ID 44325<
<
ONE (1) 12/13.4/16/17.92/20/22.4 MVA KUHLMAN LTC SUBSTATION TRANSFORMER<
3-PHASE, 60 HERTZ, CLASS OA/FA/FA, IMPENDANCE, 55/65 DEG. C RISE,
COPPER WINDINGS, TOP-TOP BUSHING W/ MRCT'S<
<
HV: 138000/69000 DELTA BIL: 550X350 KV<
LV: 26180Y/15120 BIL: 150 KV<
HV TAPS: AT 138000 = 44900-141450-138000-134500-131100
HV TAPS AT 69000 = 72450-70725-69000-67275-65550
LV TAPS: 28760 - 23505 IN 32 STEPS
<
TANK & FITTINGS: 27647 LBS.<
CORE & COIL: 40020 LBS.<
RADIATORS: 7018 LBS.
TANK OIL: 49878 LBS. (6650 GALS.)
RADIATOR OIL: 2767 LBS. (369 GALS.)
LTC OIL: 2100 LBS. (280 GALDS.)
TOTAL WEIGHT: 129430 LBS.<

<
