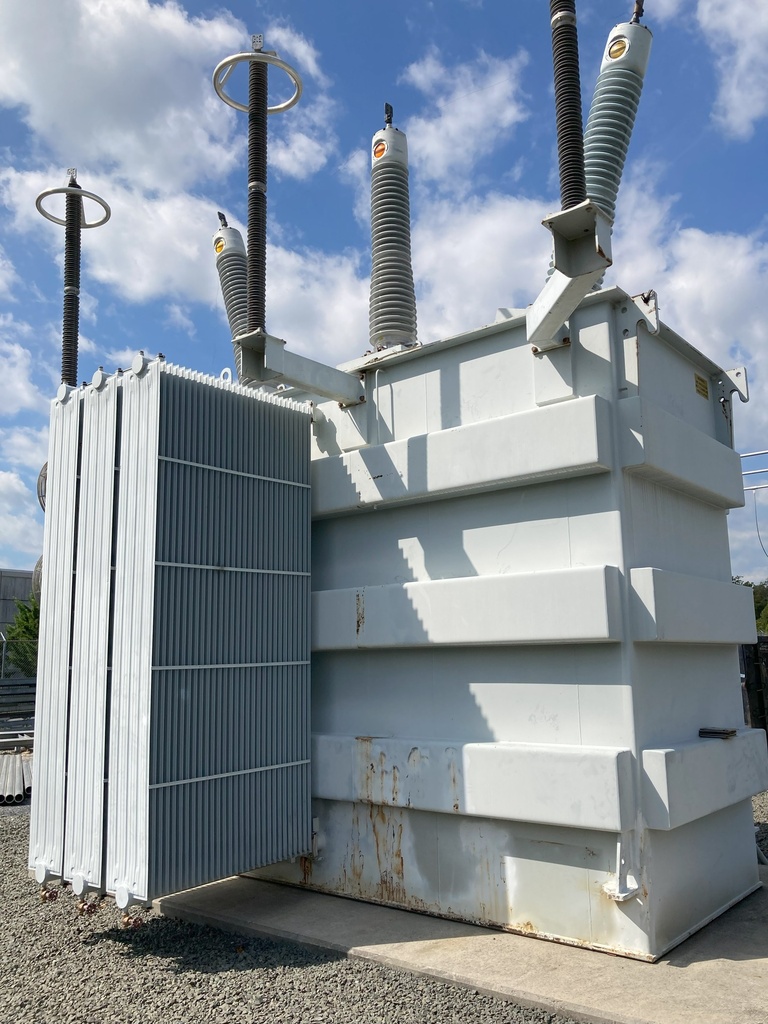

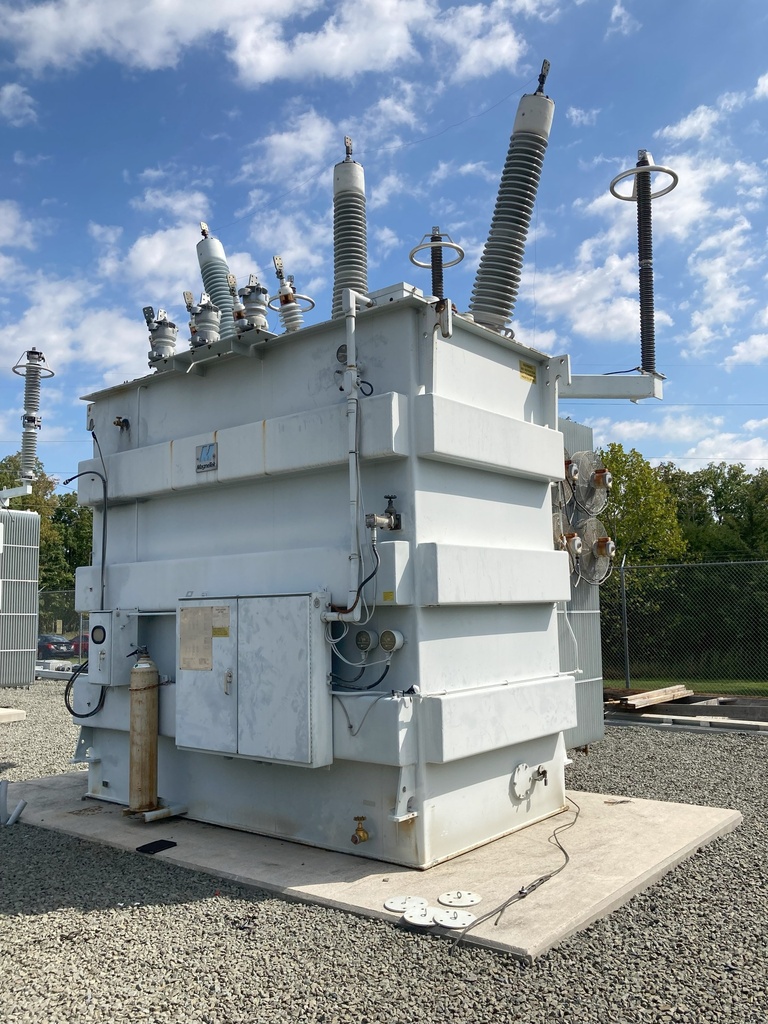

12000/20000 KVA, Pri 230000 D, Sec 13200Y/7620, 1991, WAUKESHA MAGNETEK:1

ONE (1) 12000/13400/16000/17900/20000/22400 KVA MAGNETEK (WAUKESHA) SUBSTATION
TRANSFORMER, 3 PHASE, 60 HERTZ, CLASS OA/FA/FA, 55/65 DEGREE C RISE,
8.09% IMPEDANCE, COPPER WINDINGS, 6 X 600:5 HV MRCT'S C400, 2 X 600:5
LV NEUTRAL MRCT'S C400, 6 X 1200:5 LV MRCT'S C400, TOP X TOP BUSHINGS,

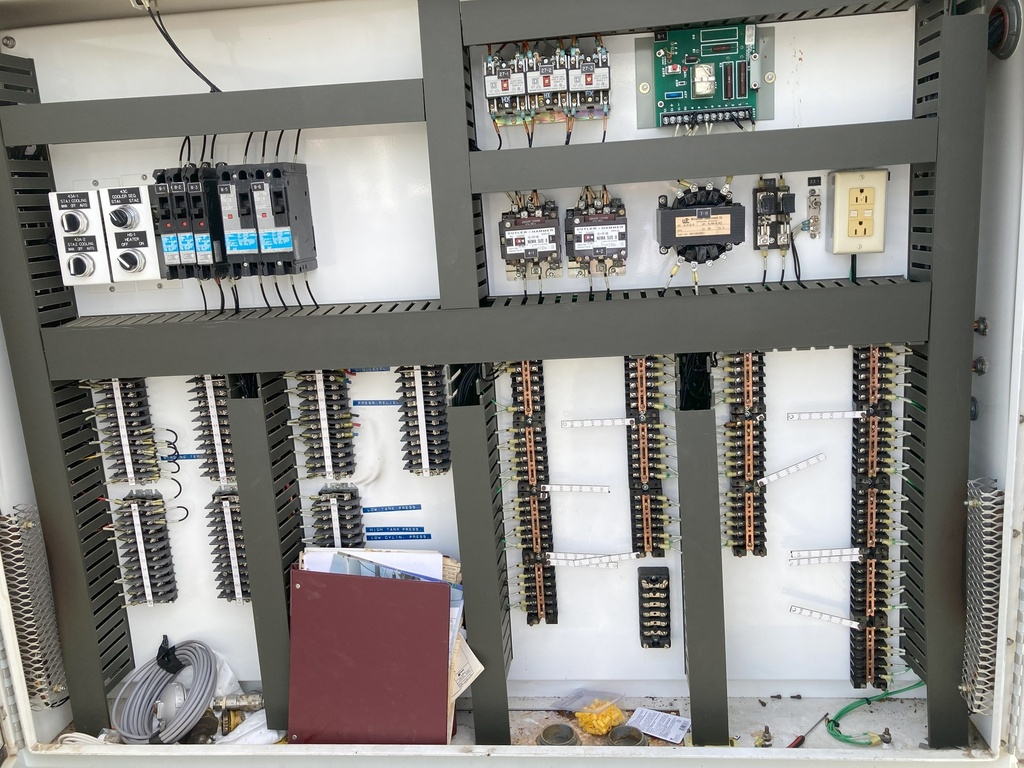

LIQUID LEVEL GAUGE WITH CONTACTS, LIQUID TEMPERATURE GAUGE W/CONTACTS,
WINDING TEMPERATURE GAUGE WITH CONTACTS, DRAIN & SAMPLE VALVE, UPPER
FILTER PRESS VALVE, PRESSURE RELIEF DEVICE WITH CONTACTS, HV & LV
SURGE ARRESTERS, MFG. 1991

HIGH VOLTAGE: 230000 DELTA BIL: 900 KV
LOW VOLTAGE: 13200Y/7620 BIL: 110 KV
TAPS: 241500-235750-230000-224250-218500

TOTAL WEIGHT: 138,400 LBS.
CORE & COILS: 46,600 LBS.
TANK & FIT.: 38,100 LBS.
OIL: 53,700 LBS. (7,155 GALS.)
DIMENSIONS: 258"H X 171"W X 219"L
SHIPPING: 169"H X 112"W X 184"L
