  2. 12000/22400 KVA, Pri 69000 D, Sec 12470Y/7200, GENERAL ELECTRIC, COPPER:1

12000/22400 KVA, Pri 69000 D, Sec 12470Y/7200, GENERAL ELECTRIC, COPPER:1

https://belyeapower.redstormlabs.com/web/image/product.template/33919/image_1920?unique=632d99c

SUBSTATION TRANSFORMER

$ 0.00 0.0 USD $ 0.00

$ 0.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Product Number: 044314
    Request Quote

    Full Product Description

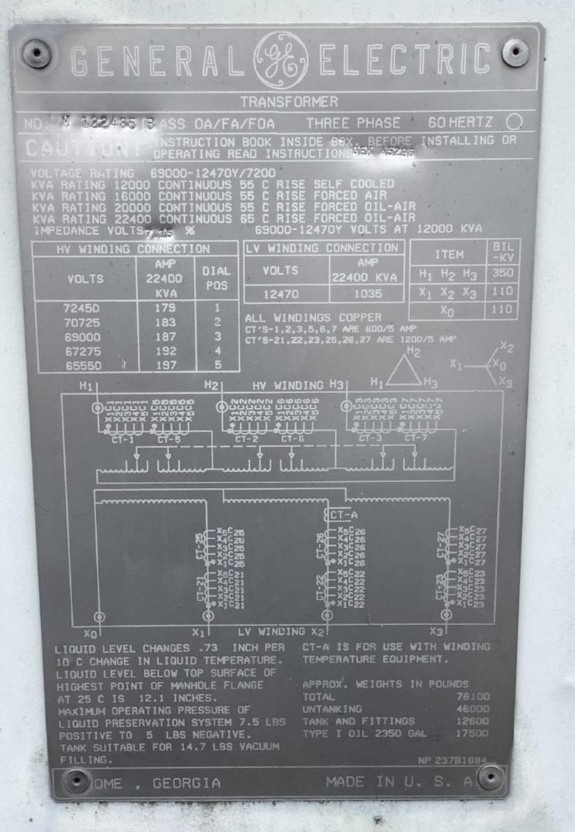

    ONE (1) 12000/16000/20000/22400 KVA GENERAL ELECTRIC SUBSTATION TRANSFORMER,
    3 PHASE, 60 HERTZ, CLASS OA/FA/FOA, 55/65 DEGREE C RISE, 7.15%
    IMPEDANCE, COPPER WINDINGS, 6 X 600:5 HV MRCT'S, 6 X 1200:5 LV
    MRCT'S, TOP X TOP BUSHINGS

    HIGH VOLTAGE: 69000 DELTA BIL: 350 KV
    LOW VOLTAGE: 12470Y/7200 BIL: 110 KV
    TAPS: 72450-70725-69000-67275-65550

    TOTAL WEIGHT: 76,100 LBS.
    CORE & COILS: 46,000 LBS.
    TANK & FIT.: 12,600 LBS.
    OIL: 17,500 LBS. (2,350 GALS.)
