  2. 1200 Amp, GENERAL ELECTRIC, VB1-13.8-1000-3, 15 KV, 2000, 125 VDC, ML18 MECH.

1200 Amp, GENERAL ELECTRIC, VB1-13.8-1000-3, 15 KV, 2000, 125 VDC, ML18 MECH.

https://belyeapower.redstormlabs.com/web/image/product.template/33906/image_1920?unique=fb47b93

VACUUM BREAKER

$ 0.00 0.0 USD $ 0.00

$ 0.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Product Number: 044301
    Request Quote

    Full Product Description

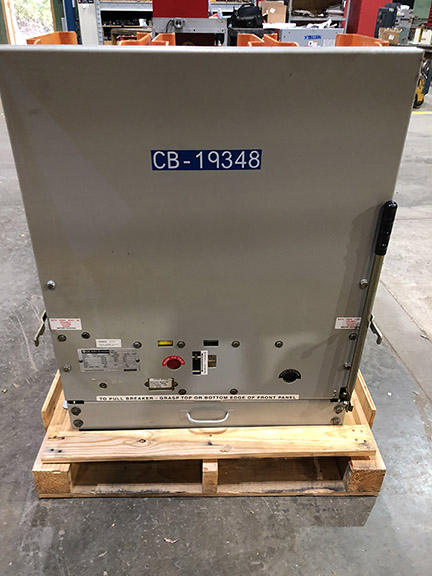

    CB-19348:

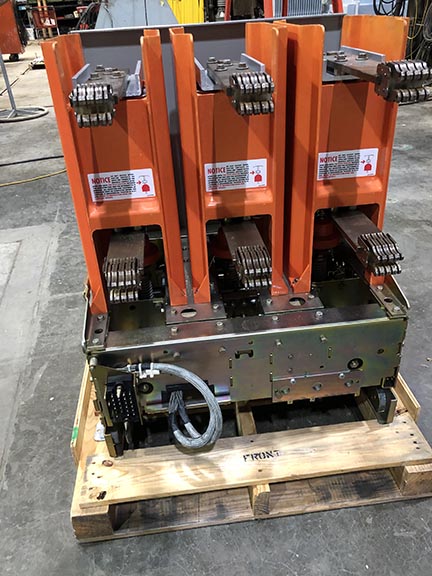

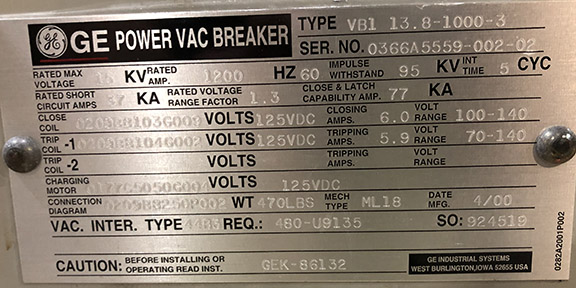

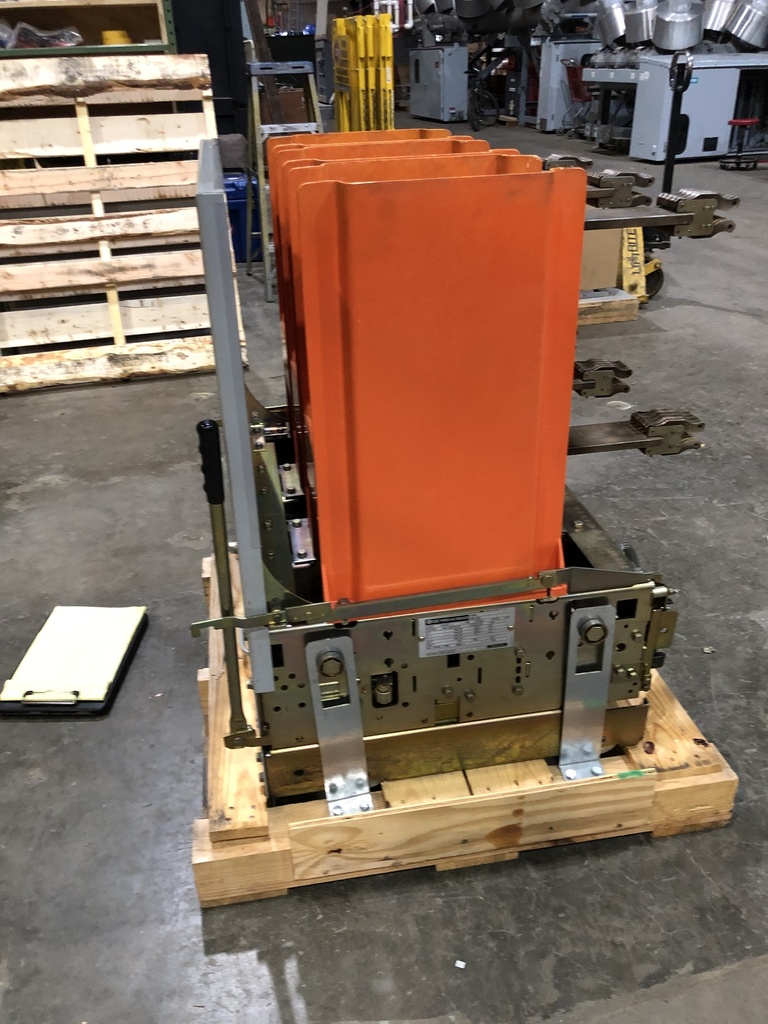

    ONE (1) 1200 AMP GENERAL ELECTRIC VACUUM BREAKER
    TYPE VB1-13.8-1000-3
    15 KV MAX. VOLTAGE
    37 KA SHORT CIRCUIT
    1.3 VOLTAGE RANGE FACTOR
    5 CYCLE INTERRUPT
    95 KV BIL
    60 HERTZ
    125 VDC CLOSE & TRIP
    77 KA CLOSE & LATCH
    MECHANISM TYPE ML18
    INTERRUPTER TYPE 44B3
    INST. BOOK GEK-86132
    470 LBS.
    MFG. 04/2000

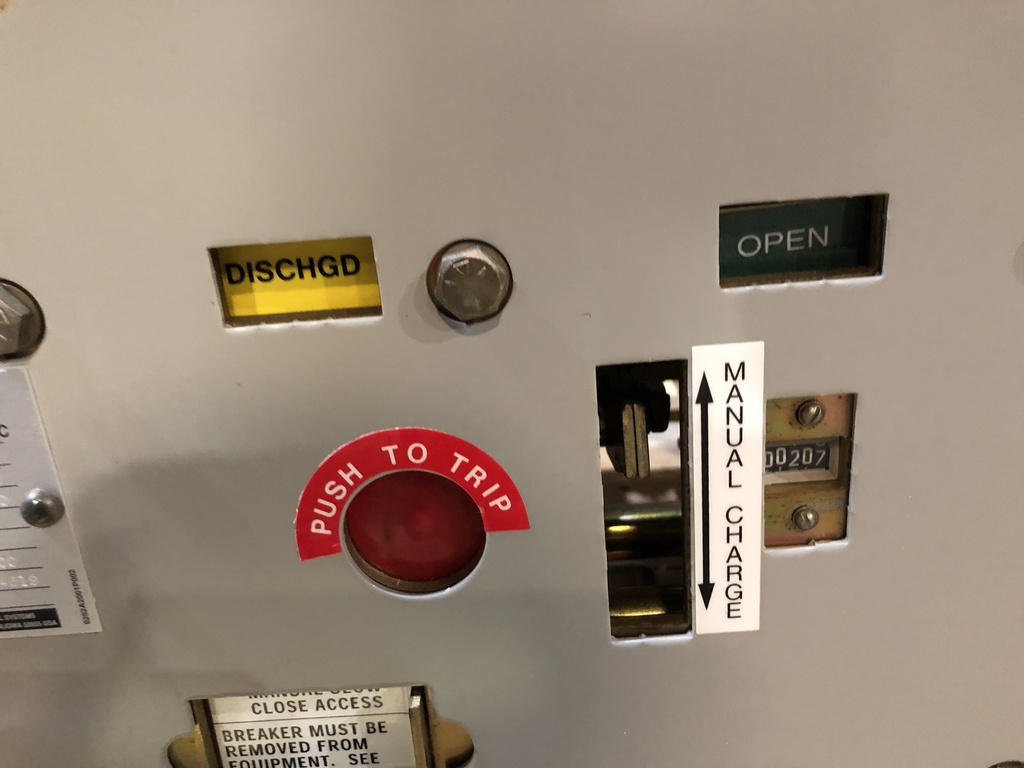

    207 OPERATIONS
    S/N 0366A5559-002-02
