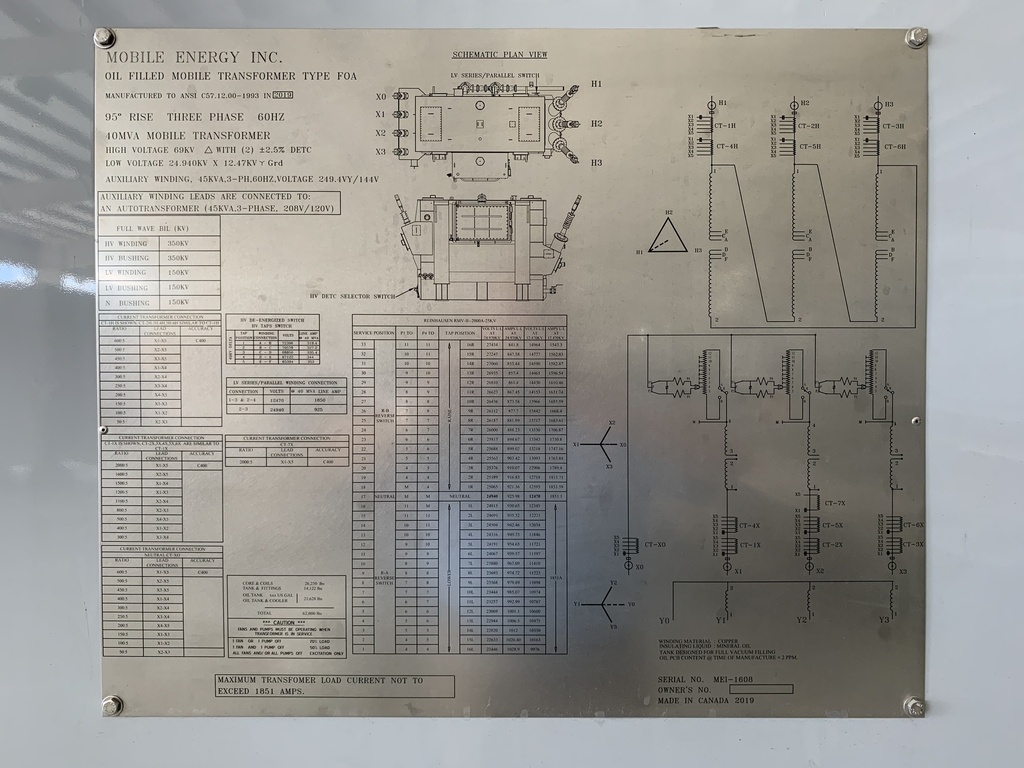

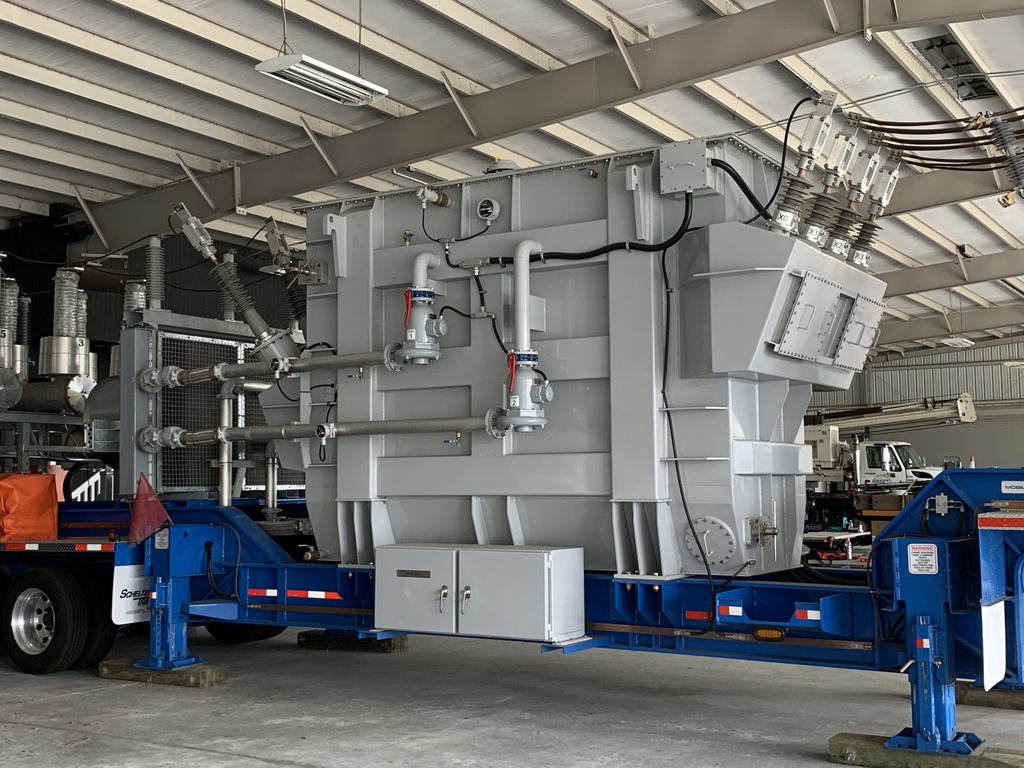

40 MVA, Pri 69000 D, Sec 24940GRDY/14400x12470GRDY/7200, LTC MOBILE SUBSTATION

ONE (1) 40 MVA MOBILE ENERGY OIL FILLED MOBILE TRANSFORMER WITH LOAD TAP
CHANGING, 3 PHASE, 60 HERTZ, CLASS OA, 95 DEG. C RISE, 45 KVA
AUTOTRANSFORMER (208/120 V), 6 X 600:5 HV MRCT'S, 6 X 2000:5 LV
MRCT'S, COPPER WINDINGS, 2000 AMP GE DT1-72.5FK-F1 BREAKER, ABB
HV & LV ARRESTERS, 2000 AMP ABB, 27 KV R-MAG BREAKER, BATTERIES &
BATTERY CHARGER, DOUBLE DROP 3 AXLE TRAILER

HIGH VOLTAGE: 69000 DELTA BIL: 350 KV
LOW VOLTAGE: 24940GRDY/14400 X 12470GRDY/7200 BIL: 150 KV
HV TAPS: 72306-70578-68850-67122-65394
LV TAPS: 27434 TO 22446 IN 32 STEPS

TRANSFORMER:
TOTAL WEIGHT: 87,600 LBS.
CORE & COILS: 40,645 LBS.
TANK & FIT.: 17,176 LBS.
TANK OIL: 25,444 LBS. (3,533 GALS.)
LTC OIL: 2,025 LBS. (268 GALS.)
SUBSTATION:
TRANSFORMER: 87,600 LBS.
OIL COOLER: 500 LBS.
ACCESSORIES: 16,950 LBS.
TRAILER: 25,790 LBS.
TOTAL: 130,840 LBS.
