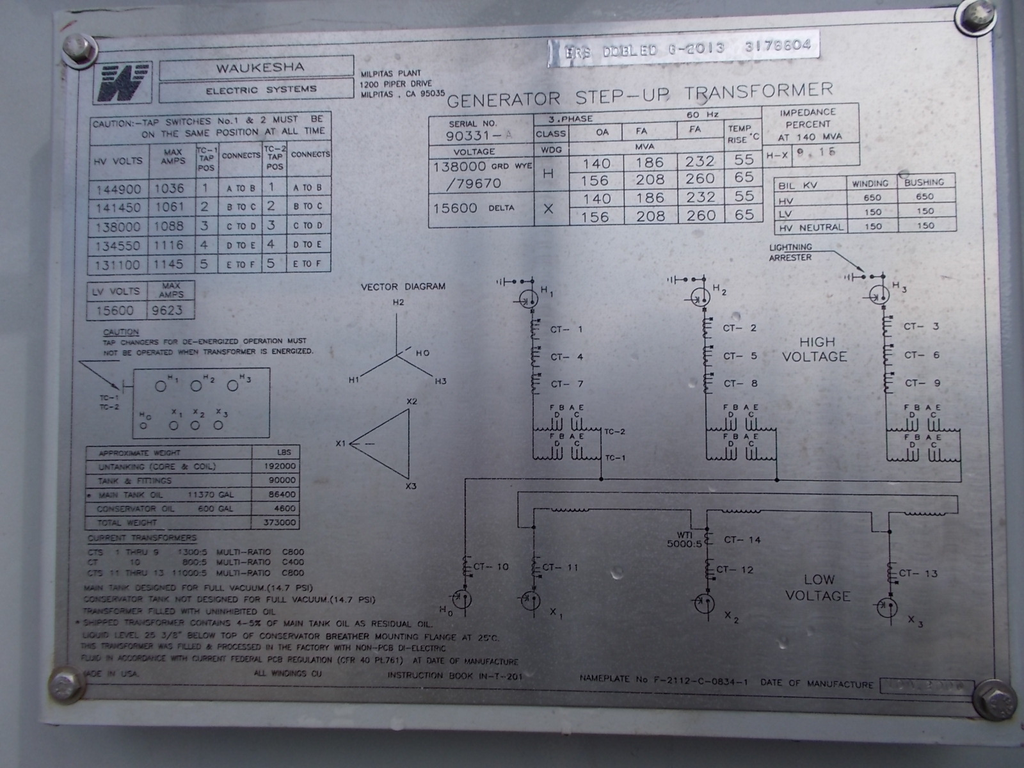

140000/260000 KVA, Pri 138000Y/79670, Sec 15600 D, WAUKESHA, GSU:1

ONE (1) 140/156/186/208 MVA WAUKESHA GENERATOR STEP-UP TRANSFORMER,
3 PHASE, 60 HERTZ, 55/65 DEG. C RISE, CLASS OA/FA/FA, 9.16%
IMPEDANCE, COPPER WINDINGS, 9 X 1300:5 HV MRCT'S C800, 3 X 11000:5
LV MRCT'S C800, TOP X TOP WINDINGS

HIGH VOLTAGE: 138000GRDY/79670 BIL: 650 KV
LOW VOLTAGE: 15600 DELTA BIL: 150 KV
NEUTRAL: BIL: 150 KV
TAPS: 144900-141450-138000-134550-131100

APPROXIMATE WEIGHT:
UNTANKING: 192,000 LBS.
TANK AND FITTINGS: 90,000 LBS.
MAIL TANK OIL: 86,400 LBS. (11,370 GALS.)
CONSERVATOR OIL: 4,600 LBS. (600 GALS.)
TOTAL WEIGHT: 373,000 LBS.
