2500/3125 KVA, Pri 6900 D, Sec 480Y/277, EATON, FR3, 2013, COPPER:1

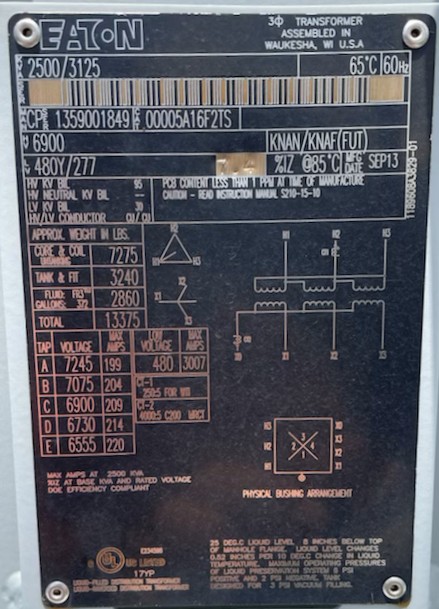

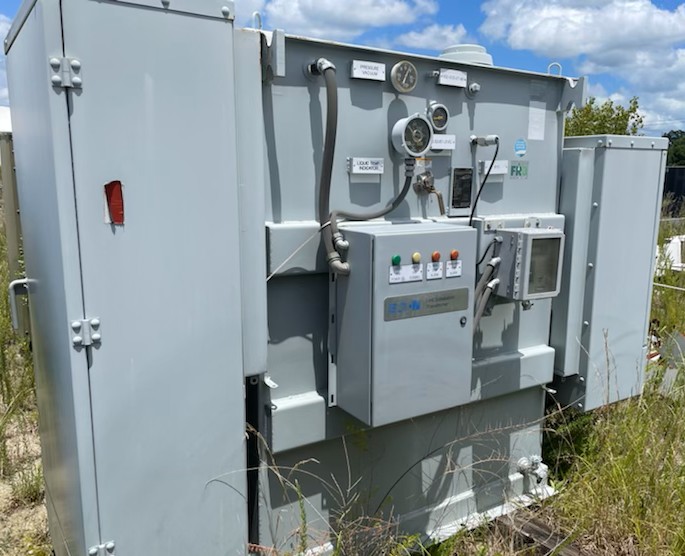

ONE (1) 2500/3125 KVA EATON SUBSTATION TRANSFORMER, CAT. #00005A16F2TS,
3 PHASE, 60 HERTZ, CLASS KNAN/KNAF, 65 DEG. C RISE, 7.4% IMPEDANCE,
COPPER WINDINGS, FR3 FLUID, UL LISTED, MFG. 2013

HIGH VOLTAGE: 6900 DELTA BIL: 95 KV
LOW VOLTAGE: 480Y/277 BIL: 30 KV
TAPS: 7245-7075-6900-6730-6555

TOTAL WEIGHT: 13,375 LBS.
CORE & COILS: 7,275 LBS.
TANK & FIT.: 3,240 LBS.
FR3 FLUID: 2,860 LBS. (372 GALS.)
