7500/10500 KVA, Pri 138000 D, Sec 4160Y/2402, VIRGINIA, 2011, COPPER, UNUSED:1

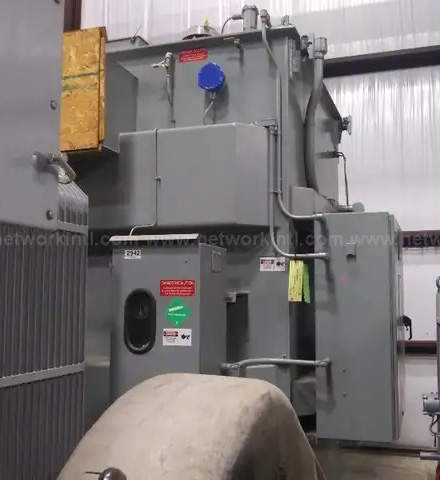

UNUSED SUBSTATION TRANSFORMER
Product Number:
044256
Full Product Description
JVT-3859:

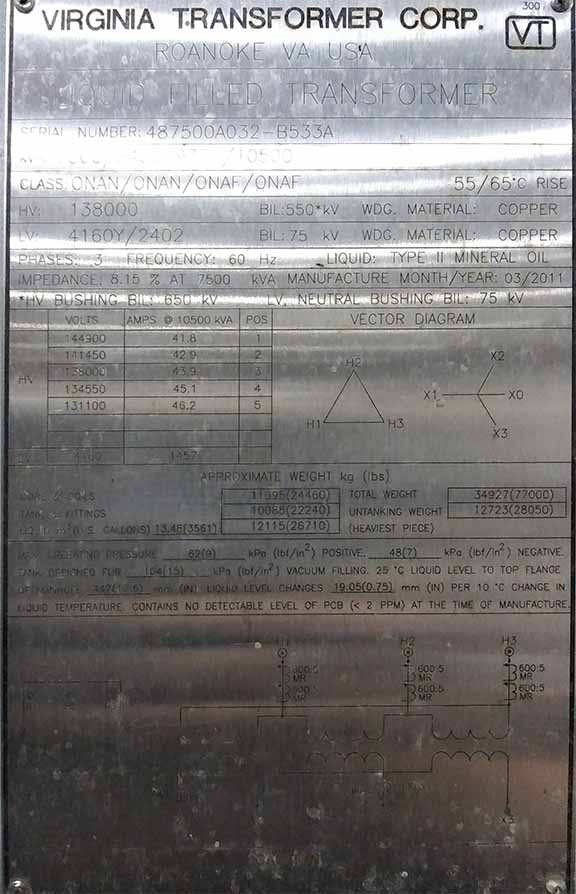

ONE (1) UNUSED 7500/10500 KVA VIRGINIA SUBSTATION TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS ONAN/ONAN/ONAF/ONAF, 55/65 DEGREE C RISE, 8.15%
IMPEDANCE, COPPER WINDINGS, 6 X 600:5 HV MRCT'S, 1 X 1500:5 LV
SRCT, MANUF. 03/2011, S/N 487500A032-B533A
HIGH VOLTAGE: 138000 DELTA BIL: 550 KV
LOW VOLTAGE: 4160Y/2402 BIL: 75 KV
TAPS: 144900-141450-138000-134550-131100
TOTAL WEIGHT: 77,000 LBS.
CORE & COILS: 24,460 LBS.
TANK & FIT.: 22,240 LBS.
OIL: 26,710 LBS. (3,561 GALS.)
DIMENSIONS: 136"H X 153"L X 107"D
ONE (1) UNUSED 7500/10500 KVA VIRGINIA SUBSTATION TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS ONAN/ONAN/ONAF/ONAF, 55/65 DEGREE C RISE, 8.15%
IMPEDANCE, COPPER WINDINGS, 6 X 600:5 HV MRCT'S, 1 X 1500:5 LV
SRCT, MANUF. 03/2011, S/N 487500A032-B533A
HIGH VOLTAGE: 138000 DELTA BIL: 550 KV
LOW VOLTAGE: 4160Y/2402 BIL: 75 KV
TAPS: 144900-141450-138000-134550-131100
TOTAL WEIGHT: 77,000 LBS.
CORE & COILS: 24,460 LBS.
TANK & FIT.: 22,240 LBS.
OIL: 26,710 LBS. (3,561 GALS.)
DIMENSIONS: 136"H X 153"L X 107"D
