  2. 15000/25000 KVA, Pri 115000Y/66395, Sec 12470 D, 2016, GENERAL ELECTRIC

15000/25000 KVA, Pri 115000Y/66395, Sec 12470 D, 2016, GENERAL ELECTRIC

https://belyeapower.redstormlabs.com/web/image/product.template/33816/image_1920?unique=632d99c

GENERATOR STEP-UP TRANSFORMER

$ 0.00 0.0 USD $ 0.00

$ 0.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Product Number: 044211
    Request Quote

    Full Product Description

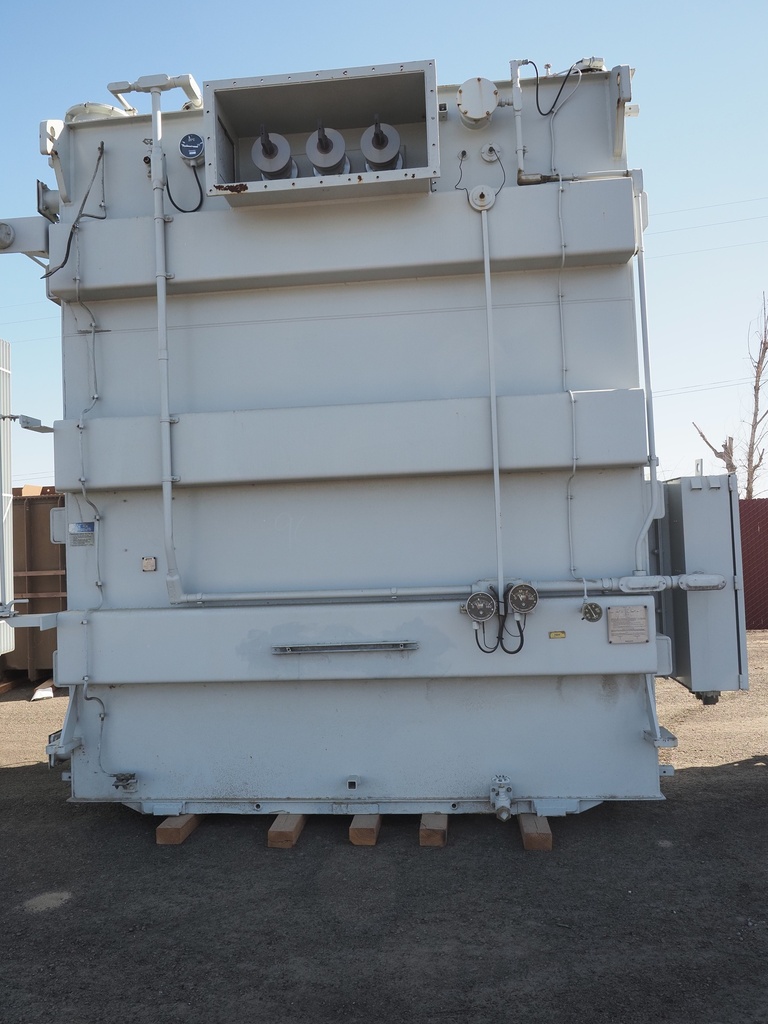

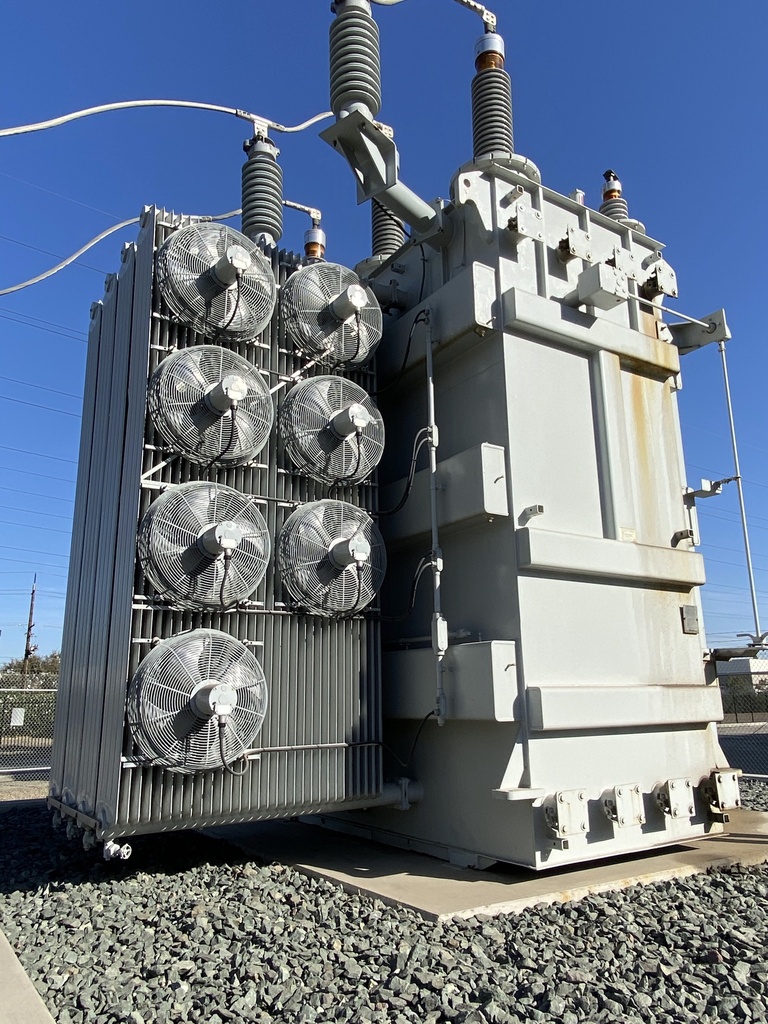

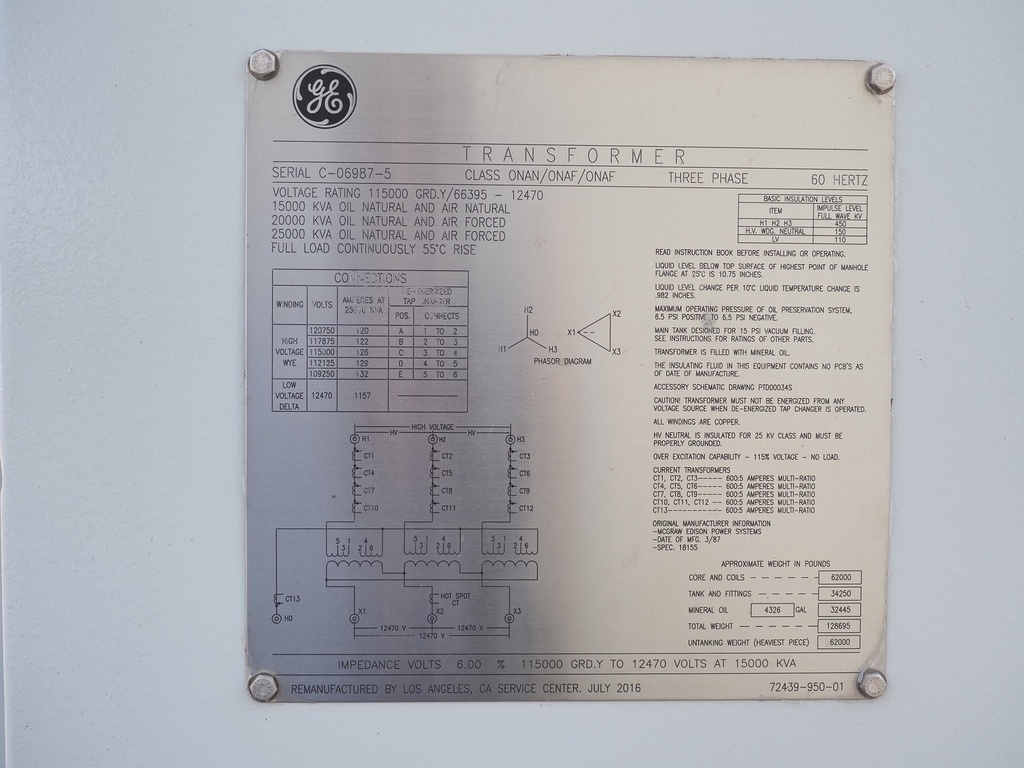

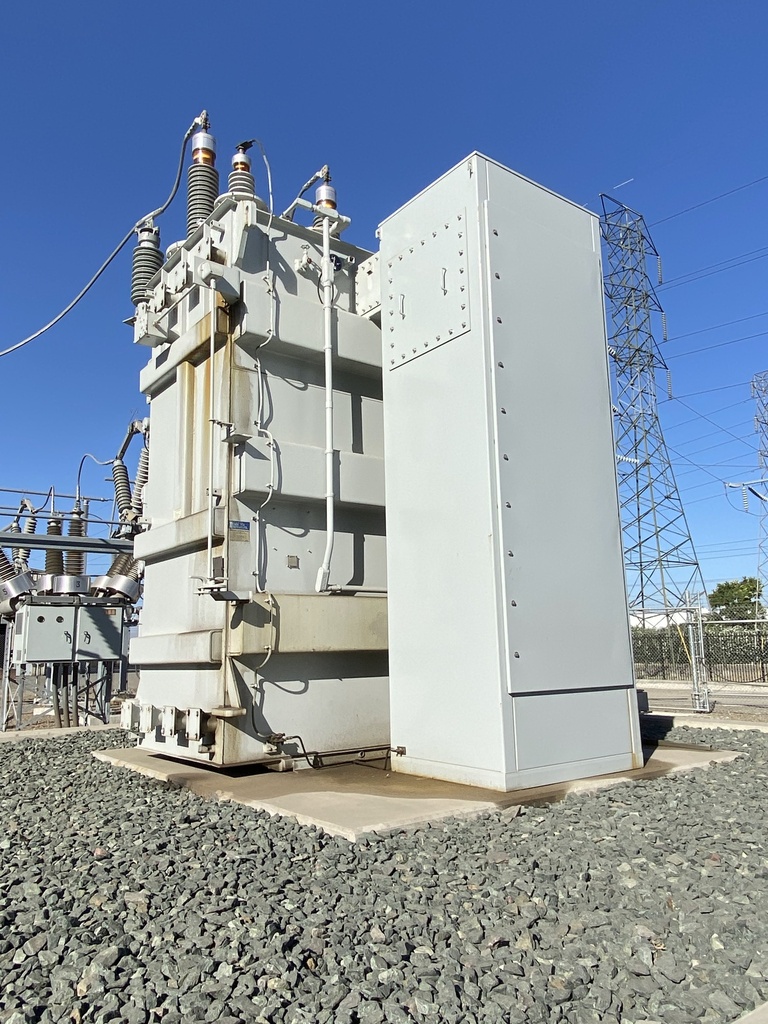

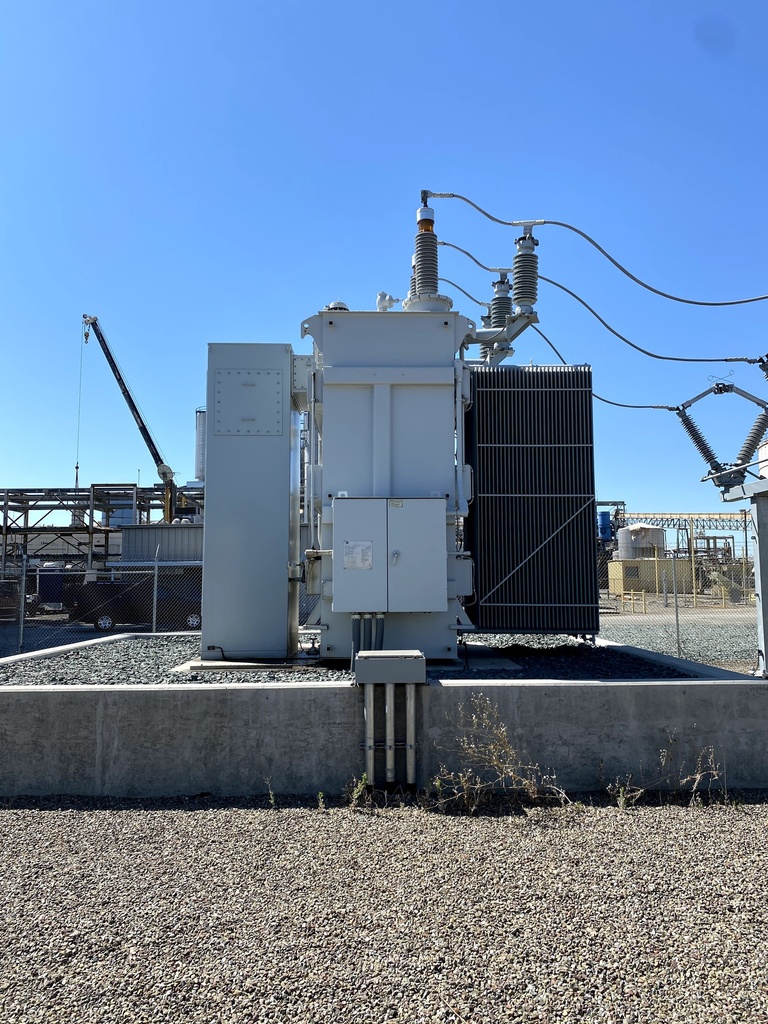

    ONE (1) 15/20/25 MVA GENERAL ELECTRIC GENERATOR STEP-UP TRANSFORMER, 3 PHASE,
    60 HERTZ, CLASS ONAN/ONAF/ONAF, 55 DEG. C RISE, 6.0% IMPEDANCE, COPPER
    WINDINGS, 12 X 600:6 HV MRCT'S, 1 X 600:5 HV NEUTRAL MRCT, TOP X SIDE
    BUSHINGS

    HIGH VOLTAGE: 115000GRDY/66395 BIL: 450 KV
    LOW VOLTAGE: 12470 DELTA BIL: 150 KV
    TAPS: 120750-117875-115000-112125-109250

    TOTAL WEIGHT: 128,695 LBS.
    CORE & COILS: 62,000 LBS.
    TANK & FIT.: 34,250 LBS.
    OIL: 32,445 LBS. (4,326 GALS.)
