10000/14000 KVA, Pri 34500 D, Sec 13800Y/7970, ABB, ALUMINUM

T-5966:

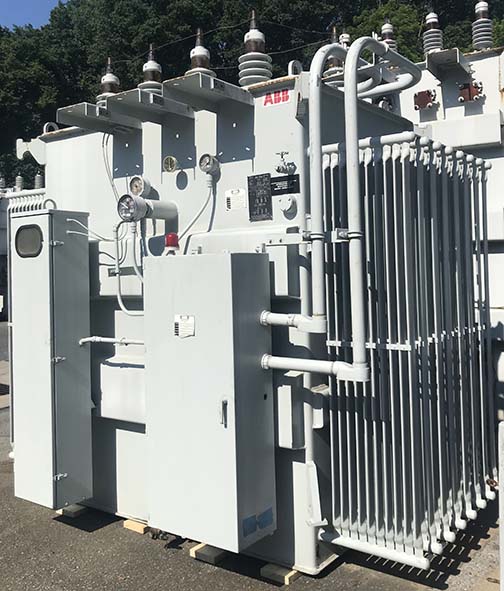

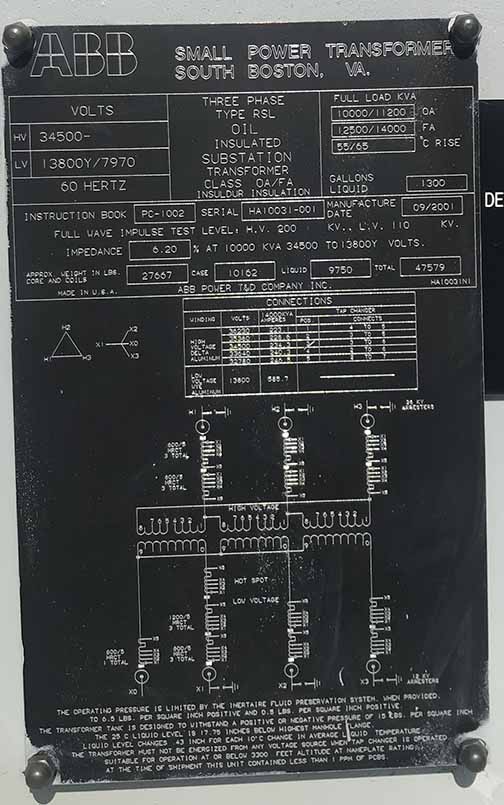

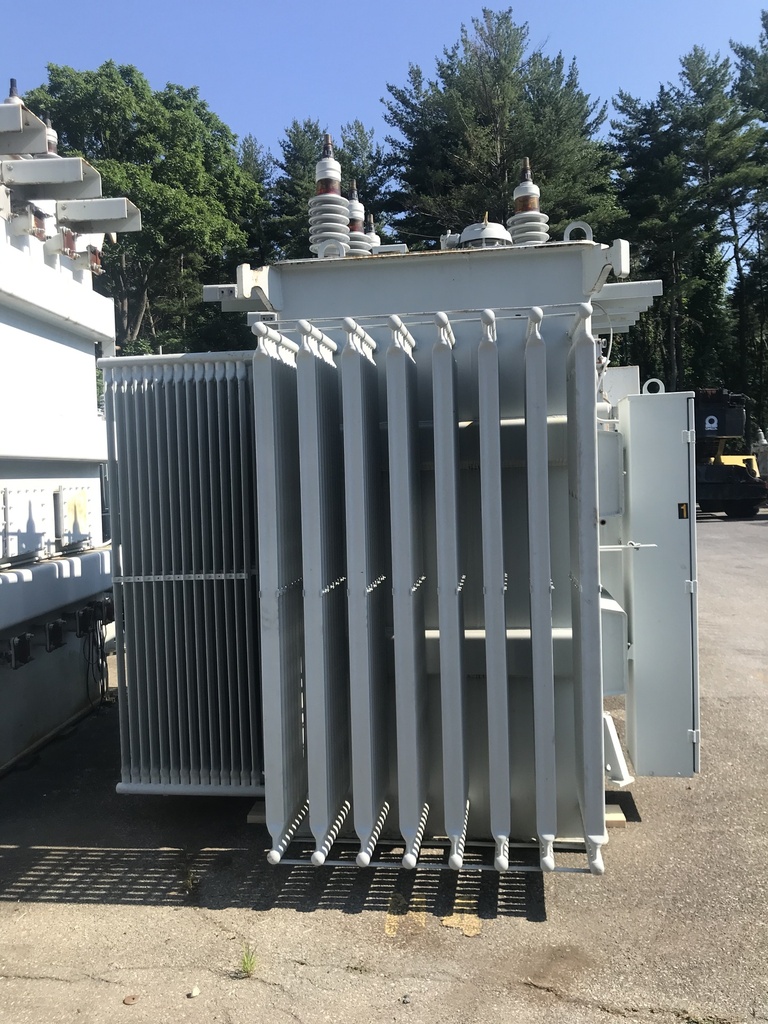

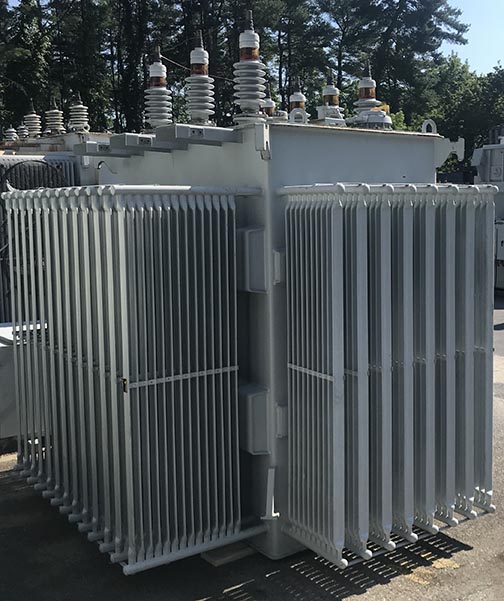

ONE (1) 10000/11200/12500/14000 KVA ABB SUBSTATION TRANSFORMER, TYPE RSL,
3 PHASE, 60 HERTZ, CLASS OA/FA, 55/65 DEG. C RISE, 6.20% IMPEDANCE,
ALUMINUM WINDINGS, 6 X 600:5 HV MRCT'S, 3 X 1200:5 LV MRCT'S, 3 X
600:5 LV MRCT'S, 1 X 600:5 LV NEUTRAL MRCT, LIQUID TEMPERATURE GAUGE
WITH CONTACTS, MAGNETIC LIQUID LEVEL GAUGE WITH CONTACTS, VACUUM
PRESSURE GAUGE, RAPID PRESSURE RISE RELAY, DRAIN & SAMPLE VALVE,

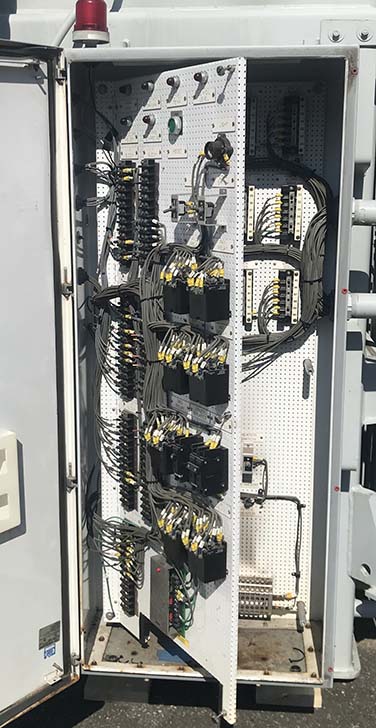

CONTROL CABINET, NITROGEN CYLINDER, INSTRUCTION BOOK PC-1002, MFG.
2001

HIGH VOLTAGE: 34500 DELTA BIL: 200 KV
LOW VOLTAGE: 13800Y/7970 BIL: 110 KV
TAPS: 36230-35360-34500-33640-32780

TOTAL WEIGHT: 47,579 LBS.
CORE & COILS: 27,667 LBS.
TANK & FIT.: 10,162 LBS.
OIL: 9,750 LBS. (1,300 GALS.)
DIMENSIONS: 132.7"H X 111.3"W X 138.1"L
SHIPPING: 125.5"H X 111.3"W X 138.1"L
