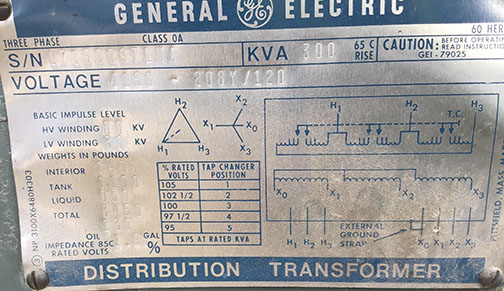

300 KVA, Pri 4160 D, Sec 208Y/120, GENERAL ELECTRIC
PADMOUNT TRANSFORMER
Product Number:
044180
Full Product Description
JVT-3845:
ONE (1) 300 KVA GENERAL ELECTRIC COMPARTMENTALIZED PADMOUNT TRANSFORMER,
3 PHASE, 60 HERTZ, CLASS OA, 65 DEG. C RISE, 1.98% IMPEDANCE,
S/N L715909TLMA
HIGH VOLTAGE: 4160 DELTA BIL: 60 KV
LOW VOLTAGE: 208Y/120 BIL: 30 KV
TAPS: 4368-4264-4160-4056-3952
TOTAL WEIGHT: 3,450 LBS.
CORE & COILS: 1,400 LBS.
TANK & FIT.: 1,100 LBS.
OIL: 950 LBS. (130 GALS.)
