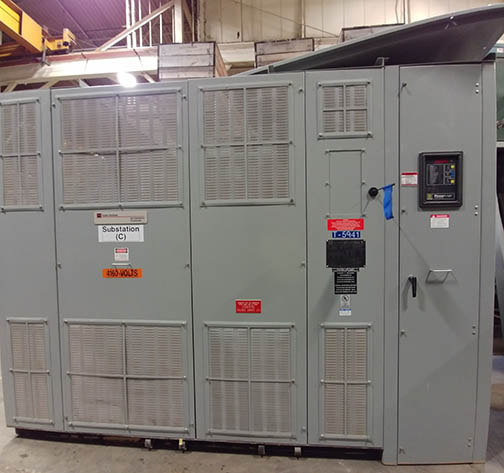

2000/2300 KVA, Pri 4160 D, Sec 480Y/277, 2003, CUTLER-HAMMER, INDOOR, COPPER:1
DRY TYPE TRANSFORMER
Product Number:
044155
Full Product Description
T-5940:

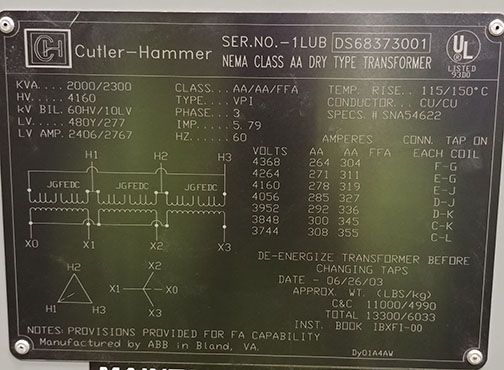

ONE (1) 2000/2300 KVA CUTLER-HAMMER INDOOR DRY TYPE TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS AA/AA/FFA, 115/150 DEG. C RISE, 5.79% IMPEDANCE,
COPPER WINDINGS, TYPE VPI, INST. BOOK IBXFI-00, U LISTED 93D0, MFG.
2003, S/N 1LUB DS68373001, SURGE ARRESTERS, HV RIGHT, LV LEFT.
HIGH VOLTAGE: 4160 DELTA BIL: 60 KV
LOW VOLTAGE: 480Y/277 BIL: 10 KV
TAPS: 4368-4264-4160-4056-3952-3848-3744
TOTAL WEIGHT: 13,300 LBS.

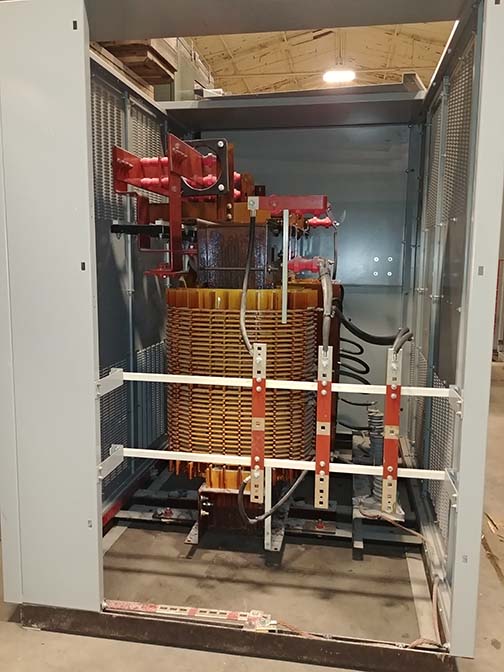

CORE & COILS: 11,000 LBS.
DIMENSIONS: 89.5"H X 119.75"L X 89.5"D
CORE & COILS: 75"H X 75"W X 56"D
