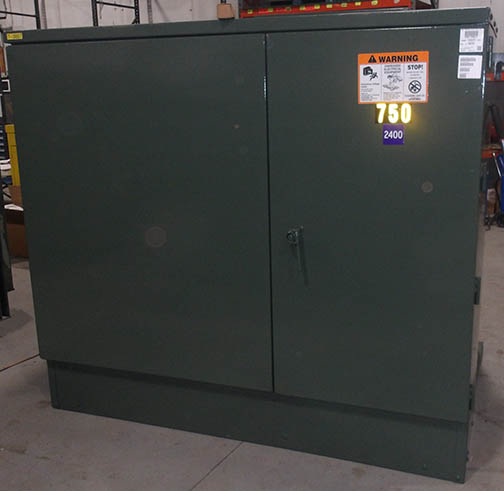

750 KVA, Pri 22900 D, Sec 2400 D, HOWARD, LIVE/RADIAL, ALUMINUM

JVT-3857

ONE (1) 750 KVA HOWARD COMPARTMENTALIZED PADMOUNT TRANSFORMER, 3 PHASE,

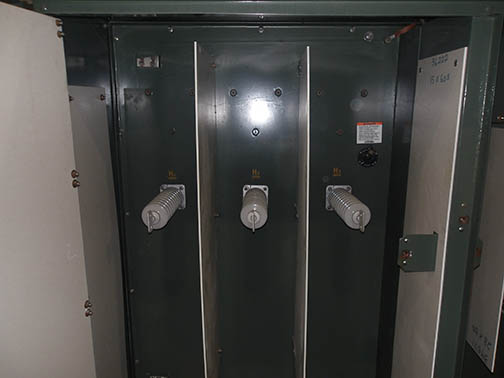

60 HERTZ, CLASS ONAN, 65 DEG. C RISE, 5.3% IMPEDANCE, LIVE FRONT,
RADIAL FEED, ALUMINUM WINDINGS, 200:5 CT, 20:1 VT, PRESSURE RELIEF
VALVE, LIQUID LEVEL GAUGE, TEMPERATURE CONTROL VALVE, DRAIN & SAMPLE

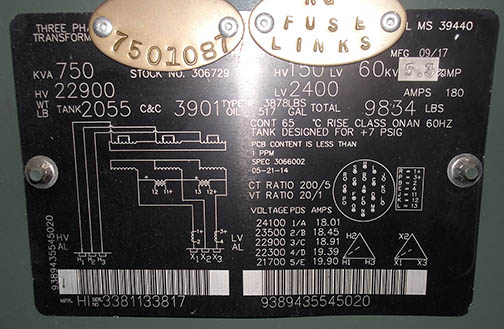

VALVE, MFG. 2017, S/N 3381133817

HIGH VOLTAGE: 22900 DELTA BIL: 125 KV
LOW VOLTAGE: 2400 DELTA BIL: 60 KV
TAPS: 24100-23500-22900-22300-21700

TOTAL WEIGHT: 9,834 LBS.
CORE & COILS: 3,901 LBS.
TANK & FIT.: 2,055 LBS.
OIL: 3,878 LBS. (517 GALS.)
DIMENSIONS: 75"H X 84"W X 70"D
