  2. 24/32/40 MVA, Pri 138000 D, Sec 13800Y/7970, General Electric Transformer

24/32/40 MVA, Pri 138000 D, Sec 13800Y/7970, General Electric Transformer

https://belyeapower.redstormlabs.com/web/image/product.template/33749/image_1920?unique=632d99c

SUBSTATION TRANSFORMER

$ 0.00 0.0 USD $ 0.00

$ 0.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Product Number: 044144
    Request Quote

    Full Product Description


    JVT-3858

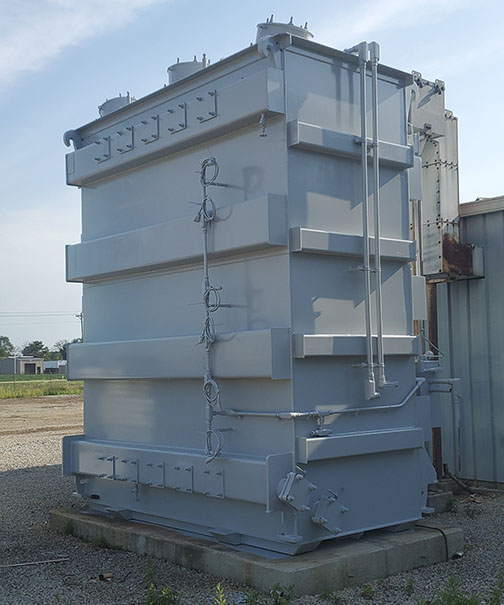

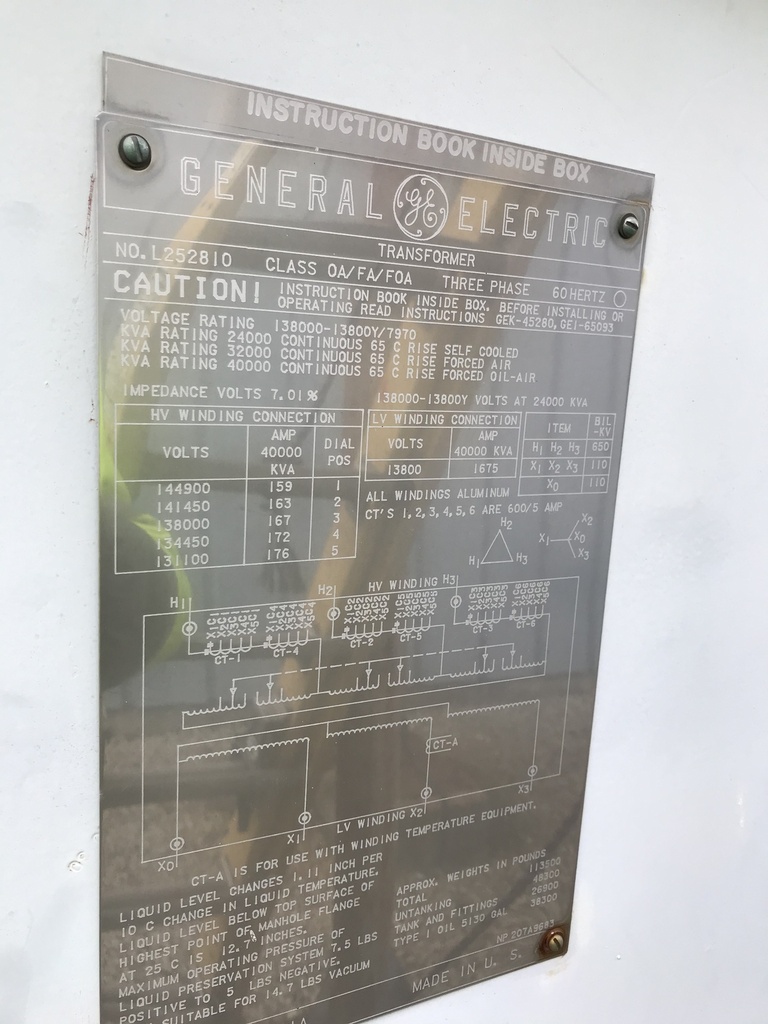

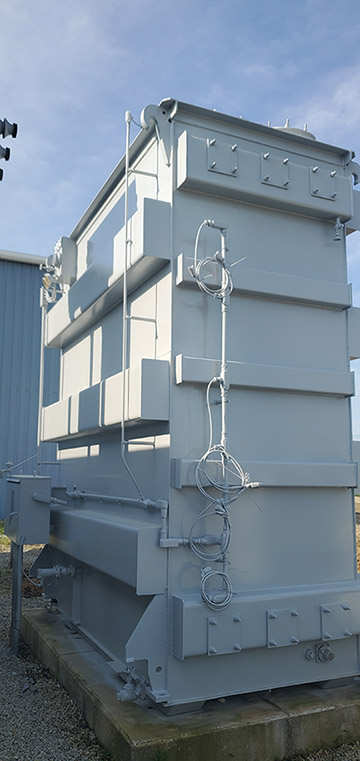

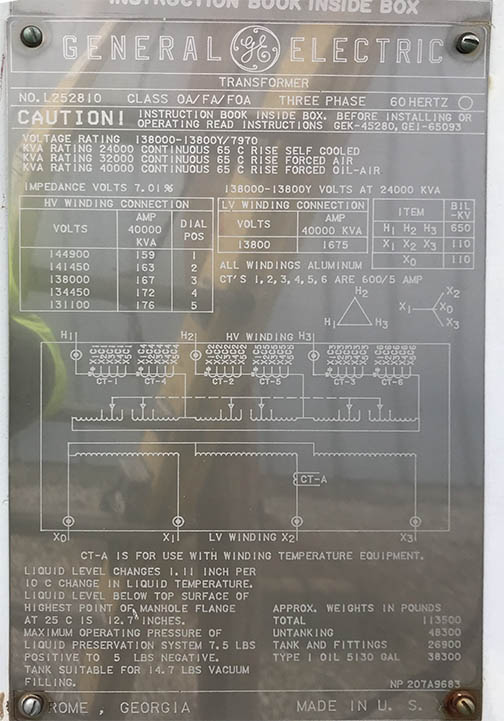

    ONE (1) 24/32/40 MVA GENERAL ELECTRIC SUBSTATION TRANSFORMER
    THREE PHASE, 60 HERTZ, CLASS OA/FA/FOA
    IMPEDANCE 7.01%, 65 C RISE, ALUMINUM WINDINGS
    TOP-TOP BUSHINGS, WINDING TEMPERATURE GAUGE, CT's 600:5 RATIO
    DRAIN & SAMPLE VALVE, LIQUID LEVEL GAUGE, LIQUID TEMPERATURE GAUGE


    HV: 138000 DELTA BIL: 650 kV
    LV: 13800 WYE BIL: 110 kV
    HV Taps: 144900-141450-138000-134450-13110

    TANK & FITT.: 26900 LBS.
    CORE & COILS: 48300 LBS.
    LIQUID-OIL: 38300 LBS. (5130 GALS.)
    TOTAL WEIGH 113500 LBS.

    OVERALL DIMENSIONS: 254"H X 214"W X 180"D
    SHIPPING DIMENSIONS: 175"H X 166"W X 102"D
    SHIPPING WEIGHT: 65,000 LBS
