2000/2800 KVA, Pri 67000 D, Sec 12470Y/7200, DELTA STAR, COPPER

9/15/2022
JVT-3841:

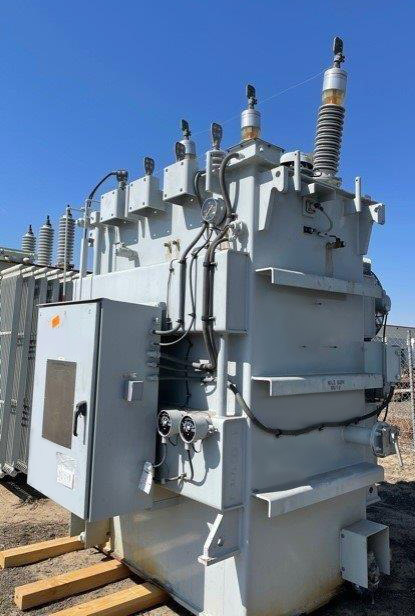

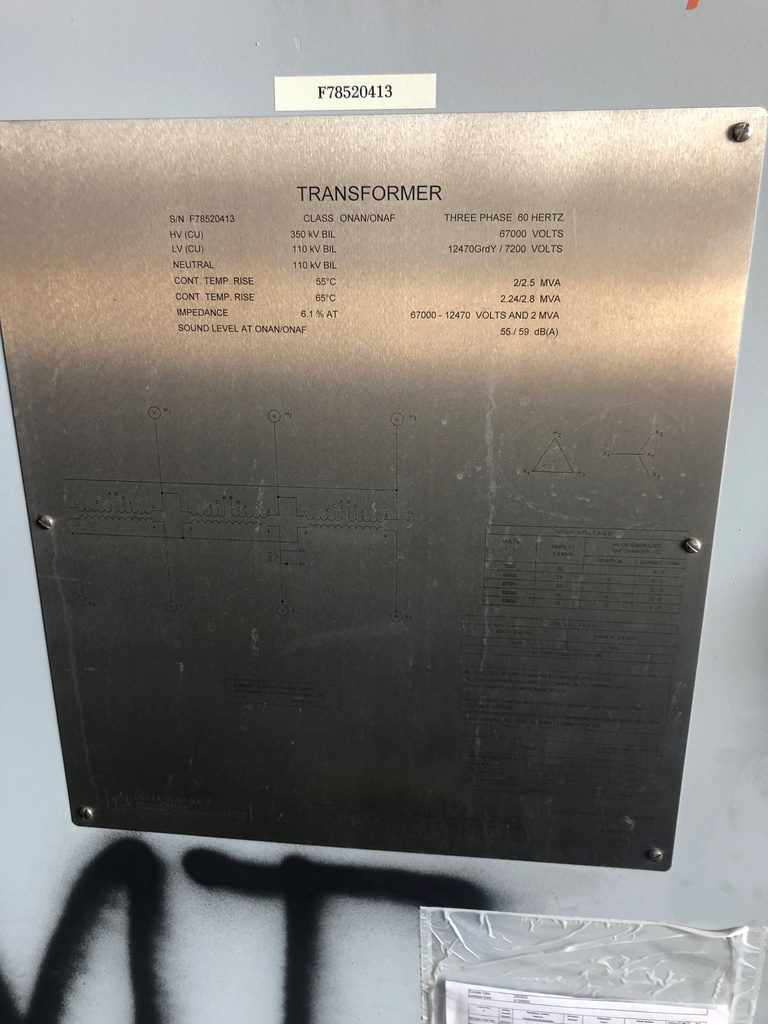

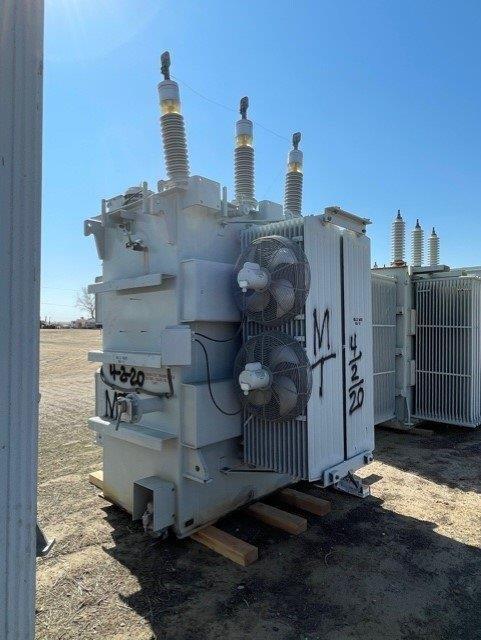

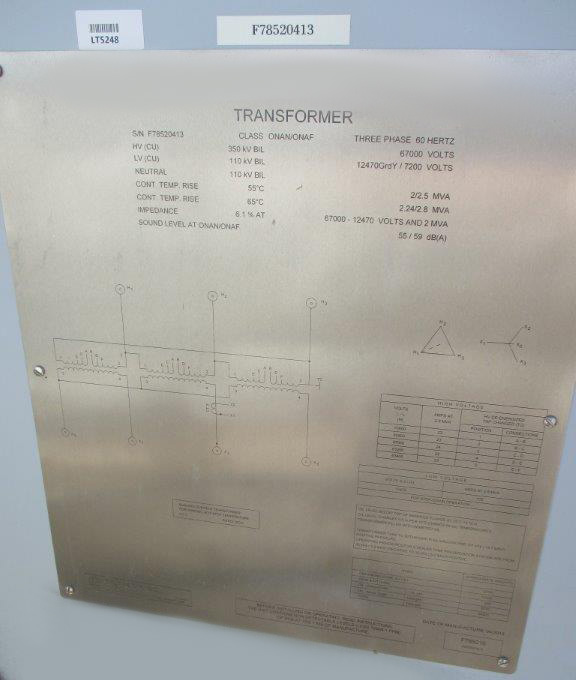

ONE (1) 2000/2240/2500/2800 KVA DELTA STAR SUBSTATION TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS ONAN/ONAF, 55/65 DEG. C RISE, 6.1% IMPEDANCE, COPPER
WINDINGS, DRAIN & SAMPLE VALVE, VACUUM PRESSURE GAUGE, LIQUID LEVEL
GAUGE, LIQUID TEMPERATURE GAUGE, WINDING TEMPERATURE GAUGE, TOP X
TOP BUSHINGS, MFG. 2013, S/N F78520413

HIGH VOLTAGE: 67000 DELTA BIL: 350 KV
LOW VOLTAGE: 12470GRDY/7200 BIL: 110 KV
NEUTRAL: BIL: 110 KV
TAPS: 70600-68800-67000-65200-63400

TOTAL WEIGHT: 34,500 LBS.
CORE & COILS: 12,000 LBS.
TANK & FIT.: 12,300 LBS.
OIL: 9,750 LBS. (1,300 GALS.)
RADIATOR OIL: 450 LBS. (60 GALS.)

114"x 124"x 157"
Rads, HV bushings and LV spades removed, 87" X 124" X 122" ht
