10/11.2/12.5/14 MVA, Pri 34400 D, Sec 12470Y/7200, DELTA STAR
SUBSTATION TRANSFORMER
Product Number:
044105
Full Product Description
JVT-3842

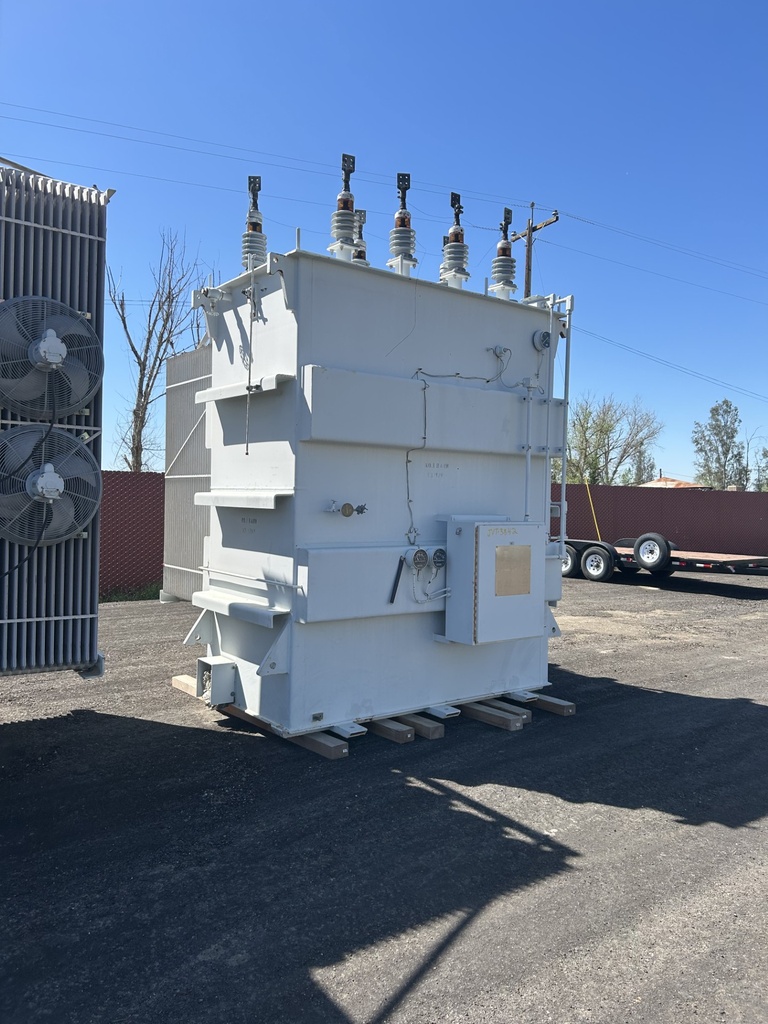

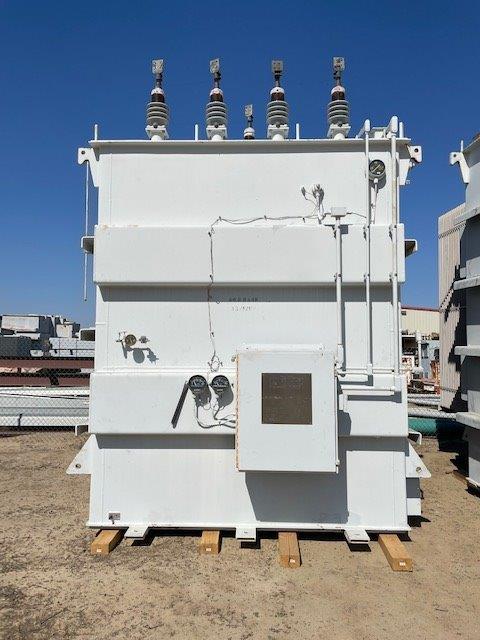

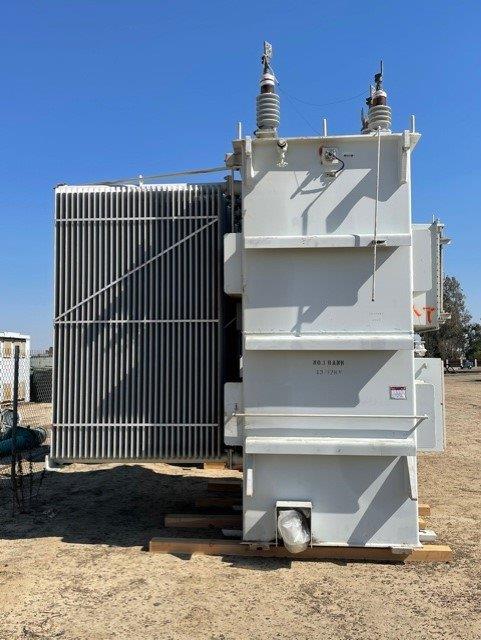

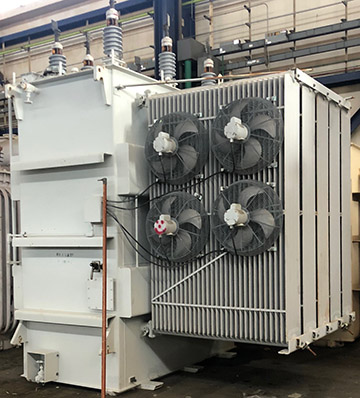

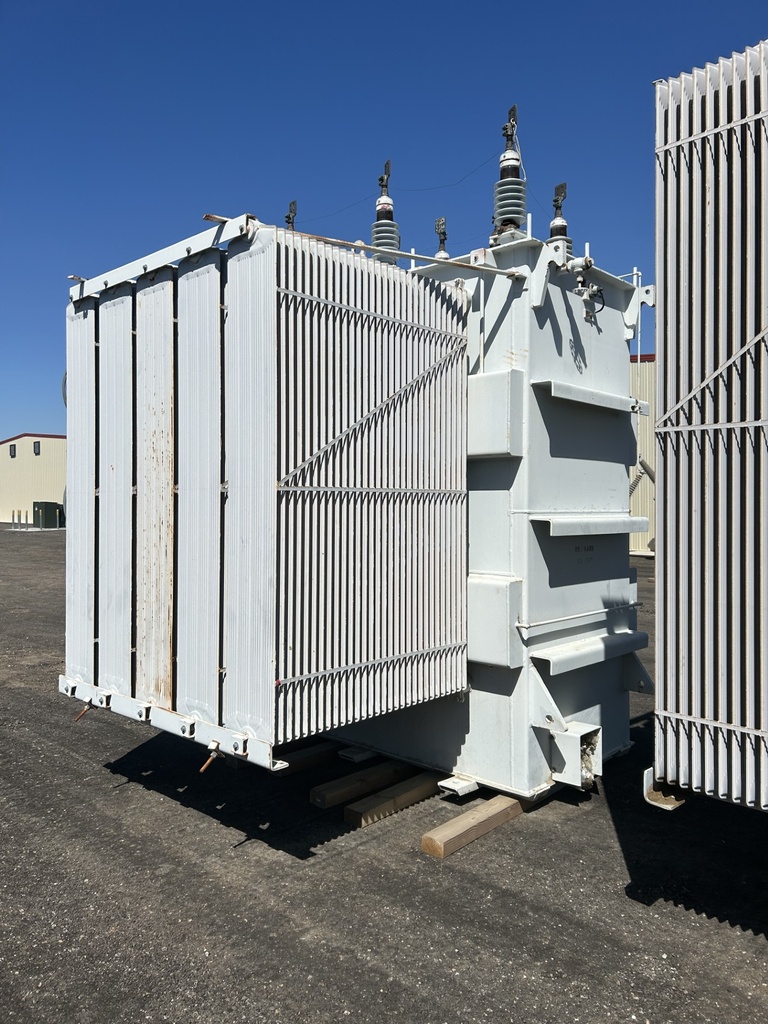

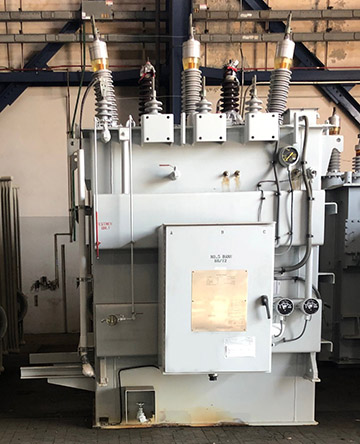

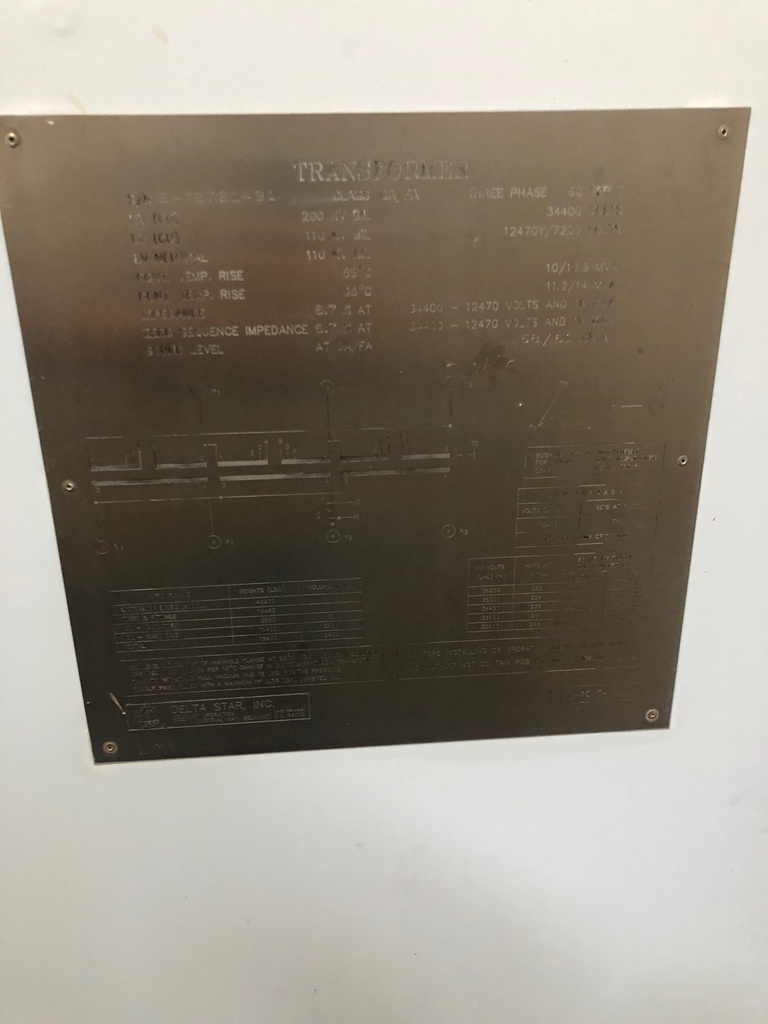

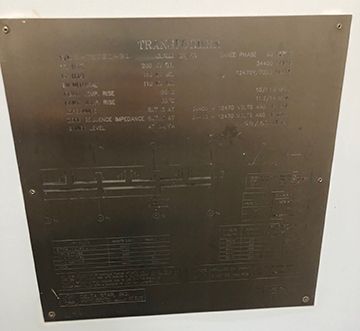

ONE (1) 10/11.2/12.5/14 MVA DELTA STAR SUBSTATION TRANSFORMER
CLASS OA/FA, THREE PHASE, 60 HERTZ, 55/65 DEG. C RISE
TOP/TOP BUSHINGS, COPPER WINDINGS, LIQUID LEVEL GAUGE,
TEMPERATURE WINDING GAUGE, VACUUM PRESSURE GAUGE
DRAIN AND SAMPLE VALVE, IMPEDANCE 6.7%
HV: 34400 DELTA BIL: 200KV
LV: 12470Y/7200 BIL: 110KV
LOW VOTAGE NEUTRAL BIL: 110KV
TAPS: 36200-35300-34400-33500-32600
CORE AND COIL: 40900 LBS.
TANK AND FITTINGS: 19450 LBS.
OIL-RADIATORS: 2650 LBS. (350 GALS.)
OIL - MAIN TANK: 15400 LBS. (2050 GALS.)
TOTAL WEIGHT: 78400 LBS. (2400 GALS.)
S/N: E-75720491
DIMENSIONS: 123” X 84” X 160”H
