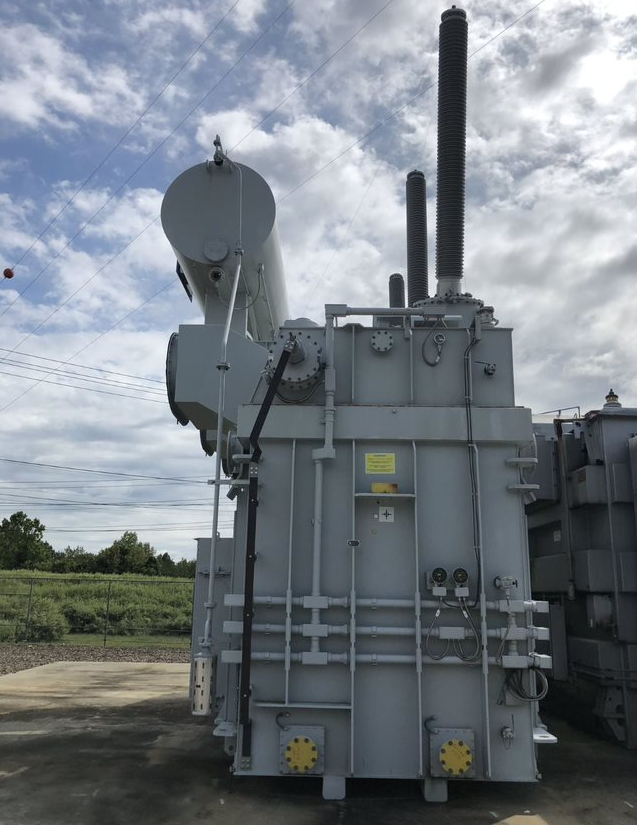

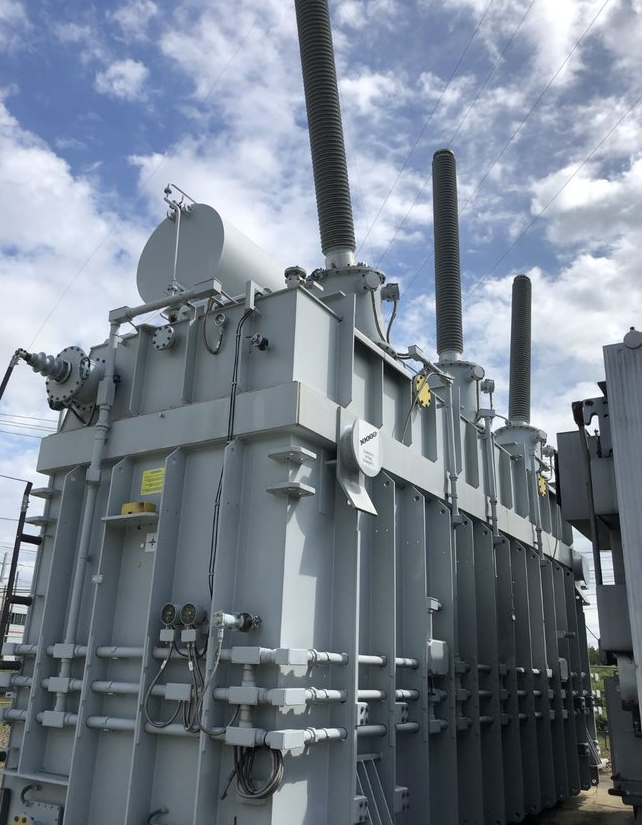

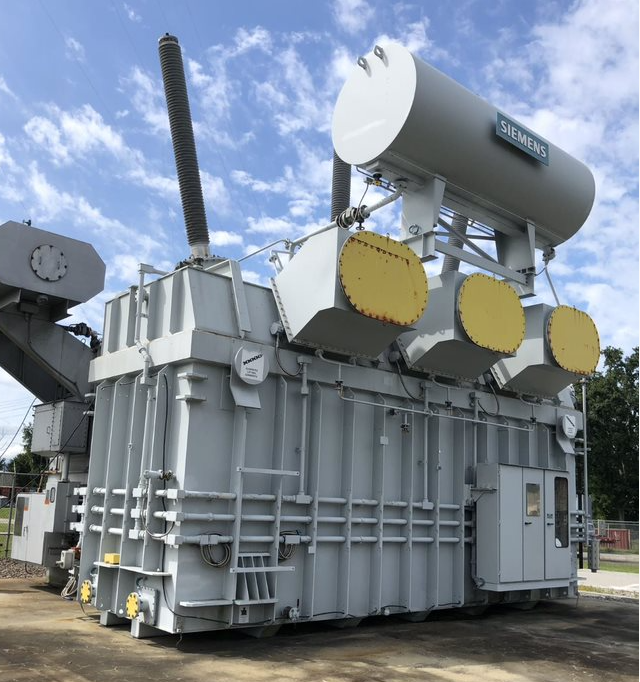

337200/629000 KVA, Pri 345000 Y, Sec 20300 D, 2009, SIEMENS, COPPER:1

ONE (1) 337200/449600/562000/629000 KVA SIEMENS GENERATOR STEP-UP TRANSFORMER,
3 PHASE, 60 HERTZ, CLASS ONAN/ONAF/ODAF/ODAF, 55/65/80 DEG. C RISE,
16.88%/17.05%/17.45% IMPEDANCE, COPPER WINDINGS, 9 X 2000:5 HV MRCT'S
C800, 6 X 10000:2.5 LV MRCT'S C800, CONSERVATOR, MFG. 2009

HIGH VOLTAGE: 345000 WYE BIL: 1050 KV
LOW VOLTAGE: 20300 DELTA BIL: 110 KV
TAPS: 362250-353625-345000-336375-327750

TOTAL WEIGHT: 798,072 LBS.
CORE & COILS: 509,267 LBS.
TANK & FIT.: 142,198 LBS.
FLUID: 146,607 LBS. (19,787 GALS.)
SHIPPING: 566,587 LBS.
